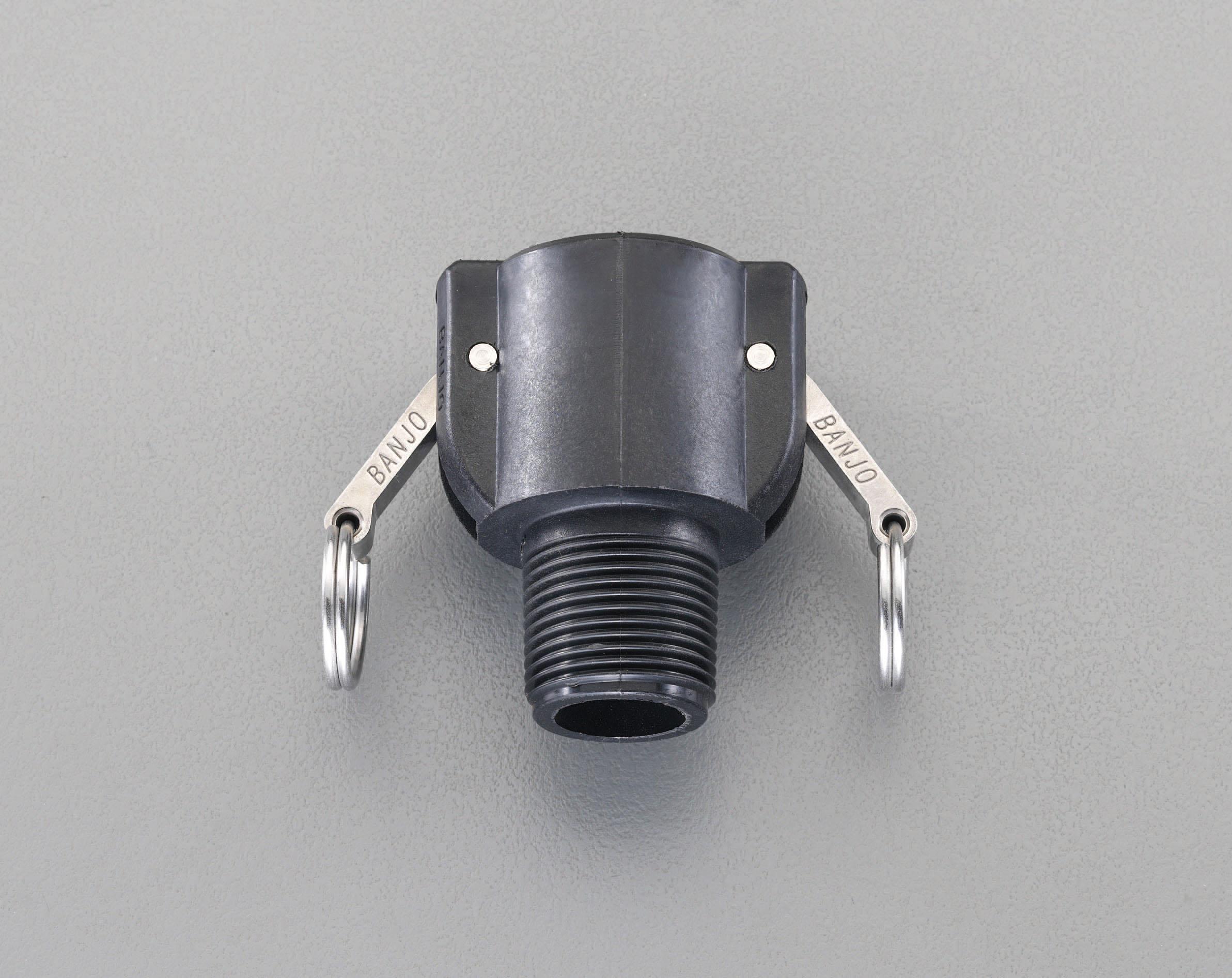

3/4" Male Thread Coupling (Polypropylene)
JAN
4548745813524
ASIN
B00AXUKOJ4
Maker
Model No.
EA462BR-6
Color
Size
M: 3/4B, A: 95, B: 64, φC: 33, φF: 17,
Description
ESCO Coupling EA462B
Material: Polypropylene
Pressure Rating: 0.69MPa (7kgf/cm2)
Nominal Diameter: 20 (3/4”)
Thread Size: PT3/4”
Dimensions (mm): M: 3/4B, A: 95, B: 64, Diameter C: 33, Diameter F: 17, h2: 23, H:57
Weight:70g
Brand Name: Esco
Pressure Rating: 0.69MPa (7kgf/cm²)
Thread Size: PT3/4"
Size (mm): M: 3/4B, A: 95, B: 64, Diameter C: 33, Diameter F: 17, h2: 23, H: 57
Weight: 70g
4548745813524
“3/4” Male Thread Coupling (Polypropylene)
(text created at , 2025-05-11)
Material: Polypropylene
Pressure Rating: 0.69MPa (7kgf/cm2)
Nominal Diameter: 20 (3/4”)
Thread Size: PT3/4”
Dimensions (mm): M: 3/4B, A: 95, B: 64, Diameter C: 33, Diameter F: 17, h2: 23, H:57
Weight:70g
Brand Name: Esco
Pressure Rating: 0.69MPa (7kgf/cm²)
Thread Size: PT3/4"
Size (mm): M: 3/4B, A: 95, B: 64, Diameter C: 33, Diameter F: 17, h2: 23, H: 57
Weight: 70g
4548745813524
“3/4” Male Thread Coupling (Polypropylene)
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
4,155 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
