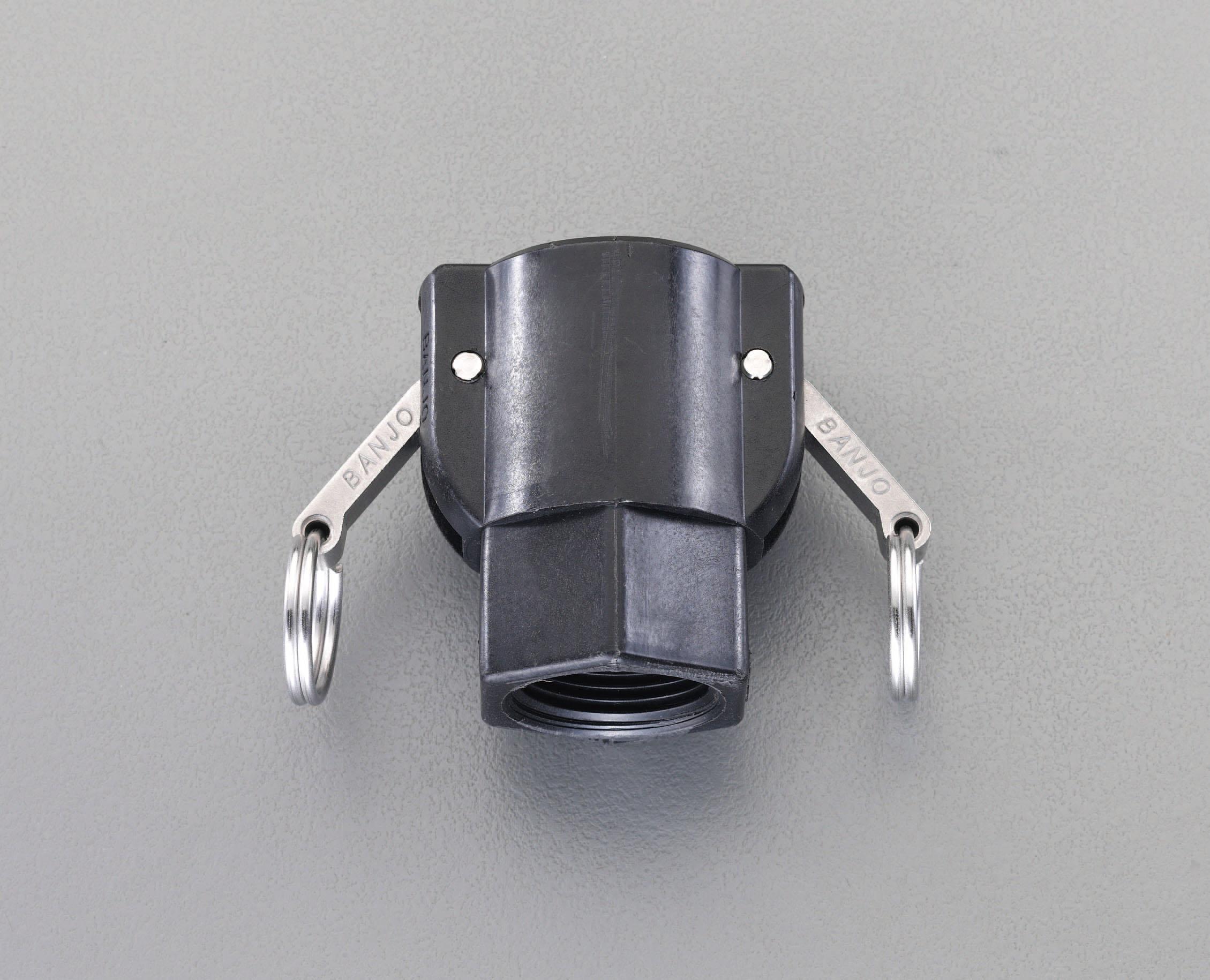

1-1/4" Female Thread Coupling (Polypropylene)
JAN
4548745814897
ASIN
B00AXUKNQS
Maker
Model No.
EA462BP-12
Color
Size
M: 1-1/4B, A: 175, B: 82, φC: 46, φF: 32, K: 52, h: 50, H: 72
Description
Esco Coupling EA462B
Material: Polypropylene
Working Pressure: 0.69MPa (7kgf/cm2)
Nominal Diameter: 32 (1-1/4“)
Thread Size: PT 1-1/4”
Dimensions (mm): M: 1-1/4B, A: 175, B: 82, Diameter C: 46, Diameter F: 32, K: 52, h: 50, H: 72
Weight: 240g
Brand Name: Esco
Pressure Rating: 0.69MPa (7kgf/cm²)
Nominal Diameter: 32 (1-1/4")
Thread Size: PT 1-1/4"
Size (mm): M: 1-1/4B, A: 175, B: 82, Diameter C: 46, Diameter F: 32, K: 52, h: 50, H: 72
4548745814897
“1-1/4” Female Thread Coupling (Polypropylene)
(text created at , 2025-05-12)
Material: Polypropylene
Working Pressure: 0.69MPa (7kgf/cm2)
Nominal Diameter: 32 (1-1/4“)
Thread Size: PT 1-1/4”
Dimensions (mm): M: 1-1/4B, A: 175, B: 82, Diameter C: 46, Diameter F: 32, K: 52, h: 50, H: 72
Weight: 240g
Brand Name: Esco
Pressure Rating: 0.69MPa (7kgf/cm²)
Nominal Diameter: 32 (1-1/4")
Thread Size: PT 1-1/4"
Size (mm): M: 1-1/4B, A: 175, B: 82, Diameter C: 46, Diameter F: 32, K: 52, h: 50, H: 72
4548745814897
“1-1/4” Female Thread Coupling (Polypropylene)
(text created at , 2025-05-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
5,195 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
