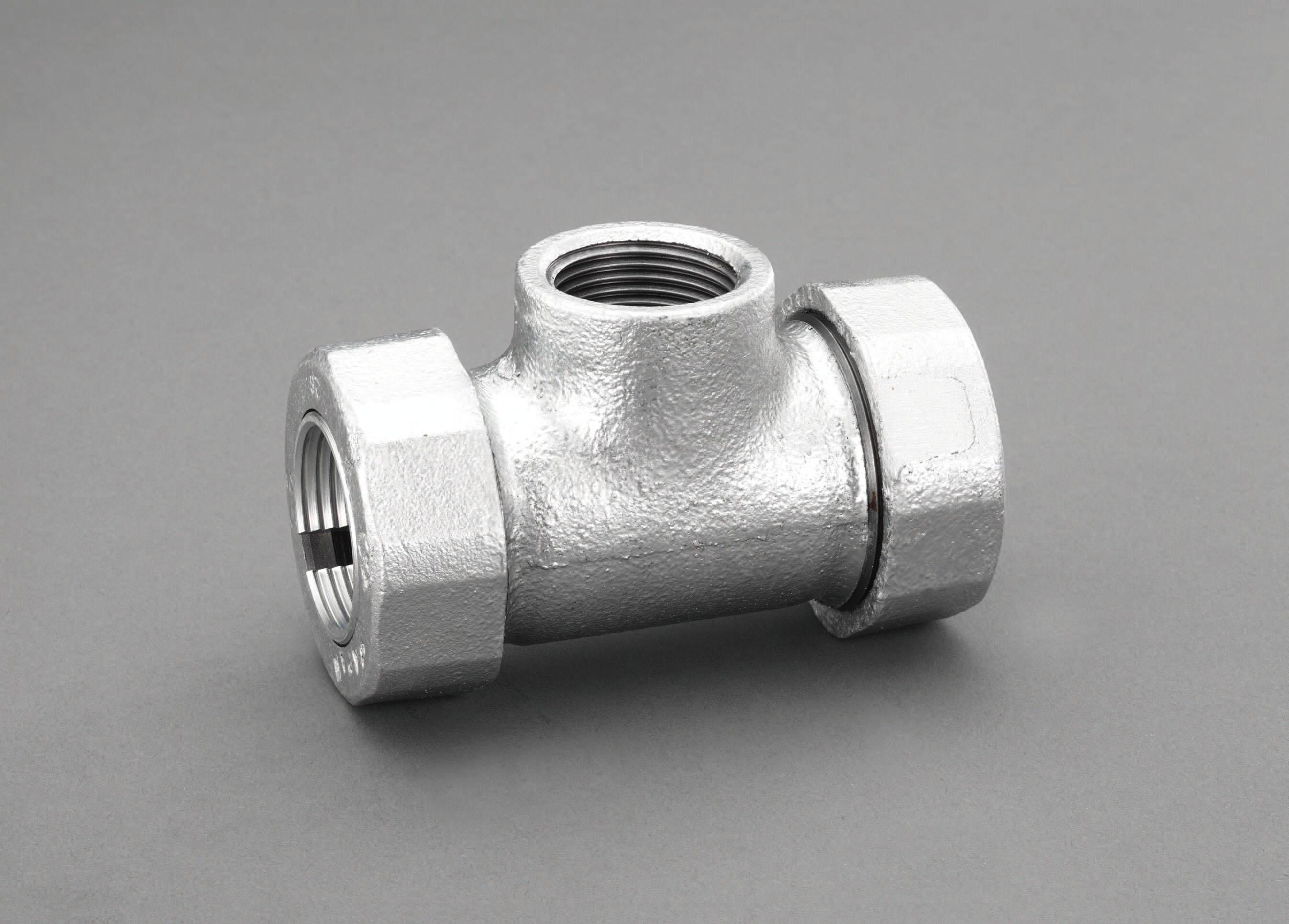

40AxRc1·1/2" Female Thread Tee (Mechanical Fitting for 3 Pipe Types)
JAN
4548745823127
ASIN
B00AXUKQ42
Maker
Model No.
EA469HG-40
Color
Size
B: 50mm, X: 55mm, A: 65.5mm
Description
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Rated Current: 40A
Screw Size (D): Rc(PT) 1-1/2
Nut Face-to-Face Width: 76mm
Nut Height: 24mm
Face-to-Face/Center-to-Center Dimensions: B: 50mm, X: 55mm, A: 65.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1474g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
4548745823127
“40AxRc1･1／2” “Female Thread Tee (Mechanical Fitting for 3 Pipe Types)”
(text created at , 2025-05-10)
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Rated Current: 40A
Screw Size (D): Rc(PT) 1-1/2
Nut Face-to-Face Width: 76mm
Nut Height: 24mm
Face-to-Face/Center-to-Center Dimensions: B: 50mm, X: 55mm, A: 65.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1474g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
4548745823127
“40AxRc1･1／2” “Female Thread Tee (Mechanical Fitting for 3 Pipe Types)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
8,176 JPY (Including Tax)
