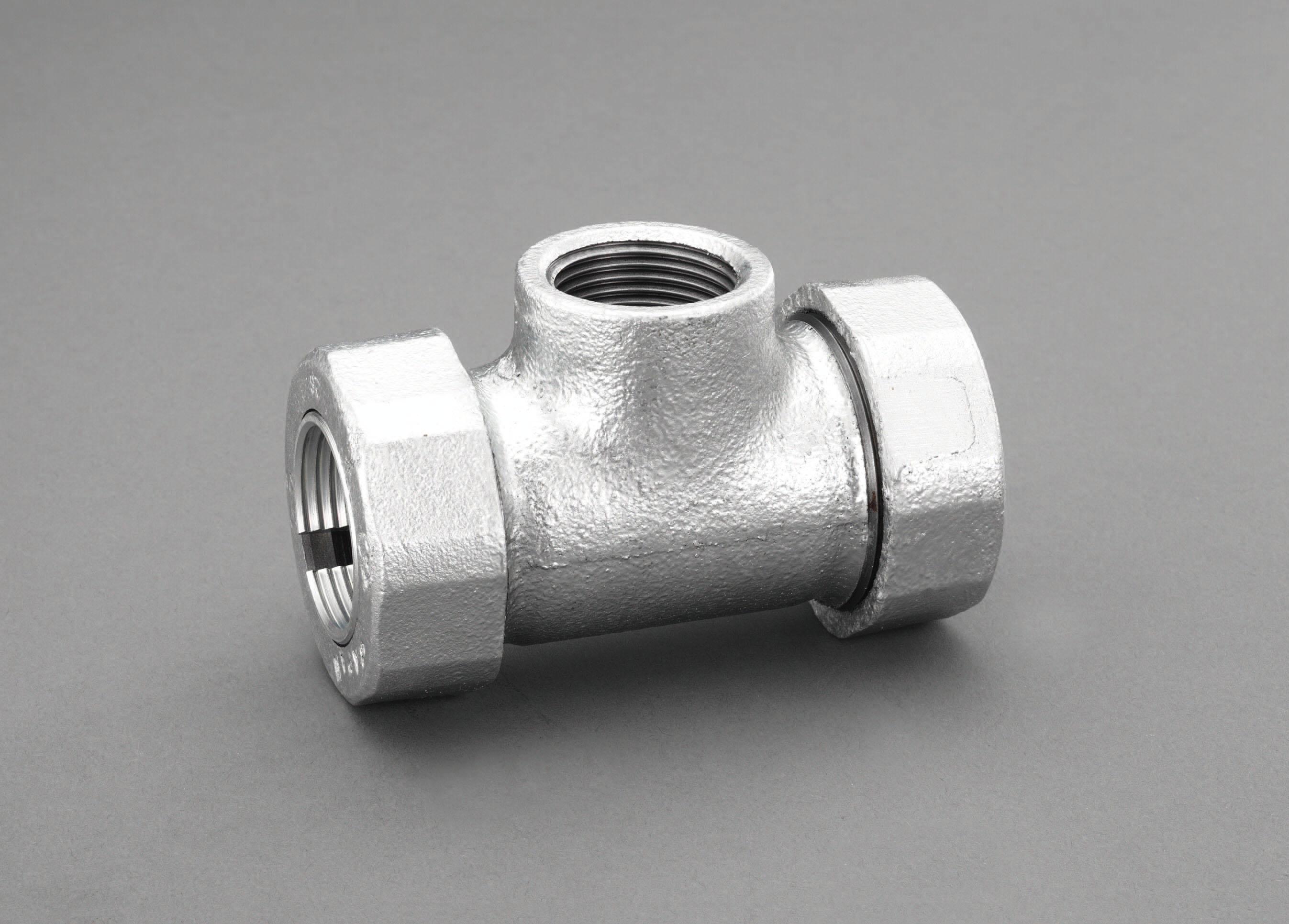

ESCO 50AxRc2" Female Thread Cheese (Mechanical Fitting for 3 Pipe Types) EA469HG-50
JAN
4548745823134
ASIN
B00AXUKQ6U
Maker
Model No.
EA469HG-50
Color
Size
B: 60mm, X: 60mm, A: 70.5mm
Description
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Rated: 50A
Thread Size (D): Rc (PT) 2
Nut Face-to-Face Width: 89mm
Nut Height: 24mm
Face-to-Face/Center-to-Center Dimensions: B: 60mm, X: 60mm, A: 70.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1975g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
4548745823134
ESCO 50AxRc 2" Female Thread Cheese (Mechanical Fitting for 3 Pipe Types) EA469HG-50
(text created at , 2025-08-11)
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Rated: 50A
Thread Size (D): Rc (PT) 2
Nut Face-to-Face Width: 89mm
Nut Height: 24mm
Face-to-Face/Center-to-Center Dimensions: B: 60mm, X: 60mm, A: 70.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1975g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
4548745823134
ESCO 50AxRc 2" Female Thread Cheese (Mechanical Fitting for 3 Pipe Types) EA469HG-50
(text created at , 2025-08-11)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
10,123 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
