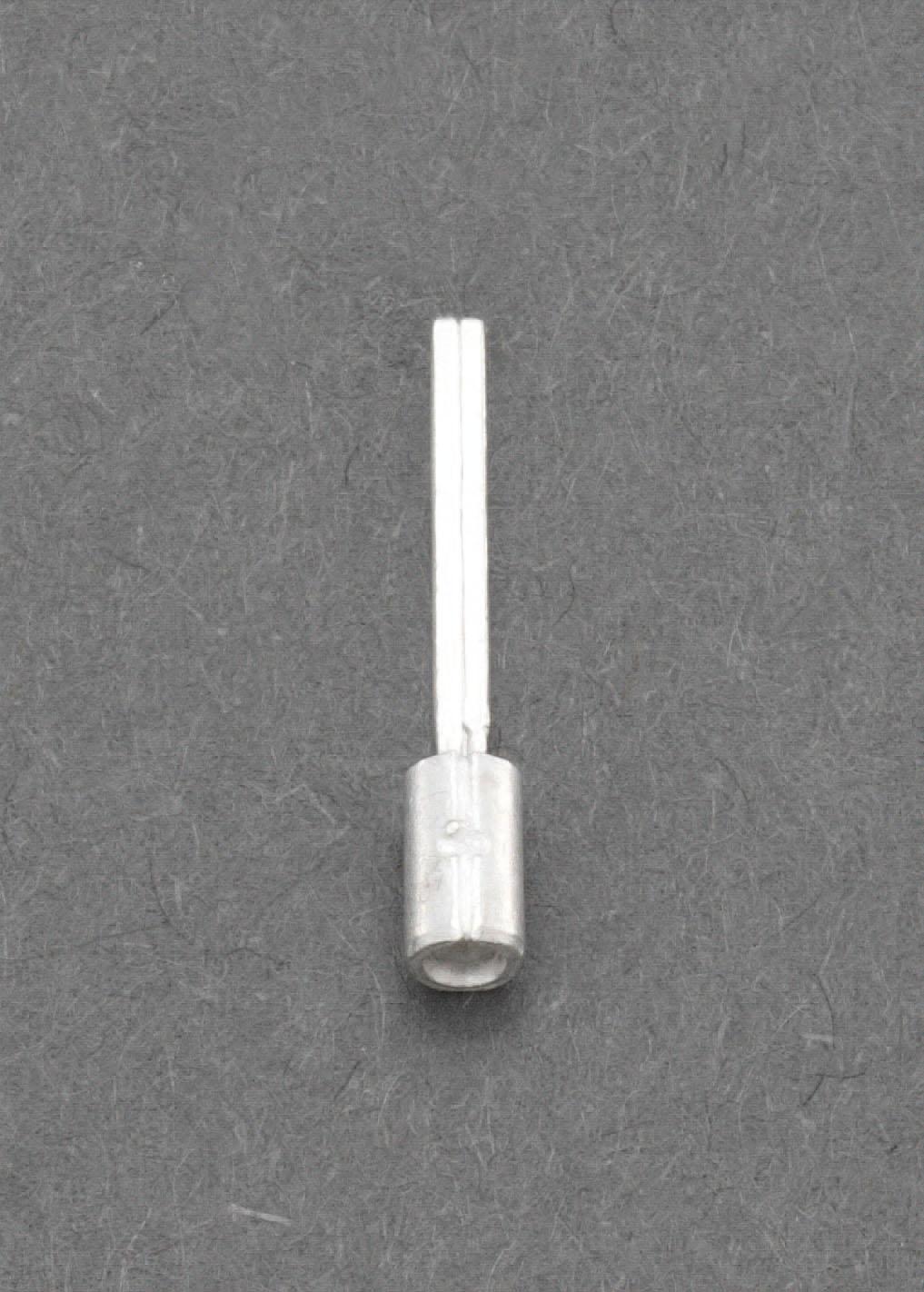

0.75-11 [BT Type] Bare Crimp Terminals (100 pcs) B: 1.2mm t: 0.7mm G: 11.0mm E: 4.5mm φD: 2.5mm φd: 1.4mm
JAN
4548745826272
ASIN
B00AXUL5DI
Maker
Model No.
EA538MP-22
Color
Size
B: 1.2mm t: 0.7mm G: 11.0mm E: 4.5mm φD: 2.5mm φd: 1.4mm
Description
Brand Name: Esco
Material: Copper
Model: BT0.75-11
Acceptable Range (Stranded Wire): 0.3/0.75mm² AWG 22-18
Oxygen-Free Copper
Electrolytic Tin Plated Finish
Overall Length (L): 16.8mm
Dimensions: B: 1.2mm t: 0.7mm G: 11.0mm E: 4.5mm Diameter D: 2.5mm Diameter d: 1.4mm
Packaged in quantities of 100.
4548745826272
0.75-11 [BT Type] Bare Crimp Terminal (100 pcs) B: 1.2mm t: 0.7mm G: 11.0mm E: 4.5mm φD: 2.5mm φd: 1.4mm
(text created at , 2025-05-10)
Material: Copper
Model: BT0.75-11
Acceptable Range (Stranded Wire): 0.3/0.75mm² AWG 22-18
Oxygen-Free Copper
Electrolytic Tin Plated Finish
Overall Length (L): 16.8mm
Dimensions: B: 1.2mm t: 0.7mm G: 11.0mm E: 4.5mm Diameter D: 2.5mm Diameter d: 1.4mm
Packaged in quantities of 100.
4548745826272
0.75-11 [BT Type] Bare Crimp Terminal (100 pcs) B: 1.2mm t: 0.7mm G: 11.0mm E: 4.5mm φD: 2.5mm φd: 1.4mm
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
1000 g
1,909 JPY (Including Tax)
Stock :
12
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
