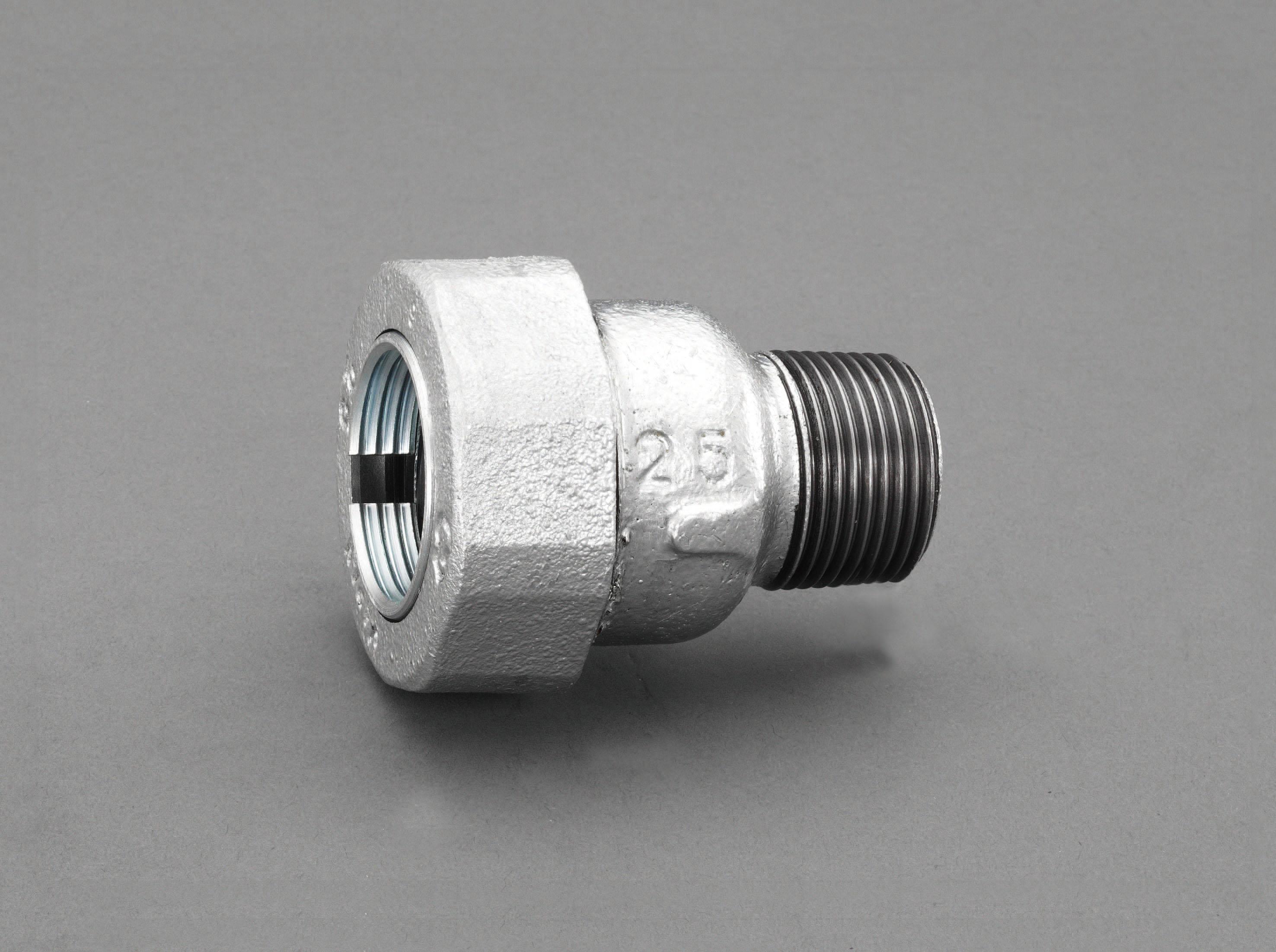

20AxR3/4 Male Threaded Socket (Mechanical Joint for 3 Pipe Types)
JAN
4548745826814
ASIN
B00AXUKMXM
Maker
Model No.
EA469HE-20
Color
Size
X: 60mm, A: 68.5mm
Description
ESCO Screw Socket - 3 Pipe Types Mechanical Joint
Nominal Size: 20A
Thread Size (D): R(PT) 3/4
Nut Face-to-Face Width: 51mm
Nut Height: 19mm
Face-to-Face Size: X: 60mm, A: 68.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Packing: NBR
Weight: 308g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Nominal Size: 20A
Thread Size (D): R(PT) 3/4
Nut Face-to-Face Width: 51mm
Nut Height: 19mm
Face-to-Face Size: X: 60mm, A: 68.5mm
4548745826814
20A x R3/4 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-05-11)
Nominal Size: 20A
Thread Size (D): R(PT) 3/4
Nut Face-to-Face Width: 51mm
Nut Height: 19mm
Face-to-Face Size: X: 60mm, A: 68.5mm
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Packing: NBR
Weight: 308g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm²), City Gas/LPG: 0.3MPa (3.1kgf/cm²)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm²).
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Nominal Size: 20A
Thread Size (D): R(PT) 3/4
Nut Face-to-Face Width: 51mm
Nut Height: 19mm
Face-to-Face Size: X: 60mm, A: 68.5mm
4548745826814
20A x R3/4 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
75x57x137 mm
Package
Weight (Approx.):
Weight (Approx.):
310 g
2,619 JPY (Including Tax)
Stock :
4
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
