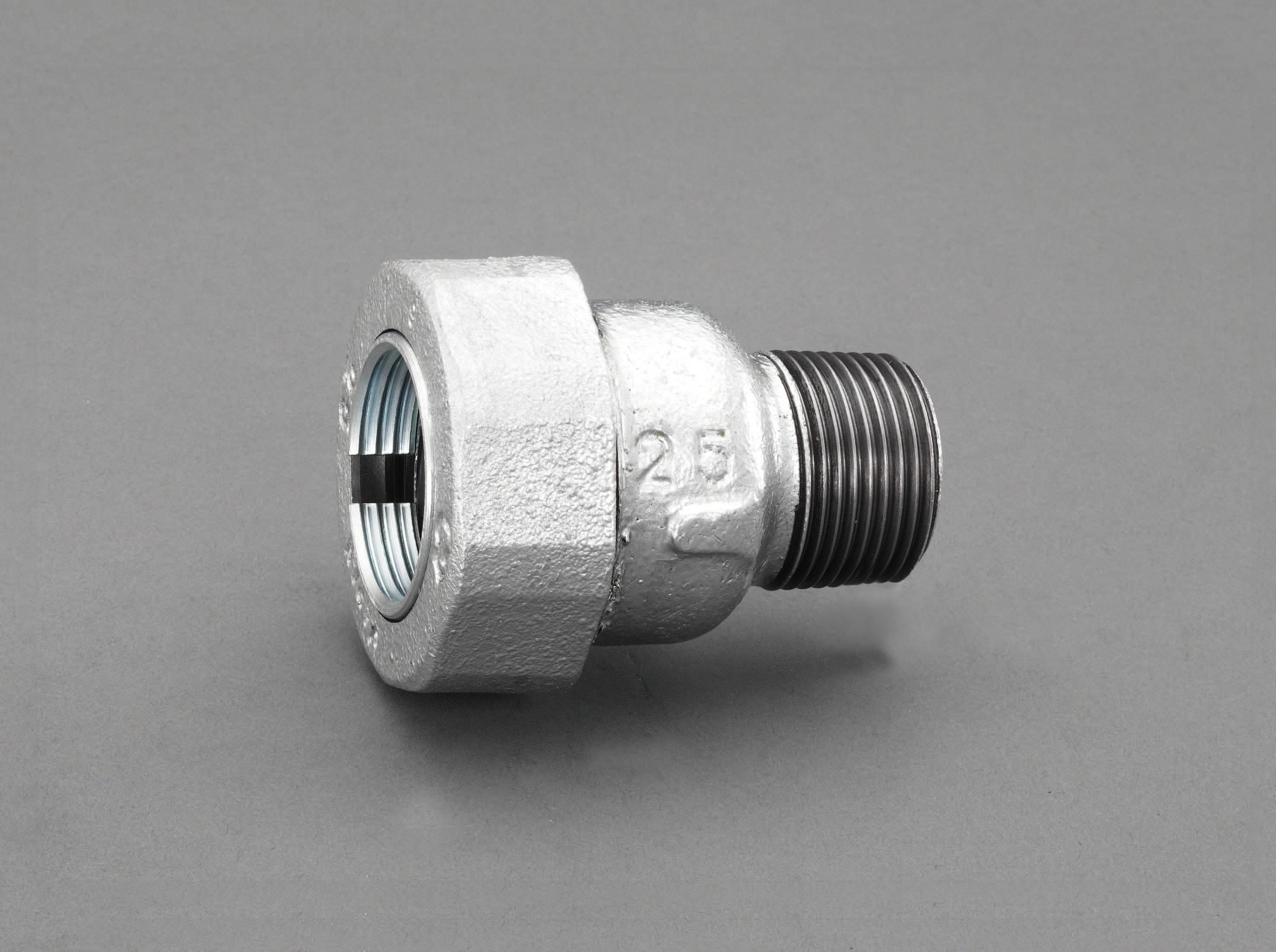

65AxR2・1/2 Male Thread Socket (Mechanical Joint for 3 Pipe Types)
JAN
4548745826869
ASIN
B00AXUKNU4
Maker
Model No.
EA469HE-65
Color
Size
X: 85mm, A: 97.5mm
Description
ESCO Screw Socket - 3 Pipe Type Mechanical Joint
Nominal Size: 65A
Screw Size (D): R(PT) 2-1/2
Nut Face-to-Face Width: 110mm
Nut Height: 26mm
Face-to-Face Size: X: 85mm, A: 97.5mm
Material: Body & Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1400g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2).
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Nominal Size: 65A
Thread Size (D): R(PT) 2-1/2
Nut Face-to-Face Width: 110mm
Nut Height: 26mm
Face-to-Face Size: X: 85mm, A: 97.5mm
4548745826869\ nB00AXUKNU4
65AxR2･1/2 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-11-12)
Nominal Size: 65A
Screw Size (D): R(PT) 2-1/2
Nut Face-to-Face Width: 110mm
Nut Height: 26mm
Face-to-Face Size: X: 85mm, A: 97.5mm
Material: Body & Nut: Malleable Cast Iron (Hot-Dip Galvanized), Lock Ring/Collars: Steel, Gasket: NBR
Weight: 1400g
Maximum Working Pressure: Water/Air/Oil: 1.0MPa (10.2kgf/cm2), City Gas/LPG: 0.3MPa (3.1kgf/cm2)
Maximum working pressure for polyethylene pipes is 0.75MPa (7.6kgf/cm2).
Brand Name: Esco
Material: Body/Nut: Malleable Cast Iron (Hot-Dip Galvanized)
Nominal Size: 65A
Thread Size (D): R(PT) 2-1/2
Nut Face-to-Face Width: 110mm
Nut Height: 26mm
Face-to-Face Size: X: 85mm, A: 97.5mm
4548745826869\ nB00AXUKNU4
65AxR2･1/2 Male Thread Socket (Mechanical Fitting for 3 Pipe Types)
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
13,322 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
