[Construction Machinery Use] Speaker & Amplifier Set EA763CF-20
JAN
4548745907995
ASIN
B00IZ3BVXY
Maker
Model No.
EA763CF-20
Color
Size
φ22.8 × 427 mm
Description

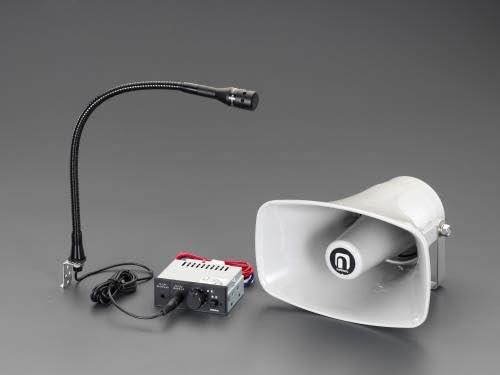

ESCO - Construction Machinery Speaker Amplifier Set EA763CF-20 Specifications : 3-piece set (no transformer) Horn Speaker ×1 10W Construction Machinery Amplifier ×1 Flexible Dynamic Microphone ×1 〈Amplifier Specifications〉\
Power Supply: DC24V\
Operating Voltage Range: DC20V to 32V (DC24V Battery)\
Rated Output: 10W\
Input Circuit: Electret MIC/1.6kΩ × 1 (Mini Jack), Dynamic/600Ω × 1 (Standard Jack)\
Load Impedance: 8 to 16Ω\\ n Dimensions: 90(W) × 89.5(D) × 35(H) mm\
Weight: Approx. 270g\
\\ Rated Input: 10W\\ Rated Impedance: 8Ω\\ Sound Pressure Level: 106dB or higher\\ Frequency Response: 350Hz–8kHz (within 20dB of sound pressure level)\\ Cable Length: 600mm (VFF 0.75mm²×2)\\ Dimensions: Bore/φ225×140mm, Overall Length 188mm\
Overall Length: 188mm\
Weight: Approx. 900g\
Horn Material: ASA Weather-Resistant Resin\
Screws/Mounting Hardware Material: Stainless Steel\
\\ nShape: Flexible type\
Impedance: 500Ω (unbalanced)\
Rated sensitivity level: 58dB\
Plug: Single-head plug\
Cord length: 2m\
Size: φ22.8×427mm\
Weight: Approx. 200g\
Unidirectional\
RoHS compliant (6 substances)
Brand name: Esco\
Material: Horn Section: ASA Weather-Resistant Resin
Quantity: 1 unit
Size: 90(W) × 89.5(D) × 35(H) mm
Horn Material: ASA Weather-Resistant Resin
4548745907995\ nB00IZ3BVXY
[For Construction Machinery] Speaker & Amplifier Set EA763CF-20
(text created at , 2025-11-12)
Power Supply: DC24V\
Operating Voltage Range: DC20V to 32V (DC24V Battery)\
Rated Output: 10W\
Input Circuit: Electret MIC/1.6kΩ × 1 (Mini Jack), Dynamic/600Ω × 1 (Standard Jack)\
Load Impedance: 8 to 16Ω\\ n Dimensions: 90(W) × 89.5(D) × 35(H) mm\
Weight: Approx. 270g\
Overall Length: 188mm\
Weight: Approx. 900g\
Horn Material: ASA Weather-Resistant Resin\
Screws/Mounting Hardware Material: Stainless Steel\
Impedance: 500Ω (unbalanced)\
Rated sensitivity level: 58dB\
Plug: Single-head plug\
Cord length: 2m\
Size: φ22.8×427mm\
Weight: Approx. 200g\
Unidirectional\
RoHS compliant (6 substances)
Brand name: Esco\
Material: Horn Section: ASA Weather-Resistant Resin
Quantity: 1 unit
Size: 90(W) × 89.5(D) × 35(H) mm
Horn Material: ASA Weather-Resistant Resin
4548745907995\ nB00IZ3BVXY
[For Construction Machinery] Speaker & Amplifier Set EA763CF-20
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
250x250x340 mm
Package
Weight (Approx.):
Weight (Approx.):
2200 g
41,702 JPY (Including Tax)
Stock :
6
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
