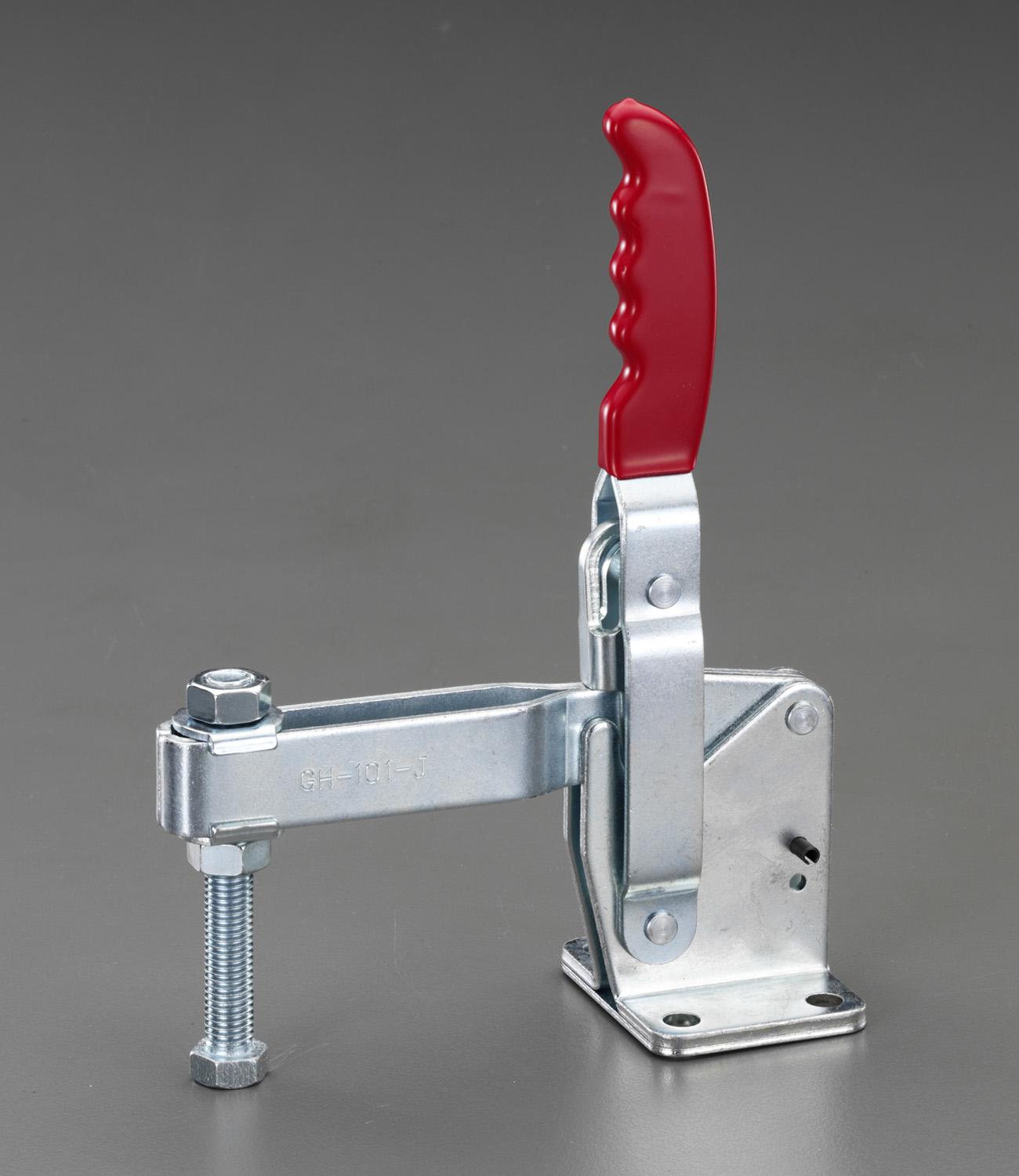

550kg Toggle Clamp
JAN
4548745935011
ASIN
B00IW4UFHO
Maker
Model No.
EA639CN
Color
Size
64.3 × 76.2 mm
Description
Brand Name: Esco
Material: Iron
Vertical Lever / Downward Clamping Type
Clamping Capacity: 550kg
Clamp Section: Neoprene Cap
Body Material: Steel, Zinc Plated
Size: 95.2(W) × 229.2(L) × 342(H) mm
Mounting Bracket Size: 64.3 × 76.2 mm
Bar Opening: With Roll Pin: 100° Without Roll Pin: 140°
Handle Opening: With Roll Pin: 48° Without Roll Pin: 60°
Mounting Holes: Diameter 8.7mm × 4 locations
4548745935011
550kg Toggle Clamp
(text created at , 2025-05-09)
Material: Iron
Vertical Lever / Downward Clamping Type
Clamping Capacity: 550kg
Clamp Section: Neoprene Cap
Body Material: Steel, Zinc Plated
Size: 95.2(W) × 229.2(L) × 342(H) mm
Mounting Bracket Size: 64.3 × 76.2 mm
Bar Opening: With Roll Pin: 100° Without Roll Pin: 140°
Handle Opening: With Roll Pin: 48° Without Roll Pin: 60°
Mounting Holes: Diameter 8.7mm × 4 locations
4548745935011
550kg Toggle Clamp
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
6,716 JPY (Including Tax)
