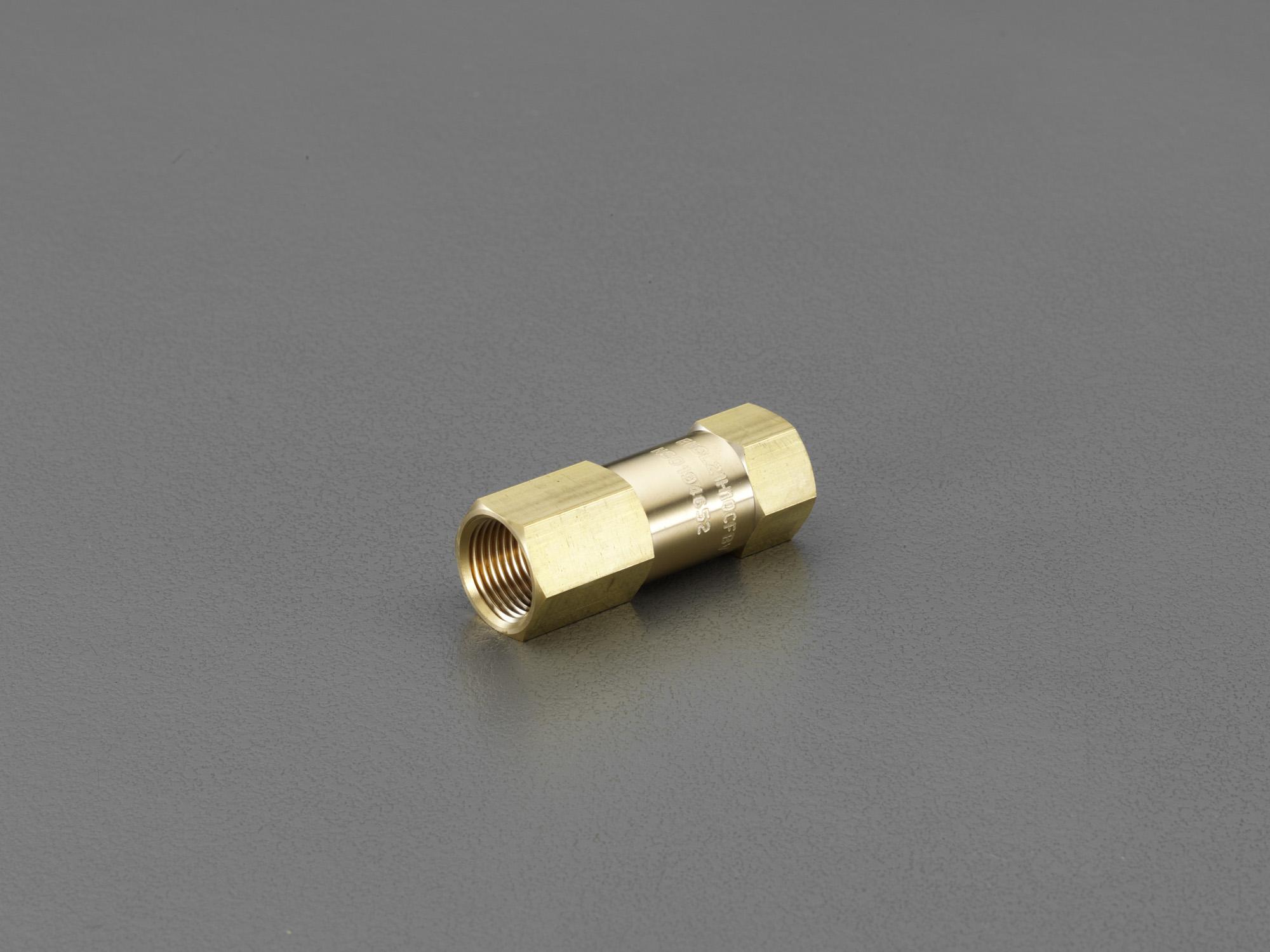

Rc3/8 Line Check Valve (High Pressure)
JAN
4548745992670
ASIN
B00IW4OS8G
Maker
Model No.
EA153EE-23
Color
Size
19mm × 54mm
Description
ESCO-Line Check Valve - High Pressure - EA153EE
Mounting Thread: Rc3/8”
Operating Pressure: 0/4.9MPa
Maximum Pressure: 7.3MPa
Ambient Temperature: 5/120℃
Operating Fluid: Air
Weight: 82g
Size: 19mm×54mm
Material: C3604
Fluorine rubber is used for the packing.
Prevents air backflow.
Brand Name: Esco
Mounting Screw: Rc3/8”
Maximum Pressure Rating: 7.3MPa
The packing uses fluororubber.
4548745992670
“Rc3/8” “Line Check Valve (High Pressure)”
(text created at , 2025-05-09)
Mounting Thread: Rc3/8”
Operating Pressure: 0/4.9MPa
Maximum Pressure: 7.3MPa
Ambient Temperature: 5/120℃
Operating Fluid: Air
Weight: 82g
Size: 19mm×54mm
Material: C3604
Fluorine rubber is used for the packing.
Prevents air backflow.
Brand Name: Esco
Mounting Screw: Rc3/8”
Maximum Pressure Rating: 7.3MPa
The packing uses fluororubber.
4548745992670
“Rc3/8” “Line Check Valve (High Pressure)”
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
250x100x250 mm
Package
Weight (Approx.):
Weight (Approx.):
2000 g
6,002 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
