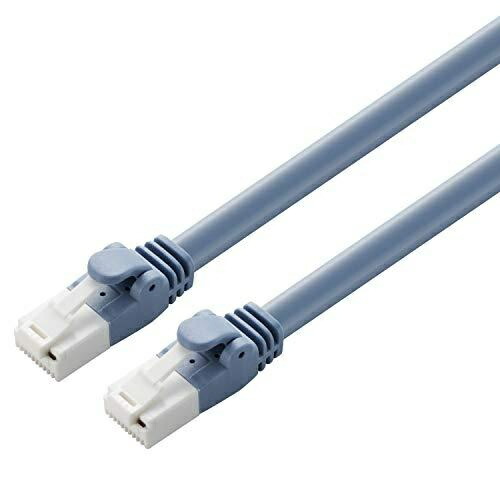

ELECOM LAN Cable 90m with Clip-Proof Cover Simple Packaging Compliant with EU RoHS Directive Solid Wire Blue LD-GPAT/BU90/RS

4549550176644

B089K8YXDH

LD-GPAT/BU90/RS

ELECOM - Claw Breakage Prevention Cover - LD-GPAT-BU90-RS
\


■Color: Blue\


■Interface: RJ-45 Connector\


■Environmental Compliance: Complies with EU RoHS Directive (10 Substances)\


■Specifications: Cat6A compliant (supports 10BASE-T/100BASE-TX/1000BASE-T/1000BASE-TX/10GBASE-T)\


■Transmission Speed: 10Gbps\


■Transmission Bandwidth: 500MHz\


■Cable Length: Approx. 90m (excluding connectors)\


■Cable Diameter: Approx. 6.2mm\


■Number of Cores: 8\


■Wiring Method: Straight-through wiring\


■Twisted Pair Cable: Yes\


■Cross-shaped Spacer: Yes\


■Outer Sheath Material: PVC\


■Length Marking: No\


■Conductor Construction: Solid Wire (23 AWG)\


■Connector Presence: Connectors on Both Ends\


■Molded Connector: Yes\


■Slim Connector: Yes\


■Connector with Clip-Break Prevention Cover: Yes\


■Cable Retraction Function: No\


■Package Type: Poly Bag (Environmentally Friendly Type)\


■Connector with Anti-Snap Tabs: ×\


■PoE: ○\


■This is the standard type Cat6A LAN cable.\


■Featuring a double-structure design with a tab-breakage prevention protector and connectors made from highly durable material resistant to bending, this LAN cable minimizes tab breakage. *Passed 1000 bend tests (in-house verification)\


■Prevents cable disconnection due to clip breakage, ensuring secure, long-term fixation in LAN ports.\


■Environmentally conscious, simplified packaging reduces waste and enables smooth unpacking.\


■Supports 10 Gigabit Ethernet “10GBASE-T”, suitable for high-speed optical communication.\


■Supports high-frequency bandwidth up to 500MHz (twice that of Cat6), offering strong resistance to noise interference for a fast, stable network environment.\


■Ensures stable data transfer speeds in 1000BASE-TX/1000BASE-T/100BASE-T environments. \


■Signal interference is prevented by incorporating a cross-shaped dielectric material within the cable, enabling stable data transfer.\


■Features twisted pair construction for reduced susceptibility to noise.\


■Meets flame retardancy standards by passing the 60-degree incline test (JIS C 3005).\


■Environmentally friendly product compliant with the EU's RoHS Directive (Restriction of Hazardous Substances in Electrical and Electronic Equipment) for 10 substances.\


■Product displaying the ‘THINK ECOLOGY’ mark, meeting at least one of our company's environmental certification standards.\


■Product committed to environmental conservation, with packaging consisting solely of paper, cardboard, and polyethylene bags. \
Please check our website for details
Brand Name: ELECOM
Unit Only
This is a standard type Cat6A LAN cable compatible with 10 Gigabit Ethernet, guaranteeing a frequency bandwidth of 500MHz. Featuring a double-layer structure with a clip-break protector and connectors made of highly durable material resistant to bending, this LAN cable is less prone to clip breakage. *Passed 1000 bend tests (in-house verification)
This is a standard type Cat6A LAN cable.
Featuring a double-layered structure with a clip-break prevention protector and connectors made from highly durable material, this LAN cable resists clip breakage. *Passed 1000 bend tests (in-house verification)
Prevents cable disconnection due to clip breakage, ensuring long-term

296x160x308 mm

4110 g
