DH-HDLOA30BK

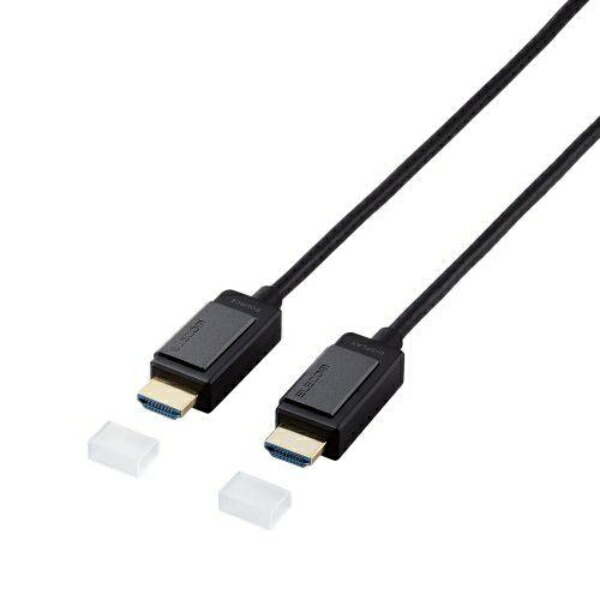

ELECOM HDMI Cable Active Optical Non-Powered Type DH-HDLOA30BK
\


■Compatible Devices: Input Side: LCD displays, projectors, LCD TVs, etc., with HDMI input ports; Output Side: PCs, etc., with HDMI output ports\


■Connector Type: HDMI (Type A, 19-pin) - HDMI (Type A, 19-pin)\


■Dimensions: Connector Size: Width approx. 20mm × Depth approx. 13.2mm × Height approx. 48.5mm\


■Transmission Speed: 18Gbps\


■Supported Resolution: Up to 4K (3840×2160px)/60Hz\


■Supported Color Depth: 12bit 4:2:2 or 8bit 4:4:4 (at 4K/60Hz)\


■Shielding Method: Triple Shielding\


■Plug Plating Specification: Gold-plated pins, gold-plated plug\


■Cable Length: Approx. 30m (Minimum bend radius: 60mm)\


■Cable Diameter: Approx. 4.8mm\


■Color: Black\


■Warranty Period: 1 year\


■Accessories: Instruction manual\


■Packaging: Paper box, model number label\


■Other: CEC compliant, HDCP 2.2 compliant, HEC non-compliant, ARC compliant, no external power required (power consumption: approx. 250mW)\


■This is a hybrid-structured HDMI cable supporting 4K (60P).\


■A single cable enables high-speed transmission of both video and audio signals in digital format.\


■The use of optical fiber for the high-speed video transmission line minimizes susceptibility to external noise, enabling stable video transmission.\


■The adoption of optical fiber allows for a thinner, lighter cable design.\


■Copper wires are used for various control signals and power lines, enabling power supply from the HDMI port and eliminating the need for an external power source.\


■The absence of an external power supply simplifies wiring in locations without power outlets.\


■Features a cable with an approximate diameter of 4.8mm, making it easy to handle for applications like home theater system setup or signage.\


■Supports ARC (Audio Return Channel) for connection to soundbars.\


■Supports HDR content formats including BT.2020, HDR10, Dolby Vision®, and HLG.\


■This product meets at least one of our in-house environmental certification standards and displays the ‘THINK ECOLOGY’ mark.\


■Committed to environmental conservation, this product reduces plastic weight in packaging containers by over 20% compared to our standard products.\


■Committed to environmental conservation, this product's packaging consists solely of paper, cardboard, and poly bags.\
ELECOM General Information Center\
TEL. 0570-084-465\
FAX. 0570-050-012\
Hours: 10:00 AM - 7:00 PM, Open Year-Round\
Brand Name: ELECOM\
Instruction Manual\
This is a hybrid-structure HDMI cable compatible with 4K (60P).\
A single cable enables high-speed transmission of both video and audio signals in digital format.
The use of optical fiber for the high-speed video transmission line minimizes susceptibility to external noise, enabling stable video transmission.
The adoption of optical fiber allows for a thinner, lighter cable design.
Copper wires are used for various control signals and the power line, enabling power supply from the HDMI port and eliminating the need for an external power source.
The absence of an external power supply simplifies wiring in locations without power outlets.
Ideal for home theater system setup, signage applications, and more.

250x60x250 mm

1140 g
