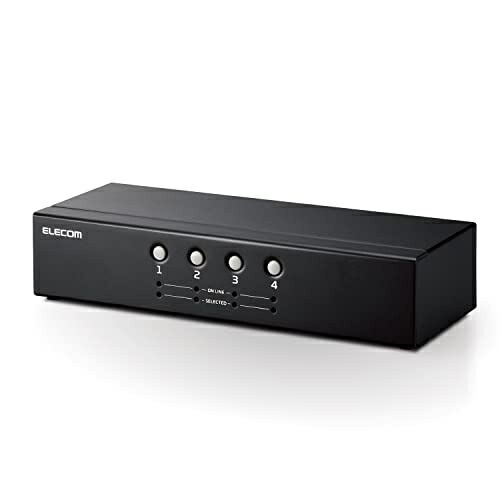

ELECOM Computer Switch VGA Compatible 4-Port Switch with Emulation Function KVM-NVXSN4

4549550255387

B0BH3WXGCS

KVM-NVXSN4

ELECOM - Computer Switch - VGA Compatible - Emulation Function - KVM-NVXSN4
\


■Compatible Devices: Computers with VGA port and USB-A or PS/2 port\


■Compatible OS (Windows): 11/10/8.1/8/7/Vista/XP\


■Supported OS (macOS): Mac OS X Cheetah 10.1 to macOS Monterey 12\


■Supported Mice: Wired mice (USB-A port, PS/2 port) Wireless mice (USB receiver type 2.4GHz) ※Enabling mouse emulation may cause malfunction. If this occurs, disable mouse emulation for use.\


■Supported Keyboards: Wired keyboards (USB-A port, PS/2 port), wireless keyboards (USB receiver type 2.4GHz) ※ For Mac terminals, keyboards must have a [ScrollLock] key\


■Supported Displays: Those with a VGA port\


■Interface (PC Side): SPHD connector (female) ※ Due to proprietary specifications, only the included cable can be used\


■Interface (Console Side): Mouse: Mini DIN 6-pin (PS/2) Female ×1, USB-A Female ×1 / Keyboard: Mini DIN 6-pin (PS/2) Female ×1, USB-A Female ×1 / Display: D-Sub 15-pin (VGA) Female ×1\


■Maximum Resolution: 2048X1536 @60Hz ※VESA DDC2B compliant\


■Maximum Number of PCs Connectable: 4\


■Switching Method: Switch button, Hotkey ([ScrollLock]×2 + [Enter] key), Mouse scroll button ※Mouse scroll operation requires hotkey configuration.\


■Switching Sound: On/Off ※Switchable via hotkey\


■Power: USB Bus Power (Supplied from the selected PC)\


■Accessories: KVM Cable (SPHD-VGA, USB, PS/2) Approx. 1.0m ×2 / KVM Cable (SPHD-VGA, USB, PS/2) Approx. 1.6m ×2\


■Dimensions: Width 200mm × Depth 75mm × Height 44mm\


■Weight: 690g (excluding cables)\


■Warranty Period: 1 year\


■VCCI Class B: Compliant\


■This KVM switch allows you to switch between and operate 4 computers using a single set of mouse, keyboard, and VGA display.\


■Even with 4 PCs, operation is possible using just one set of mouse, keyboard, and VGA display, achieving low cost, space savings, and eliminating the hassle of reconnecting cables.\


■Can be used in environments utilizing legacy interfaces such as PS/2 and VGA ports.\


■Equipped with an “Emulation Function” that minimizes device errors and time lag during PC switching, ensuring smooth device operation.\


■Features a standard “Display Emulation Function” that saves monitor EDID data and automatically optimizes resolution and screen size during PC switching without requiring additional emulators.\


■Equipped with an “AUTOSCAN function” that automatically switches the displayed PC port at set intervals.\


■The scan interval can be selected from four options: 3 seconds, 5 seconds, 10 seconds, or 20 seconds.\


■“Bus-powered operation” allows it to be powered from a PC's USB or PS/2 port, enabling use even in locations without power outlets.\


■The unit's “PC Selector”

174x102x286 mm

1580 g
