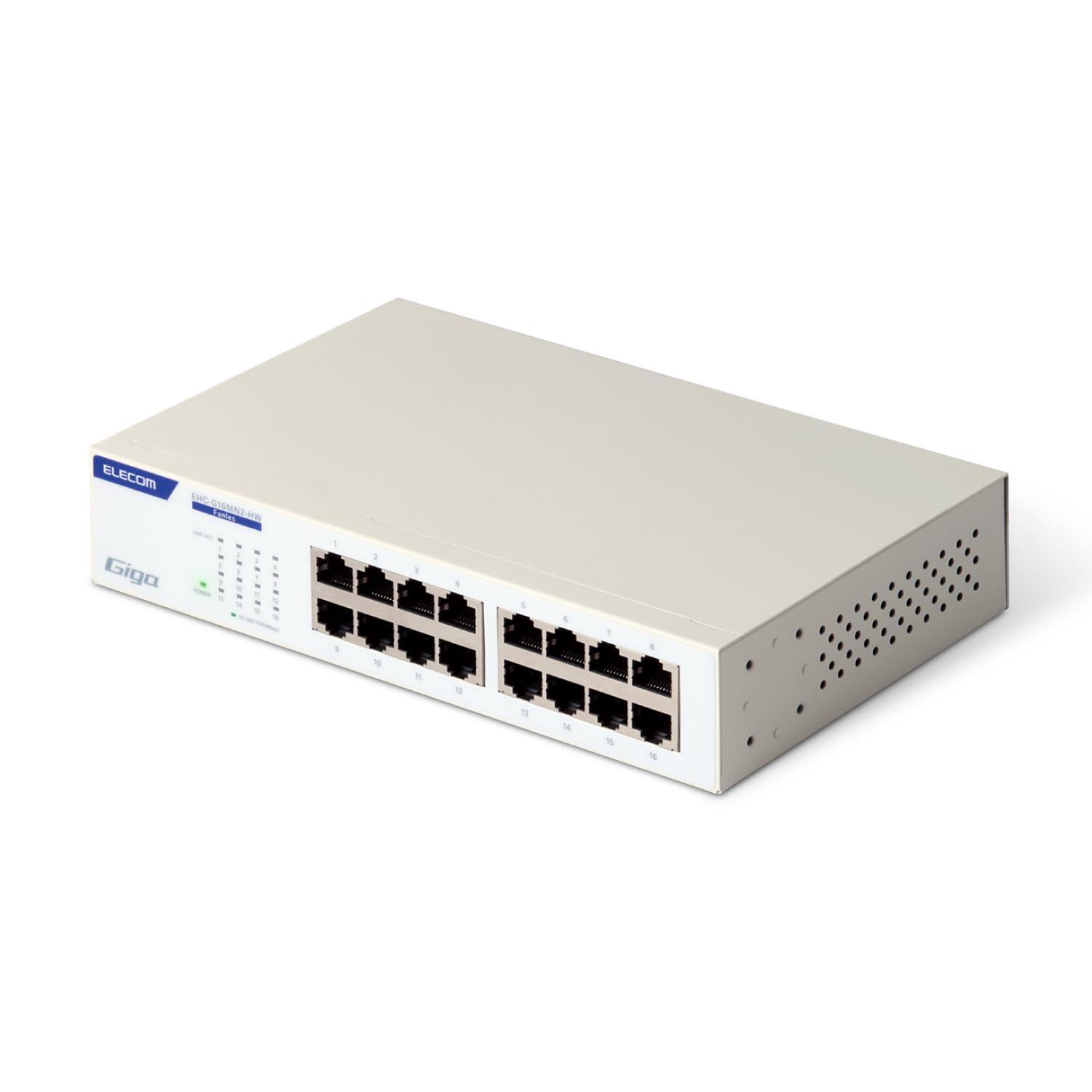

ELECOM Switching Hub Gigabit 16-Port Built-in Power Supply Metal Housing EHC-G16MN2-HW

4549550264945

B0CKYQN419

347-7458

ELECOM Switching Hub Gigabit 16-Port EHC-G16MN2-HW

■ Transmission Speed: 1000Mbps (1000BASE-T), 100Mbps (100BASE-TX), 10Mbps (10BASE-T)

■ Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3

■Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3\


■Switching Method: Store & Forward\


■Communication Mode: Full Duplex, Half Duplex\


■Flow Control: IEEE 802.3x (Full Duplex), Back Pressure (Half Duplex)\


■Number of Ports: 16 Ports\


■Auto MDI/MDI-X: Supported\


■Auto Negotiation: Supported\


■Connector Type: RJ-45 × 16\


■Compatible Cables: 1000BASE-T: UTP Category 5e or higher, 100BASE-TX: UTP Category 5 or higher, 10BASE-T: UTP Category 3 or higher\


■Buffer Memory: 512Kbytes (dynamically allocated per port)\


■Switching Fabric: 32.0Gbps\


■Maximum Packet Forwarding Capacity: 23.8Mpps\


■Packet Forwarding Rate: 1,488,095 packets/sec (1000Mbps), 148,809 packets/sec (100Mbps), 14,880 packets/sec (10Mbps)\


■MAC Address Table Size: 8,192 entries (total across all ports)

■Jumbo Frame Support: Supported (10Kbytes)

■Non-Blocking: Supported

■EAP Pass-Through: Supported

■BPDU Pass-Through: Supported

■Loop Detection/Prevention: Loop Detection

■PoE Specification: Not Supported

■Power Specifications: Built-in power supply\


■Input Voltage: AC100~240V±10% 50/60Hz\


■Power Consumption: 11.3W (Max)\


■Heat Dissipation: Approx. 40.7kJ/h (Max)\


■Power Saving Function: Easy Power Saving E compliant (IEEE 802.3az)\


■Energy Efficiency: 0.8W/Gbps\


■Maximum Effective Transmission Speed: 16.0Gbps\


■Port Speed and Number of Ports at Measurement: 1Gbps: 16 ports\


■Dimensions: Width approx. 215.5mm × Depth approx. 133.0mm × Height approx. 42.0mm (main unit only) \


■Weight: Approx. 900g (main unit only) \


■Housing Material (Color): Metal (White) \


■Theft Prevention: No security slot \


■Installation Methods: Horizontal placement, wall mount, 19-inch rack mount, magnet (requires optional EHB-EX-MG4)\


■Wall Mounting Holes: Yes\


■Operating Environment Conditions: Temperature: 0°C to 50°C, Humidity: 10% to 90% (non-condensing)\


■Storage Environment Conditions: Temperature: -40°C to 70°C, Humidity: 5% to 90% (no condensation)\


■MTBF: 1,156,000 hours @ 25°C, 362,000 hours @ 50°C\


■Compliance: EU RoHS Compliant (10 Substances)\


■Compliance Standards: VCCI Class A\


■Accessories: Dedicated AC Cable (3-pin, approx. 1.8m): 1, 3-pin to 2-pin Conversion Adapter: 1, AC Cable Retention Band: 1, 19-inch Rack Mount Brackets: 2, 19-inch Rack Mount Bracket Screws: 8, Rubber Feet: 4, For Your Peace of Mind: 1\


■Warranty Period: 1 year\


■Maintenance Service|Delivery: -\


■Maintenance Service|Send-Back Extension: -\


■Dedicated Option|Magnet: EHB-EX-MG4\
\


■1000BASE-T Compatible, Power-Integrated Metal Enclosure 16-Port Switch

227x74x329 mm

1730 g
