ELECOM LAN Cable CAT6A 5m Vertical Swing Connector Snag-Resistant Connector Slim Blue LD-GPATSV/BU50

4549550274579

B0BT7K2HC4

LD-GPATSV/BU50

ELECOM LAN Cable - Swing Connector - Anti-Break Connector - LD-GPATSW Color: Blue Interface: RJ-45 Connector Environmental Considerations: EU RoHS compliant (10 substances)

■Specifications: Cat6A compliant (compatible with 10GBASE-T/1000BASE-TX/1000BASE-T/100BASE-TX/10BASE-T)

■Transmission speed: 10Gbps

■Transmission bandwidth: 500MHz

■Cable length: Approximately 5.0m

■Cable thickness: Approximately 3.5mm

■Number of cores: 8

■Connection method: Straight connection

■Twisted pair cable: Yes

■Shielding: No

■Cross-section material: No

■Outer sheath material: PVC

■Conductor configuration: Stranded

■Connectors: With connectors on both ends (vertical swing x straight)

■Molded connector: Yes

■Slim connector: Yes

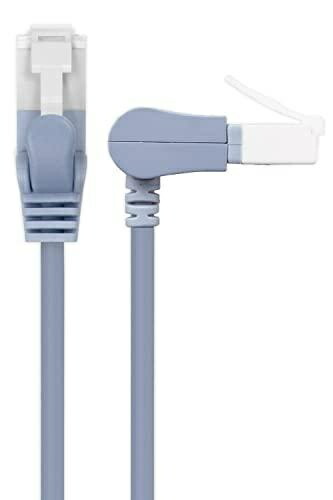

■Connectors with anti-breakage covers: Yes Only one end. Cable rewind function: No. Packaging: Aluminum foil bag + sticker. Anti-break connector: Yes. PoE: No. This Cat6A-compliant LAN cable features a swing connector that allows one end to rotate 90 degrees vertically. The other connector is a straight type, not a swing type. The cable's angle can be adjusted to suit the installation environment of your PC or router. The soft tabs prevent breakage and prevent connection and disconnection problems. This LAN cable features a double structure with anti-break tab protectors and connectors made of highly durable materials, making it less likely to break. Passed a 1000-bend test (verified by our company). The anti-break tab protector is only attached to the straight type connector. The slim connector does not interfere with adjacent ports and has a slim profile. This Cat6A-compliant LAN cable supports 10GBASE-T, a 10 Gigabit Ethernet standard, ideal for high-speed optical communications. It supports high-frequency bandwidths up to 500MHz, twice that of Cat6, and is resistant to noise interference, providing a high-speed, stable network environment. It ensures stable data transfer speeds in 1000BASE-TX, 1000BASE-T, and 100BASE-T environments. This slim cable, approximately 3.5mm in diameter, is ideal for wiring in tight spaces. Its twisted design eliminates crossovers, making it flexible and easy to handle, even in tight spaces. It complies with the EU's RoHS Directive (restriction of the use of certain hazardous substances in electrical and electronic equipment) (restricting the use of 10 substances), making it an environmentally friendly product. This product is packaged using only paper, cardboard, and plastic bags. ELECOM General Information Center TEL: 0570-084-465 FAX: 0570-050-012 Business Hours: 10:00 AM - 7:00 PM, Open 365 Days a Year Brand: ELECOM (Main Unit Only) This Cat6A compliant LAN cable features a vertical swing connector, supporting 10 Gigabit Ethernet with a guaranteed 500 MHz bandwidth. The connector can be rotated 90 degrees up or down to adjust the cable's angle, allowing for a neater fit to your PC, router, or other device. The other connector is a straight, non-swinging connector. This Cat6A compliant LAN cable features a swing connector that can be rotated 90 degrees up or down. The other connector is a straight, non-swinging connector. The adjustable cable angle allows for a neater fit to your PC, router, or other device. The soft tabs prevent breakage and prevent connection or disconnection issues. This LAN cable features a double structure with a snap-prevention protector and a connector made of highly durable material for improved resistance to bending. * Passed 1,000 bend tests (verified by our company). * The snap-prevention protector is attached only to the straight connector. It features a slim connector that does not interfere with adjacent ports and does not protrude unnoticed. This Cat6A compliant LAN cable supports 10GBASE-T, 10 Gigabit Ethernet, suitable for high-speed optical communications. It supports high-frequency bandwidths up to 500MHz, twice that of Cat6, and is resistant to noise interference, ensuring a high-speed, stable network environment. 4549550274579 ELECOM LAN Cable CAT6A 5m Vertical Swing Connector with Anti-Snap Connector, Slim Blue, LD-GPATSV/BU50 (text created at , 2025-05-11)

150x17x219 mm

90 g
