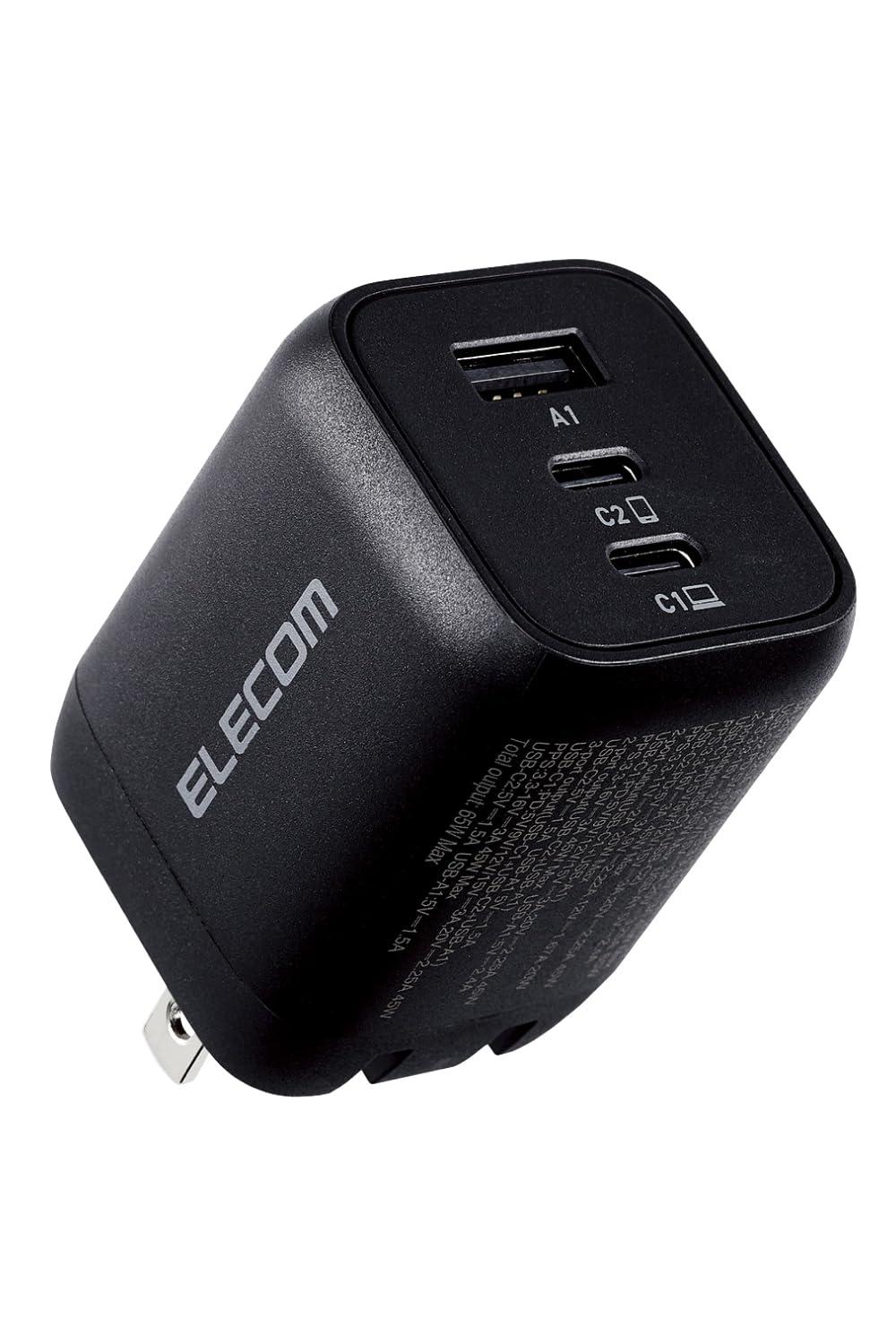

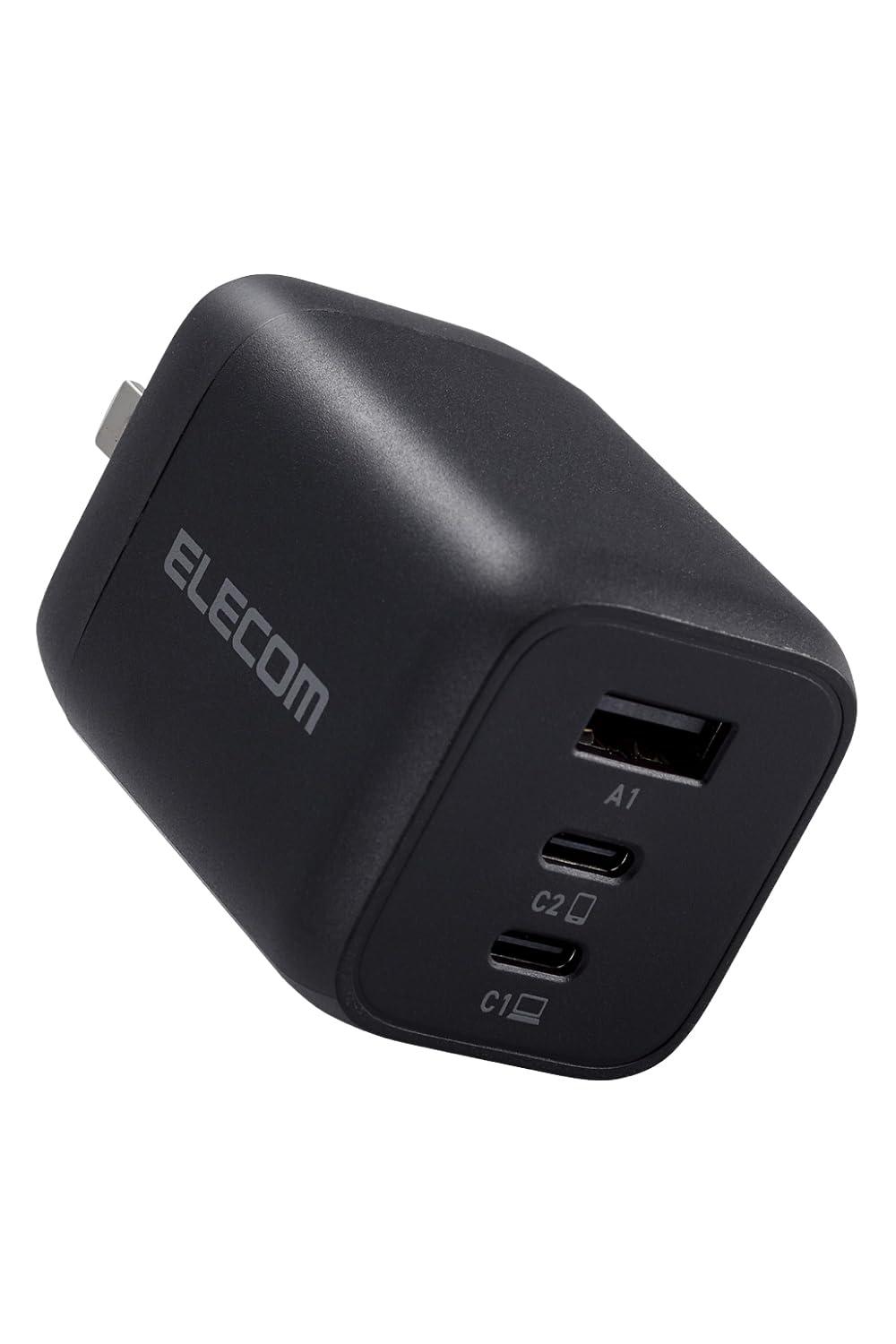

ELECOM Charger Type-C 3-Port USB-C×2 USB-A×1 65W USB PD Compatible PPS Compatible Foldable Plug GaN Adopted Black ACDC-PD4465BK

4549550281683

B0C8HKHLHR

ACDC-PD4465BK

ELECOM - USB-C x 2 - Foldable Plug - MacBook - ACDC-PD4465BK Compatible models: Devices that can be charged using USB Power Delivery (65W) and the optional PPS (Programmable Power Supply) from each USB Type-C (USB-C) port, or up to 12W from the USB-A port. When two or more ports are connected simultaneously, devices and combinations can be charged and powered with a total output of up to 65W.

■Connector Type: Two USB Type-C (USB-C) ports, one USB-A port

■Rated Input Voltage: AC 100-240V, 50/60Hz

■Rated Input Current: 2A

■Dimensions: Approx. 52mm wide x 38mm thick x 40.5mm high

■Weight: Approx. 112g

■Color: Black

■Outlet Plug: 90-degree swing structure

■Operating Temperature: 0°C-35°C

■Regulations: ▪️PSE Specific Electrical Appliances

■Warranty: 1 year

■Other: *USB Type-C and USB-C are trademarks of USB Implementers Forum

■Rated Output Power 1: When connected individually: USB Type-C1 (USB-C1) / USB Type-C2 port maximum output 65W, PPS maximum output 45W, USB-A port maximum output 12W

■Rated Output Power 2: When connected simultaneously (1): USB Type-C1 + USB Type-C2 port: Total maximum output 65W, USB Type-C1 port maximum output 45W, PPS maximum output 45W, USB Type-C2 port maximum output 20W, PPS maximum output 20W.

■Rated output power 3: When two ports are connected simultaneously (2): USB Type-C1 + USB-A port: Total maximum output 57W, USB Type-C1 port maximum output 45W, PPS maximum output 45W, USB-A port maximum output 12W, USB Type-C2 + USB-A port: Total maximum output 15W, USB Type-C2 port maximum output 7.5W, USB-A port maximum output 7.5W.

■Rated output power 4: When three ports are connected simultaneously: Total maximum output 60W, USB Type-C1 port maximum output 45W, PPS maximum output 45W, USB Type-C2 port maximum output 7.5W, USB-A port maximum output 7.5W.

■Rated output voltage 1: When connected alone: USB Type-C1 (USB-C1) / USB Type-C2 port: 5V/9V/12V/15V/20V, PPS output 3.3-16V, USB-A port: 5V. Rated output voltage 2: When two ports are connected simultaneously (1): USB Type-C1 + USB Type-C2 port: USB Type-C1 port: 5V/9V/12V/15V/20V, PPS output 3.3-16V, USB Type-C2 port: 5V/9V, PPS output 3.3-11V. Rated output voltage 3: When two ports are connected simultaneously (2): USB Type-C1 + USB-A port: USB Type-C1 port: 5V/9V/12V/15V/20V, PPS output 3.3-16V, USB-A port: 5V. USB Type-C2 + USB-A port: USB Type-C2 port: 5V, USB-A port: 5V. Rated output voltage 4: When three ports are connected simultaneously: USB Type-C1 port: 5V/9V/12V/15V/20V, PPS output 3.3-16V, USB Type-C2 port: 5V, USB-A port: 5V. Rated output current 1: When connected alone: USB Type-C1 (USB-C1) / USB Type-C2 port: 3A at 5V/9V/12V/15V, 3.25A at 20V, PPS output 3A at 3.3-16V, USB-A port: 2.4A at 5V. Rated output current 2: When connecting two ports simultaneously (1): USB Type-C1 + USB Type-C2 port: USB Type-C1 port: 3A at 5V/9V/12V/15V, 2.25A at 20V, PPS output 3A at 3.3-16V, USB Type-C2 port: 3A at 5V, 2.22A at 9V, 2A at PPS output 3.3-11V. Rated Output Current 3: When two ports are connected simultaneously (2): USB Type-C1 + USB-A port: USB Type-C1 port: 3A at 5V/9V/12V/15V, 2.25A at 20V, 3A at PPS output 3.3-16V, USB-A port: 2.4A at 5V, USB Type-C2 + USB-A port: USB Type-C2 port: 1.5A at 5V, USB -A port: 1.5A at 5V. Rated Output Current 4: When three ports are connected simultaneously: USB Type-C1 port: 3A at 5V/9V/12V/15V, 2.25A at 20V, 3A at PPS output 3.3-16V, USB Type-C2 port: 1.5A at 5V, US

95x42x167 mm

150 g
