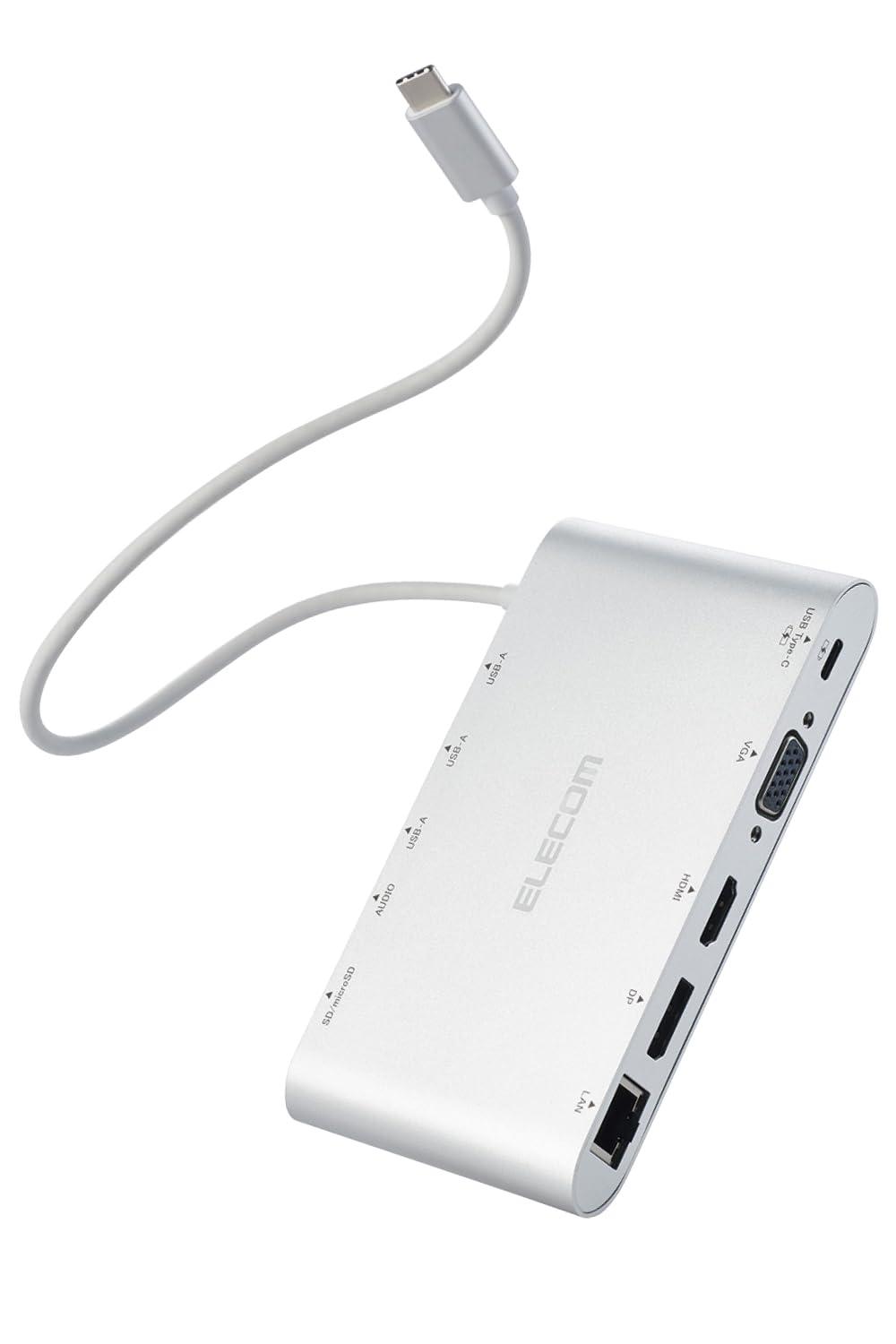

ELECOM USB Hub Docking Station 11-in-1 Multi-Monitor 4-Screen Type-C USB PD 100W Compatible USB-A×3 / DisplayPort/HDMI/D-sub / 4-pole φ3.5mm Headphone Jack/SD+microSD...
JAN
4549550302371
ASIN
B0D2QNNZHX
Maker
Model No.
546-8584
Color
Size
Description
ELECOM - Docking Station - Multi-Monitor 4-Screen - DisplayPort - DST-C28SV
\
■Supported OS (Windows): Windows 11/10\
■Supported OS (mac): macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12\
■Supported OS (iPadOS): iPadOS 17/16 ※When charging an iPad, use a USB Power Delivery compatible AC adapter rated at 45W or higher.\
■Supported OS Notes: ※OS updates or service pack installations may be required.\
■Connector Specifications (Upstream): USB Type-C™ connector [USB 5Gbps (USB3.2 Gen1)], USB Power Delivery compatible (Max input 100W / Max output 85W), DisplayPort™ Alt mode (Operates USB 2.0 compatible when connected via USB 2.0; video output not supported when connected via USB 2.0)\
■USB Ports (Downstream): 1: USB Type-C Port ×1 ※Charging-only USB Power Delivery port\
■USB Ports (Downstream): 2: USB-A Ports [USB 5Gbps (USB3.2 (Gen1)] ×3, Power Delivery: 3 ports total 13.5W (5V/2.7A) ※For data communication only. Does not support video output.\
■Video Output Ports (Downstream): 1: HDMI® ×1 ※\
■Video Output Ports (Downstream): 2: DisplayPort™ ×1 ※\
■Video Output Port (Downstream): 3: VGA ×1\
■Video Output Port (Downstream): ※The DisplayPort(TM) input signal must be compatible with standard DisplayPort(TM) 1.2.\
■Video Output Ports (Downstream): ※When connecting HDMI port and DisplayPort™ simultaneously, or HDMI port and VGA port simultaneously, or DisplayPort™ and VGA port simultaneously, the maximum resolution for both ports is 1920×1080/60Hz.\
■Video Output Port (Downstream): ※When connecting HDMI port and DisplayPort(TM) and VGA port simultaneously, the maximum resolution for one port is 1920×1080/60Hz, while the other two ports have a maximum resolution of 1920×1080/30Hz.\
■LAN Port (Downstream): RJ45 (1000BASE-T/100BASE-TX/10BASE-T)\
■Card Reader (Downstream): 1: SD Memory Card ×1, Supported Media: SD (HighSpeed/ProHighSpeed/Class2/4/6/10), SDHC (Class2/4/6/10/UHS-I), SDXC (Class10/UHS-I)\
■Card Reader (Downstream): 2: microSD Memory Card ×1, Supported Media: microSD, microSDHC (Class 2/4/6/10/UHS-I), microSDXC (Class 10/UHS-I)\
■Audio Port (Downstream): 3.5mm 4-pole stereo mini jack ×1 (CTIA standard)\
■Power Method: Bus-powered
\
■Supported OS (Windows): Windows 11/10\
■Supported OS (mac): macOS Sonoma 14/macOS Ventura 13/macOS Monterey 12\
■Supported OS (iPadOS): iPadOS 17/16 ※When charging an iPad, use a USB Power Delivery compatible AC adapter rated at 45W or higher.\
■Supported OS Notes: ※OS updates or service pack installations may be required.\
■Connector Specifications (Upstream): USB Type-C™ connector [USB 5Gbps (USB3.2 Gen1)], USB Power Delivery compatible (Max input 100W / Max output 85W), DisplayPort™ Alt mode (Operates USB 2.0 compatible when connected via USB 2.0; video output not supported when connected via USB 2.0)\
■USB Ports (Downstream): 1: USB Type-C Port ×1
■USB Ports (Downstream): 2: USB-A Ports [USB 5Gbps (USB3.2 (Gen1)] ×3, Power Delivery: 3 ports total 13.5W (5V/2.7A) ※For data communication only. Does not support video output.\
■Video Output Ports (Downstream): 1: HDMI® ×1
■Video Output Ports (Downstream): 2: DisplayPort™ ×1
■Video Output Port (Downstream): 3: VGA ×1
■Video Output Port (Downstream): ※The DisplayPort(TM) input signal must be compatible with standard DisplayPort(TM) 1.2.\
■Video Output Ports (Downstream): ※When connecting HDMI port and DisplayPort™ simultaneously, or HDMI port and VGA port simultaneously, or DisplayPort™ and VGA port simultaneously, the maximum resolution for both ports is 1920×1080/60Hz.\
■Video Output Port (Downstream): ※When connecting HDMI port and DisplayPort(TM) and VGA port simultaneously, the maximum resolution for one port is 1920×1080/60Hz, while the other two ports have a maximum resolution of 1920×1080/30Hz.\
■LAN Port (Downstream): RJ45 (1000BASE-T/100BASE-TX/10BASE-T)\
■Card Reader (Downstream): 1: SD Memory Card ×1, Supported Media: SD (HighSpeed/ProHighSpeed/Class2/4/6/10), SDHC (Class2/4/6/10/UHS-I), SDXC (Class10/UHS-I)\
■Card Reader (Downstream): 2: microSD Memory Card ×1, Supported Media: microSD, microSDHC (Class 2/4/6/10/UHS-I), microSDXC (Class 10/UHS-I)\
■Audio Port (Downstream): 3.5mm 4-pole stereo mini jack ×1 (CTIA standard)\
■Power Method: Bus-powered
Package
Size (Approx.):
Size (Approx.):
130x27x209 mm
Package
Weight (Approx.):
Weight (Approx.):
240 g
28,083 JPY (Including Tax)
Stock :
15
Scheduled Shipping:
2026-07-15
Quantity :
Reference Price from Other Stores
