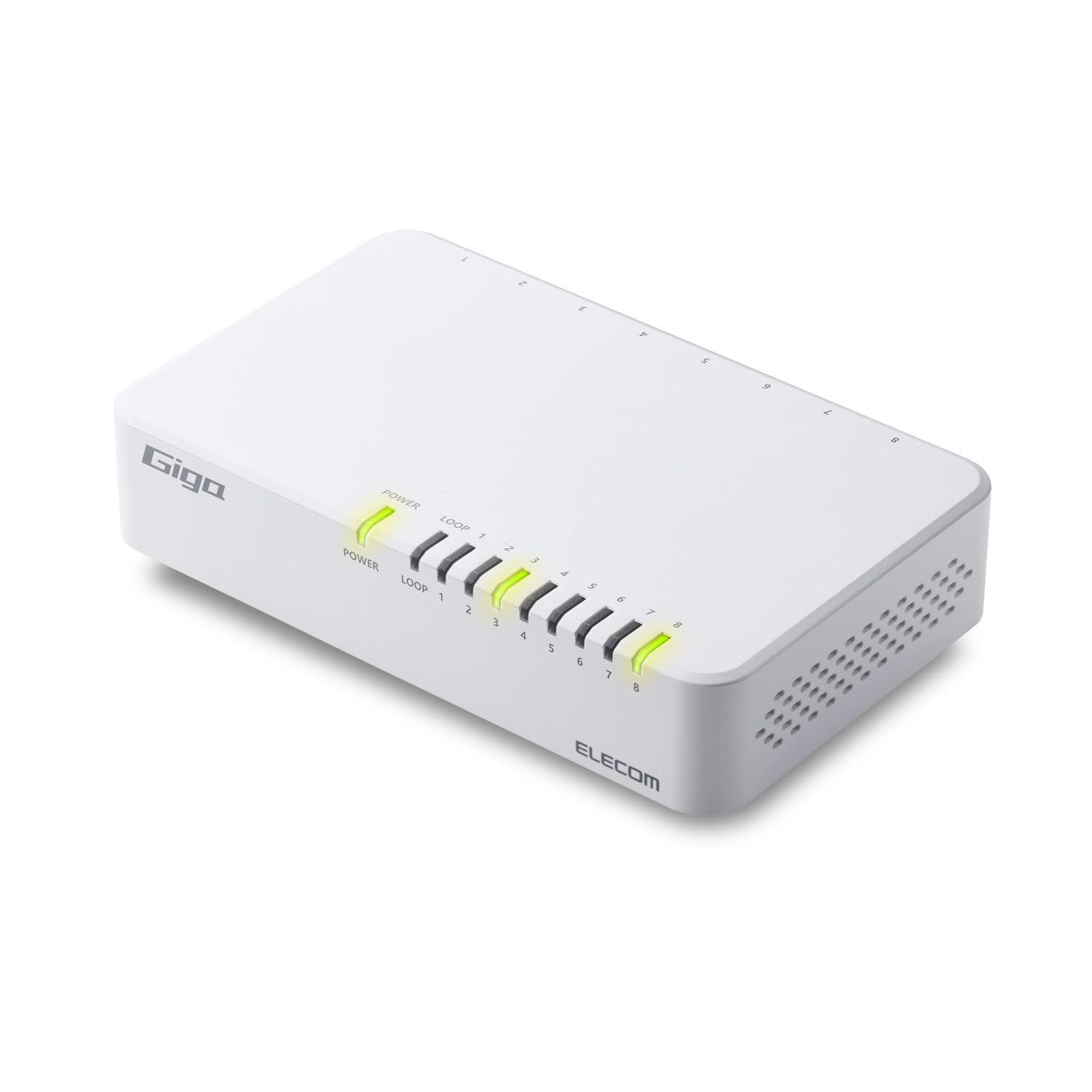

ELECOM Switching Hub 8-Port Gigabit Compatible Plastic Housing with Magnet External Power Supply Model White EHC-G08PA4-JW
JAN
4549550318372
ASIN
B0DMR4RR1G
Maker
Model No.
EHC-G08PA4-JW
Color
Size
Description
ELECOM - Switching Hub - Plastic Housing - External Power Supply Model - EHC-G08PA4-JW
■Transmission Speed: 1000Mbps (1000BASE-T), 100Mbps (100BASE-TX), 10Mbps (10BASE-T)
■Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
■Switching Method: Store-and-Forward
■Communication Method: Full-Duplex, Half-Duplex
■Flow Control: IEEE 802.3x (Full-Duplex), Backpressure (Half-Duplex)
■Number of Ports: 8
■Auto MDI/MDI-X: Supported
■Auto-negotiation: Supported
■Connector type: RJ-45 x 8
■Compatible cables: 1000BASE-T: UTP Category 5e or higher, 100BASE-TX: UTP Category 5 or higher, 10BASE-T: UTP Category 3 or higher
■Buffer memory: 512Kbytes (dynamically allocated to each port)
■Switching fabric: 16.0Gbps
■Maximum packet forwarding capacity: 11.9Mpps
■Packet forwarding speed: 1,488,09 5 packets/second (1000Mbps), 148,809 packets/second (100Mbps), 14,880 packets/second (10Mbps) n
■Number of MAC addresses registered: 8,192 (total for all ports) n
■Jumbo frames: Supported (15Kbytes) n
■Non-blocking: Supported n
■EAP transparency: Supported n
■BPDU transparency: Supported n
■Loop detection and prevention: Loop detection n
■PoE: Not supported n
■Power supply: Dedicated AC adapter n
■Input voltage: AC 100-240V ±10% 50/60Hz n
■Power consumption: 3.6W (max) n
■Heat output: Approximately 13.0kJ/h (max) n
■Power saving: Supports Easy Energy Saving E (IEEE 802.3az)
■Energy consumption efficiency: 0.5W/Gbps
■Maximum effective transmission speed: 8.0Gbps
■Port speed and number of ports at time of measurement: 1Gbps: 8 ports
■External dimensions: Approx. 140.0mm wide x 84.5mm deep x 34.0mm high (main unit only)
■Weight: Approx. 190g (main unit only)
■Housing material (color): Plastic (white)
■Theft Security: No security slot. Mounting Method: Horizontal installation, wall mounting, magnet. Wall Mounting Holes: Yes. Operating Environment: Temperature: 0°C to 40°C, Humidity: 10% to 90% (non-condensing). Storage Environment: Temperature: -40°C to 70°C, Humidity: 5% to 90% (non-condensing). MTBF: 269,000 hours @ 25°C, 219,000 hours @ 40°C. Compliance: EU. RoHS Compliant (10 Substances)
■Compliant Standards: VCCI Class B
■Accessories: Dedicated AC Adapter (approx. 1.5m): 1 pc, Worry-Free Use: 1 pc
■Warranty Period: 1 Year
■Maintenance Service | Delivery: N/A
■Maintenance Service | Send-Back Extension: N/A
■Optional Accessories | Magnets: N/A
■This is a 8-port switching hub with a plastic housing, compatible with Gigabit (1000BASE-T) and powered by an AC adapter.
■Equipped with "Auto MDI/MDI-X" functionality on all ports, automatically distinguishing between straight and crossover cables. This prevents connection errors.
■The quiet, fanless design makes it ideal for use in quiet rooms.
■The main board does not use electrolytic capacitors. This ensures a long lifespan and ensures reliable operation.
■The AC adapter uses a tracking-resistant outlet plug. This prevents tracking even after long-term installation.
■The loop detection function is included. The flashing LED light alerts you to network loops and prompts you to resolve the problem.
■ Supports the Easy Energy Saving E function. When used with switches or devices that support IEEE 802.3az (EEE standard), this unit automatically and effortlessly saves energy. Significant power savings can be achieved when the computer is shut down.
■ The Easy Energy Saving E function saves up to approximately 83% of power. [Measurement method]: Data is transferred from the load device to this unit. Power consumption is compared after one minute when all ports are connected and when not connected.
■ The LED light is positioned so that it is visible from both the front and top, making it easy to see the lit status.
■ The magnet on the back of the unit can be used to mount it on a metal surface. It can also be installed horizontally or on a wall using the wall-mounting hole on the back of the unit. Flexible configuration to suit your environment.
■ Supports jumbo frames, allowing for faster data transfer between jumbo frame-compatible devices.
■Transmission Speed: 1000Mbps (1000BASE-T), 100Mbps (100BASE-TX), 10Mbps (10BASE-T)
■Compliant Standards: IEEE 802.3ab, IEEE 802.3u, IEEE 802.3
■Switching Method: Store-and-Forward
■Communication Method: Full-Duplex, Half-Duplex
■Flow Control: IEEE 802.3x (Full-Duplex), Backpressure (Half-Duplex)
■Number of Ports: 8
■Auto MDI/MDI-X: Supported
■Auto-negotiation: Supported
■Connector type: RJ-45 x 8
■Compatible cables: 1000BASE-T: UTP Category 5e or higher, 100BASE-TX: UTP Category 5 or higher, 10BASE-T: UTP Category 3 or higher
■Buffer memory: 512Kbytes (dynamically allocated to each port)
■Switching fabric: 16.0Gbps
■Maximum packet forwarding capacity: 11.9Mpps
■Packet forwarding speed: 1,488,09 5 packets/second (1000Mbps), 148,809 packets/second (100Mbps), 14,880 packets/second (10Mbps) n
■Number of MAC addresses registered: 8,192 (total for all ports) n
■Jumbo frames: Supported (15Kbytes) n
■Non-blocking: Supported n
■EAP transparency: Supported n
■BPDU transparency: Supported n
■Loop detection and prevention: Loop detection n
■PoE: Not supported n
■Power supply: Dedicated AC adapter n
■Input voltage: AC 100-240V ±10% 50/60Hz n
■Power consumption: 3.6W (max) n
■Heat output: Approximately 13.0kJ/h (max) n
■Power saving: Supports Easy Energy Saving E (IEEE 802.3az)
■Energy consumption efficiency: 0.5W/Gbps
■Maximum effective transmission speed: 8.0Gbps
■Port speed and number of ports at time of measurement: 1Gbps: 8 ports
■External dimensions: Approx. 140.0mm wide x 84.5mm deep x 34.0mm high (main unit only)
■Weight: Approx. 190g (main unit only)
■Housing material (color): Plastic (white)
■Theft Security: No security slot. Mounting Method: Horizontal installation, wall mounting, magnet. Wall Mounting Holes: Yes. Operating Environment: Temperature: 0°C to 40°C, Humidity: 10% to 90% (non-condensing). Storage Environment: Temperature: -40°C to 70°C, Humidity: 5% to 90% (non-condensing). MTBF: 269,000 hours @ 25°C, 219,000 hours @ 40°C. Compliance: EU. RoHS Compliant (10 Substances)
■Compliant Standards: VCCI Class B
■Accessories: Dedicated AC Adapter (approx. 1.5m): 1 pc, Worry-Free Use: 1 pc
■Warranty Period: 1 Year
■Maintenance Service | Delivery: N/A
■Maintenance Service | Send-Back Extension: N/A
■Optional Accessories | Magnets: N/A
■This is a 8-port switching hub with a plastic housing, compatible with Gigabit (1000BASE-T) and powered by an AC adapter.
■Equipped with "Auto MDI/MDI-X" functionality on all ports, automatically distinguishing between straight and crossover cables. This prevents connection errors.
■The quiet, fanless design makes it ideal for use in quiet rooms.
■The main board does not use electrolytic capacitors. This ensures a long lifespan and ensures reliable operation.
■The AC adapter uses a tracking-resistant outlet plug. This prevents tracking even after long-term installation.
■The loop detection function is included. The flashing LED light alerts you to network loops and prompts you to resolve the problem.
■ Supports the Easy Energy Saving E function. When used with switches or devices that support IEEE 802.3az (EEE standard), this unit automatically and effortlessly saves energy. Significant power savings can be achieved when the computer is shut down.
■ The Easy Energy Saving E function saves up to approximately 83% of power. [Measurement method]: Data is transferred from the load device to this unit. Power consumption is compared after one minute when all ports are connected and when not connected.
■ The LED light is positioned so that it is visible from both the front and top, making it easy to see the lit status.
■ The magnet on the back of the unit can be used to mount it on a metal surface. It can also be installed horizontally or on a wall using the wall-mounting hole on the back of the unit. Flexible configuration to suit your environment.
■ Supports jumbo frames, allowing for faster data transfer between jumbo frame-compatible devices.
Package
Size (Approx.):
Size (Approx.):
100x67x194 mm
Package
Weight (Approx.):
Weight (Approx.):
340 g
5,878 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-07-22
Quantity :
Reference Price from Other Stores
