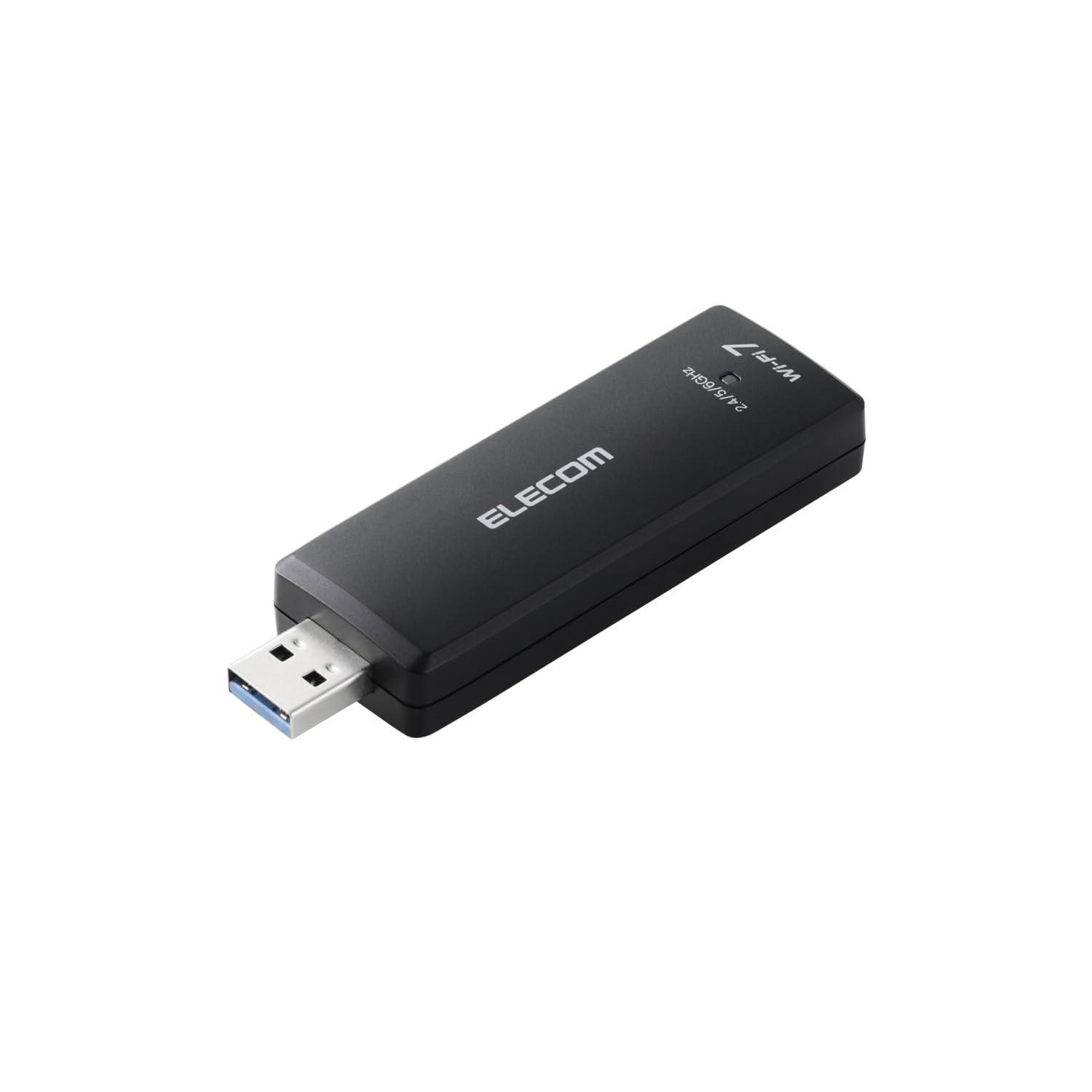

ELECOM Wi-Fi 7 Wireless LAN Adapter 2880 + 2880 + 688Mbps USB 3.0 Compatible WDC-BE28TU3-B
JAN
4549550328944
ASIN
B0DQTSYL75
Maker
Model No.
WDC-BE28TU3-B
Color
Size
Description
ELECOM Wireless LAN Adapter 688Mbps USB 3.0 Compatible WDC-BE28TU3-B
\
■Supported OS (Windows): Windows 11/10 (Home/Pro) ※Compatible with Windows 11 version 24H2 or later, Windows 10 version 22H2 or later\
■ OS Notes: ※For OS versions where manufacturer support has ended, functionality beyond basic features may not be guaranteed, and support may not be available.\
■Wireless Standards: IEEE 802.11be/IEEE 802.11ax/IEEE 802.11ac/IEEE 802.11n/IEEE 802.11g/IEEE 802.11b/IEEE 802.11a\
■Wireless Transmission Method: IEEE 802.11be: MIMO-OFDMA, IEEE 802.11ax: MIMO-OFDMA, IEEE 802.11ac: MIMO-OFDM, IEEE 802.11n: MIMO-OFDM, IEEE 802.11g: OFDM, IEEE 802.11b: DS-SS, IEEE 802.11a: OFDM\
■Wireless Transmission Speed (Theoretical): IEEE 802.11be: Up to 2880 Mbps, IEEE 802.11ax: Maximum 2402 Mbps, IEEE 802.11ac: Maximum 867 Mbps, IEEE 802.11n: Maximum 300 Mbps, IEEE 802.11g: Maximum 54 Mbps, IEEE 802.11b: Maximum 11 Mbps, IEEE 802.11a: Maximum 54 Mbps\
■Frequency Bands: 2.4GHz Band: 2, 400~2,484MHz, 5.2GHz Band (W52): 5, 150~5,250MHz, 5.3GHz Band (W53): 5, 250~5,350MHz, 5.6GHz Band (W56): 5, 470–5,730 MHz, 6 GHz band: 5,925–6,425 MHz\
■Channels: 2.4GHz band: 1–13ch, 5GHz band (W52/W53/W56): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/ 132/136/140/144ch, 6GHz band: 1/5/9/13/17/21/25/29/33/37/41/45/49/53/57/61/65/69/73/77/81/85/89/93ch\
■Wireless Security: WPA3 Personal (AES)/WPA2 Personal (AES)/WPA Personal (TKIP)/WEP (64-bit/128-bit) ※WPS functionality is unavailable when using WPA3.\
■Beamforming: Supported (Rx beamforming only)\
■MU-MIMO: Supported\
■Other Wireless Features: MLO (2.4GHz, 5GHz, 6GHz), Multi-RU, Preamble Puncturing, TWT ※MLO Supported Mode: EMLSR ※MLO is only supported on Windows 11 (Home/Pro) Version 24H2 or later.\
■Configuration Method: WPS (Software Method) ※Not supported on 6GHz.\
■Access Mode: Infrastructure\
■Antennas (Number): 2 built-in antennas for transmission/reception (shared for 2.4GHz/5GHz/6GHz)\
■Transmit Power: 10mW/MHz or less\
■Supported USB Standard: USB 5Gbps (USB 3.0)/USB 2.0 ※For communication in the 6GHz/5GHz bands, connect to a USB 5Gbps (USB 3.0) port to achieve sufficient speed. ※This product is compatible with PCs, tablet PCs
\
■Supported OS (Windows): Windows 11/10 (Home/Pro) ※Compatible with Windows 11 version 24H2 or later, Windows 10 version 22H2 or later\
■ OS Notes: ※For OS versions where manufacturer support has ended, functionality beyond basic features may not be guaranteed, and support may not be available.\
■Wireless Standards: IEEE 802.11be/IEEE 802.11ax/IEEE 802.11ac/IEEE 802.11n/IEEE 802.11g/IEEE 802.11b/IEEE 802.11a\
■Wireless Transmission Method: IEEE 802.11be: MIMO-OFDMA, IEEE 802.11ax: MIMO-OFDMA, IEEE 802.11ac: MIMO-OFDM, IEEE 802.11n: MIMO-OFDM, IEEE 802.11g: OFDM, IEEE 802.11b: DS-SS, IEEE 802.11a: OFDM\
■Wireless Transmission Speed (Theoretical): IEEE 802.11be: Up to 2880 Mbps, IEEE 802.11ax: Maximum 2402 Mbps, IEEE 802.11ac: Maximum 867 Mbps, IEEE 802.11n: Maximum 300 Mbps, IEEE 802.11g: Maximum 54 Mbps, IEEE 802.11b: Maximum 11 Mbps, IEEE 802.11a: Maximum 54 Mbps\
■Frequency Bands: 2.4GHz Band: 2, 400~2,484MHz, 5.2GHz Band (W52): 5, 150~5,250MHz, 5.3GHz Band (W53): 5, 250~5,350MHz, 5.6GHz Band (W56): 5, 470–5,730 MHz, 6 GHz band: 5,925–6,425 MHz\
■Channels: 2.4GHz band: 1–13ch, 5GHz band (W52/W53/W56): 36/40/44/48/52/56/60/64/100/104/108/112/116/120/124/128/ 132/136/140/144ch, 6GHz band: 1/5/9/13/17/21/25/29/33/37/41/45/49/53/57/61/65/69/73/77/81/85/89/93ch\
■Wireless Security: WPA3 Personal (AES)/WPA2 Personal (AES)/WPA Personal (TKIP)/WEP (64-bit/128-bit) ※WPS functionality is unavailable when using WPA3.\
■Beamforming: Supported (Rx beamforming only)\
■MU-MIMO: Supported\
■Other Wireless Features: MLO (2.4GHz, 5GHz, 6GHz), Multi-RU, Preamble Puncturing, TWT ※MLO Supported Mode: EMLSR ※MLO is only supported on Windows 11 (Home/Pro) Version 24H2 or later.\
■Configuration Method: WPS (Software Method) ※Not supported on 6GHz.\
■Access Mode: Infrastructure\
■Antennas (Number): 2 built-in antennas for transmission/reception (shared for 2.4GHz/5GHz/6GHz)\
■Transmit Power: 10mW/MHz or less\
■Supported USB Standard: USB 5Gbps (USB 3.0)/USB 2.0 ※For communication in the 6GHz/5GHz bands, connect to a USB 5Gbps (USB 3.0) port to achieve sufficient speed. ※This product is compatible with PCs, tablet PCs
Package
Size (Approx.):
Size (Approx.):
84x27x175 mm
Package
Weight (Approx.):
Weight (Approx.):
60 g
15,740 JPY (Including Tax)
