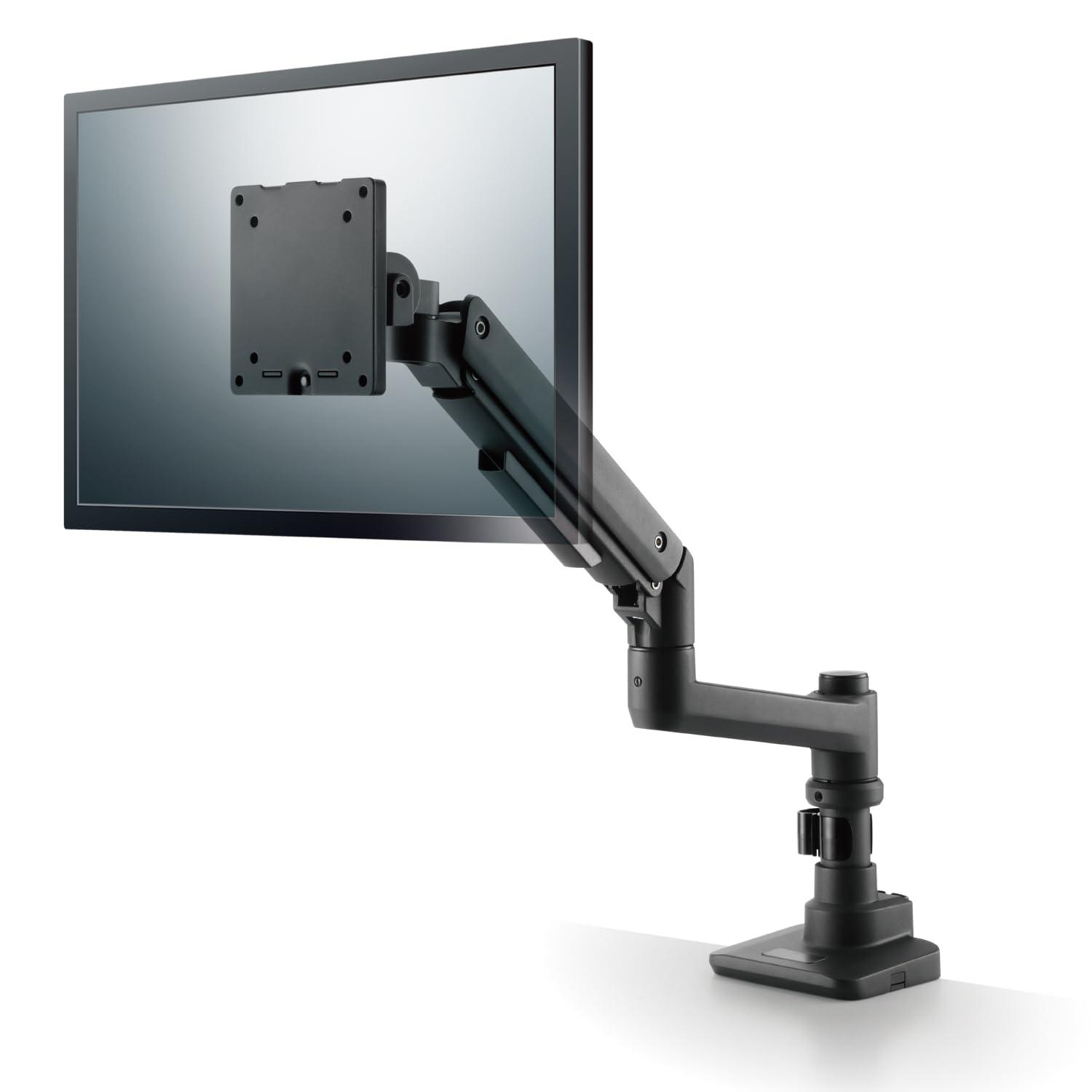

ELECOM Monitor Arm Single Long Pole Gas Spring 17-49 Inch Compatible VESA Standard Compatible High Load Capacity Black DPA-SL09BK

4549550344296

B0DMZ37WGM

DPA-SL09BK

ELECOM Monitor Arm - Compatible with 17 to 49 Inch Monitors - VESA Standard Compliant - DPA-SL09BK
\


■Compatible Size: 17 to 49 inches\


■Load Capacity: Approx. 2kg to 20kg\


■Dimensions: Width approx. 556mm × Depth approx. 132mm × Height approx. 555mm\


■Weight: Approx. 3.69kg\


■Color: Black\


■Number of Screens Supported: 1 screen\


■Materials: Aluminum, Steel, Plastic\


■Movement Mechanism: Gas Spring\


■Compatible Standards: VESA Standard (75mm x 75mm, 100mm x 100mm)\


■Movement Range: Pan: Left 90°/Right 90°, Rotation: Left 180°/Right 180°, Tilt: Up 50°/Down 20°\


■Mountable Desktop Thickness: Clamp (grip mounting): Approx. 12mm~50mm, Grommet (through-hole mounting): Approx. 12mm~50mm\


■Mounting Method: Clamp-on / Grommet-through\


■Number of Axes: 5-axis\


■Set Contents: Pole ×1, Base ×1, Upper Arm ×1, Lower Arm ×1, VESA Mount ×1, U-shaped Plate ×1, Lower Plate for Grommet ×1, Cable Holder (A) ×1, Cable Holder (B) ×1, Spacer ×1\


■Set Contents: M8×25 Screw ×1, M8×50 Bolt ×1, M8×130 Bolt ×1, Hex Wrench (Small) ×1, Hex Wrench (Large) ×1, M4×12 Screw ×4, M5×12 Screw ×4, Washers ×4\


■This single monitor arm features a high-load-bearing gas spring pole mount compatible with 17-inch to 49-inch monitors.\


■Maximize desk space by utilizing the area beneath your monitor.\


■Gas spring mechanism allows smooth, effortless movement.\


■Freely adjust your monitor's position to your preferred viewing angle.\


■Single-arm type supporting one monitor.\


■Features a 5-axis movable arm with a wide range of motion and an easy-to-adjust height column.\


■Compatible with monitors adhering to VESA standards (75mm×75mm, 100mm×100mm).\


■Simply attach the VESA mount to the monitor's back, hook it onto the monitor arm's hook, and secure it with screws.\


■While typical desk top mounting requires reaching underneath, this product features a design allowing easy top-down securing.\


■Choose between two mounting methods: a clamp-style that secures by clamping onto the desk top, or a grommet-style that secures by drilling a hole in the desk top and passing a bolt through.\


■Once the monitor's viewing angle is set, tighten the screws at the connection points securely.\


■※If the monitor tilts upward, adjust the spring located at the back of the monitor.\


■Includes an integrated cable holder with the arm for neatly organizing cables from the monitor.\


■This product features smooth movement after monitor installation. Adjusting the gas spring strength allows you to control the stiffness of vertical movement.\


■This product meets at least one of our in-house environmental certification standards and displays the ‘THINK ECOLOGY’ mark.\


■Committed to environmental conservation, this product's packaging consists solely of paper, cardboard, and plastic bags.\
ELECOM General Information Center\
TEL. 0570-084-465\
FAX. 0570-050-012\
Hours: 10:00 AM to 7:00 PM, Open Year-Round
Brand Name: ELECOM
Material: Aluminum
Compatible with monitors sized 17 inches to 49 inches

206x112x427 mm

4320 g
