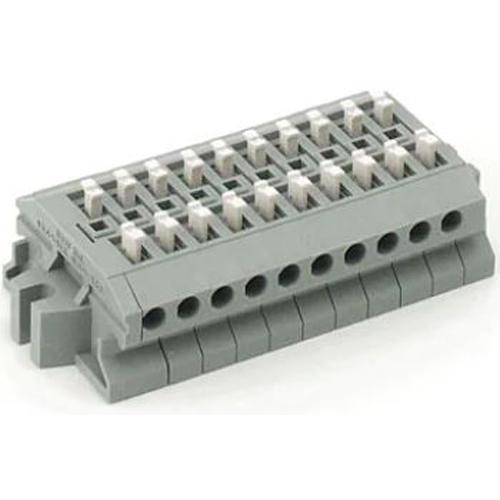

ESCO [AC/DC 300V/10A] Screwless Terminal Block, 10-Pole, for Relaying EA940DM-70
JAN
4550061097007
ASIN
B0BWR6GK2T
Maker
Model No.
EA940DM-70
Color
Size
30 × 18.6 mm
Description
▪️Model: ML-1700-A
▪️Poles: 10-pole
▪️Size (Width): 67.5mm
▪️Rated: AC/DC 300V-10A
▪️Acceptable Wire: Solid wire: φ0.4~1.2mm; Stranded wire: 0.3~1.25mm² (single strand diameter φ0.18mm or larger)
▪️Size (Depth × Height): 30×18.6mm
▪️Material: Body: Nylon 66 (UL94V-0); Button: Modified PPE (UL94V-0)
▪️Insulation resistance: DC500V, 100MΩ or higher
▪️Withstand voltage: AC2000V (1 minute)
▪️Certifications: UL standard (Field Wiring compliant)・CSA standard・TUV standard (Compliant with IEC60947-7-1)
▪️Standard Wire Stripping Length: 10mm
▪️Recommended Compatible Tool: Flathead Screwdriver (Shaft Diameter φ3mm, Blade Width 2.6mm) ※Any tool capable of pressing the button may be used
▪️Relay Type
▪️Check Hole Provided
※※Product for Professional Use Only※※
Brand Name: Esco
Model: ML-1700-A
Poles: 10-pole
Size (Width): 67.5mm
Rated: AC/DC 300V-10A
Acceptable Wire: Solid wire/φ0.4–1.2mm Stranded wire/0.3–1.25mm² (single strand diameter φ0.18mm or larger)
Size (Depth × Height): 30×18.6mm
Material: Body / Nylon 66 (UL94V-0) Button / Modified PPE (UL94V-0)
Insulation Resistance: DC500V, 100MΩ or more
Withstand Voltage: AC2000V (1 minute)
Certifications: UL Standard (Field Wiring Compliant)・CSA Standard・TUV Standard (Compliant with IEC60947-7-1)
4550061097007
ESCO [AC/DC 300V/10A] Screwless Terminal Block, Intermediate, 10-Pole EA940DM-70
(text created at , 2025-05-10)
▪️Poles: 10-pole
▪️Size (Width): 67.5mm
▪️Rated: AC/DC 300V-10A
▪️Acceptable Wire: Solid wire: φ0.4~1.2mm; Stranded wire: 0.3~1.25mm² (single strand diameter φ0.18mm or larger)
▪️Size (Depth × Height): 30×18.6mm
▪️Material: Body: Nylon 66 (UL94V-0); Button: Modified PPE (UL94V-0)
▪️Insulation resistance: DC500V, 100MΩ or higher
▪️Withstand voltage: AC2000V (1 minute)
▪️Certifications: UL standard (Field Wiring compliant)・CSA standard・TUV standard (Compliant with IEC60947-7-1)
▪️Standard Wire Stripping Length: 10mm
▪️Recommended Compatible Tool: Flathead Screwdriver (Shaft Diameter φ3mm, Blade Width 2.6mm) ※Any tool capable of pressing the button may be used
▪️Relay Type
▪️Check Hole Provided
※※Product for Professional Use Only※※
Brand Name: Esco
Model: ML-1700-A
Poles: 10-pole
Size (Width): 67.5mm
Rated: AC/DC 300V-10A
Acceptable Wire: Solid wire/φ0.4–1.2mm Stranded wire/0.3–1.25mm² (single strand diameter φ0.18mm or larger)
Size (Depth × Height): 30×18.6mm
Material: Body / Nylon 66 (UL94V-0) Button / Modified PPE (UL94V-0)
Insulation Resistance: DC500V, 100MΩ or more
Withstand Voltage: AC2000V (1 minute)
Certifications: UL Standard (Field Wiring Compliant)・CSA Standard・TUV Standard (Compliant with IEC60947-7-1)
4550061097007
ESCO [AC/DC 300V/10A] Screwless Terminal Block, Intermediate, 10-Pole EA940DM-70
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
1,763 JPY (Including Tax)
Stock :
10
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
