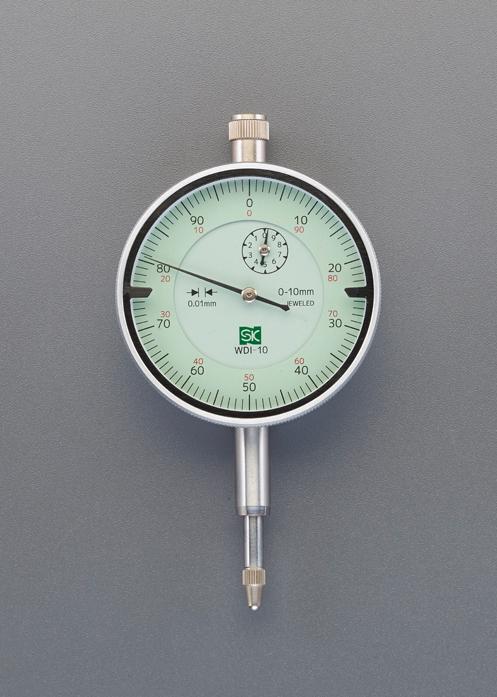

ESCO Dial Gauge 10mm/0.01/58mm EA725MA-1A
JAN
4550061278437
ASIN
B08PB577HK
Maker
Model No.
EA725MA-1A
Color
Size
Description
Brand Name: Esco
Two types of back covers (flat type, type with mounting ears)
Applications: Measuring surface irregularities, workpiece mounting quality, shaft runout, and angular displacement
Dial diameter: φ58 mm Total length: 112 mm Stem diameter: φ8 mm Probe length: 21 mm Weight: 180 g Material: Body: Steel Probe tip: Steel Graduation: 0.01 mm Measuring range: 0~10 mm Scale specification: 0~10 mm
Probe Length: 21mm Weight: 180g Material: Body: Steel Probe Tip: Steel Graduation: 0.01mm
Measuring Range: 0~10mm Scale Specification: ±0-100 Return Error: 5μm Measuring Force: 1.5N or less
Long needle per revolution: 1mm 1/10 revolution adjacent error: 8μm Full measurement range indication error: ±20μm Repeatability precision: 5μm
Set contents/accessories: Two types of back covers (flat type, flange type) Limit needle installed Scale plate is green
4550061278437
ESCO Dial Gauge 10mm/0.01/58mm EA725MA-1A
(text created at , 2025-05-09)
Two types of back covers (flat type, type with mounting ears)
Applications: Measuring surface irregularities, workpiece mounting quality, shaft runout, and angular displacement
Dial diameter: φ58 mm Total length: 112 mm Stem diameter: φ8 mm Probe length: 21 mm Weight: 180 g Material: Body: Steel Probe tip: Steel Graduation: 0.01 mm Measuring range: 0~10 mm Scale specification: 0~10 mm
Probe Length: 21mm Weight: 180g Material: Body: Steel Probe Tip: Steel Graduation: 0.01mm
Measuring Range: 0~10mm Scale Specification: ±0-100 Return Error: 5μm Measuring Force: 1.5N or less
Long needle per revolution: 1mm 1/10 revolution adjacent error: 8μm Full measurement range indication error: ±20μm Repeatability precision: 5μm
Set contents/accessories: Two types of back covers (flat type, flange type) Limit needle installed Scale plate is green
4550061278437
ESCO Dial Gauge 10mm/0.01/58mm EA725MA-1A
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
77x59x134 mm
Package
Weight (Approx.):
Weight (Approx.):
330 g
7,021 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
