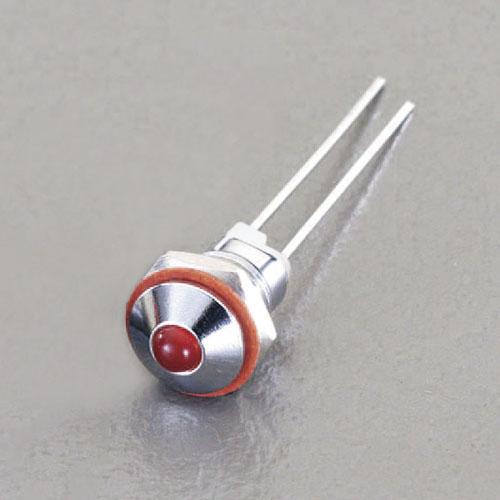

φ8.1mm Indicator LED Bracket (Red)
JAN
4550061445532
ASIN
B09SHXSDZZ
Maker
Model No.
EA940DB-78RA
Color
Size
Description
Brand Name: Esco
Panel Cutout...φ8.1mm
Terminal Hardware...LED Lead Wire (□0.5)
Panel Mounting Method...Nut Clamping
Mounting Plate Thickness...1.5–3.5mm
Model...DB1FCH
Color…Body Color: CH (Chrome) Lens Color (Red)
Precautions for Use: ① This product does not incorporate a protective resistor. Please connect a protective resistor in series according to the operating voltage. ② Pay attention to polarity when connecting. ③ When bending the lead wire, bend it at least 2mm from the bottom surface. Soldering should be performed after bending.
4550061445532
φ8.1mm Indicator LED Bracket (Red)
(text created at , 2025-05-10)
Panel Cutout...φ8.1mm
Terminal Hardware...LED Lead Wire (□0.5)
Panel Mounting Method...Nut Clamping
Mounting Plate Thickness...1.5–3.5mm
Model...DB1FCH
Color…Body Color: CH (Chrome) Lens Color (Red)
Precautions for Use: ① This product does not incorporate a protective resistor. Please connect a protective resistor in series according to the operating voltage. ② Pay attention to polarity when connecting. ③ When bending the lead wire, bend it at least 2mm from the bottom surface. Soldering should be performed after bending.
4550061445532
φ8.1mm Indicator LED Bracket (Red)
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
657 JPY (Including Tax)
Stock :
24
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
