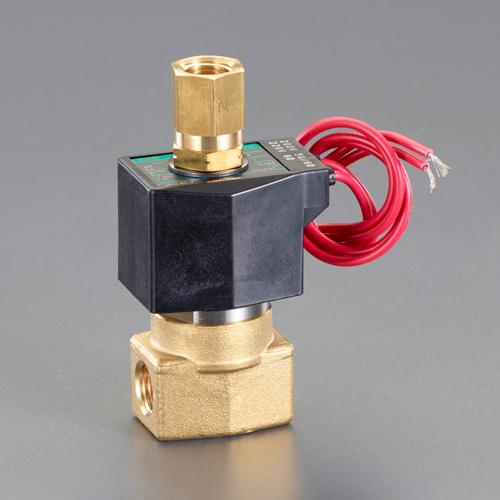

ESCO AC200V・Rc1/4" 1.5mm 3-Way Solenoid Valve EA153HK-4
JAN
4550061476307
ASIN
B092QW58C1
Maker
Model No.
EA153HK-4
Color
Size
Description
▪️Rated Voltage…AC200V
▪️Fluid…Air, Water, Low Vacuum, Kerosene (up to 60°C)
▪️Maximum Working Pressure…1MPa
▪️Ambient Temperature…-20~60°C
▪️Fluid Temperature…-10~60°C (no freezing)
▪️Water Resistance…25MPa (water pressure)
▪️Heat resistance class…Class 130 (B)
▪️Valve structure…Direct-acting poppet structure
▪️Material…Body: Brass Seal: Nitrile rubber
▪️Connection size…Rc1/4
▪️Orifice diameter (Φmm)…2
▪️Weight (g)…360
▪️Switching direction…3-way
▪️AG31・41 Series
Brand Name: Esco
Rated Voltage…AC200V
Operating Fluid…Air・Water・Low Vacuum・Kerosene (up to 60°C)
Maximum Operating Pressure…1MPa
Ambient Temperature…-20 to 60°C
Fluid Temperature…-10 to 60°C (no freezing)
4550061476307
ESCO AC200V・Rc1/4" 1.5mm 3-Way Solenoid Valve EA153HK-4
(text created at , 2025-05-09)
▪️Fluid…Air, Water, Low Vacuum, Kerosene (up to 60°C)
▪️Maximum Working Pressure…1MPa
▪️Ambient Temperature…-20~60°C
▪️Fluid Temperature…-10~60°C (no freezing)
▪️Water Resistance…25MPa (water pressure)
▪️Heat resistance class…Class 130 (B)
▪️Valve structure…Direct-acting poppet structure
▪️Material…Body: Brass Seal: Nitrile rubber
▪️Connection size…Rc1/4
▪️Orifice diameter (Φmm)…2
▪️Weight (g)…360
▪️Switching direction…3-way
▪️AG31・41 Series
Brand Name: Esco
Rated Voltage…AC200V
Operating Fluid…Air・Water・Low Vacuum・Kerosene (up to 60°C)
Maximum Operating Pressure…1MPa
Ambient Temperature…-20 to 60°C
Fluid Temperature…-10 to 60°C (no freezing)
4550061476307
ESCO AC200V・Rc1/4" 1.5mm 3-Way Solenoid Valve EA153HK-4
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
6,200 JPY (Including Tax)
