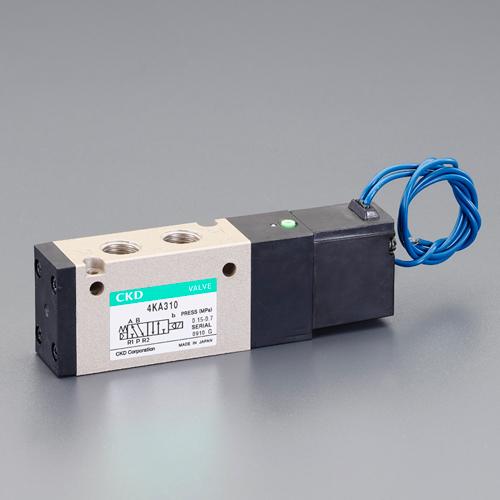

ESCO AC100V/Rc1/8 5-Way Solenoid Valve Direct Mount EA153HL-3
JAN
4550061477205
ASIN
B092L9DCXD
Maker
Model No.
EA153HL-3
Color
Size
Description
▪️Rated voltage…AC100V
▪️Starting current…0.056/0.044A
▪️Operating fluid…Compressed air
▪️Maximum operating pressure…0.7MPa
▪️Fluid temperature…5~60℃
▪️Ambient temperature…-5~50℃ (No freezing)
▪️Suitable cylinder diameter…φ40~80mm
▪️Connection Size…Rc1/8
▪️Material…Aluminum Alloy Die-Cast
▪️Weight (g)…115
▪️Switching Direction…5-way
▪️Specification…4KA
▪️Improved wear resistance and sliding properties of sliding parts achieve significantly extended life and stabilized responsiveness
▪️ Pressure Rating…1.05MPa
Brand Name: Esco
Rated Voltage…AC100V
Starting Current…0.056/0.044A
Operating Fluid…Compressed Air
Maximum Operating Pressure…0.7MPa
Fluid Temperature…5 to 60°C
4550061477205\ nB092L9DCXD
ESCO AC100V･Rc1/8 5-Way Solenoid Valve Direct Mount EA153HL-3
(text created at , 2025-11-11)
▪️Starting current…0.056/0.044A
▪️Operating fluid…Compressed air
▪️Maximum operating pressure…0.7MPa
▪️Fluid temperature…5~60℃
▪️Ambient temperature…-5~50℃ (No freezing)
▪️Suitable cylinder diameter…φ40~80mm
▪️Connection Size…Rc1/8
▪️Material…Aluminum Alloy Die-Cast
▪️Weight (g)…115
▪️Switching Direction…5-way
▪️Specification…4KA
▪️Improved wear resistance and sliding properties of sliding parts achieve significantly extended life and stabilized responsiveness
▪️ Pressure Rating…1.05MPa
Brand Name: Esco
Rated Voltage…AC100V
Starting Current…0.056/0.044A
Operating Fluid…Compressed Air
Maximum Operating Pressure…0.7MPa
Fluid Temperature…5 to 60°C
4550061477205\ nB092L9DCXD
ESCO AC100V･Rc1/8 5-Way Solenoid Valve Direct Mount EA153HL-3
(text created at , 2025-11-11)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
11,938 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-14
