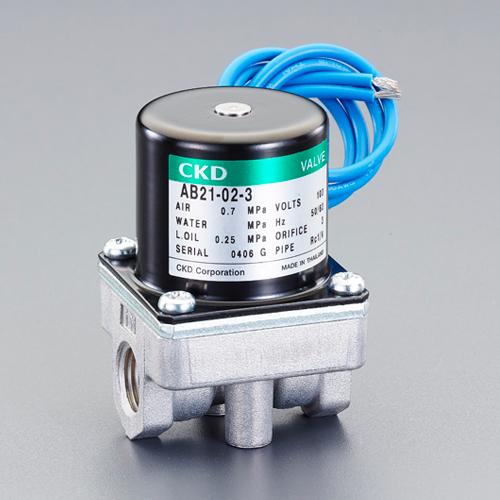

ESCO AC100V・Rc1/4 2.00mm 2-Way Solenoid Valve EA153HA-33
JAN
4550061487334
ASIN
B092QW6DF7
Maker
Model No.
EA153HA-33
Color
Size
Description
ESCO-AC100V･Rc1-2-00mm-EA153HA-33
▪️Rated Voltage…AC100V
▪️Operating Fluid…Air, Water, Kerosene, Oil (up to 60°C)
▪️Maximum Operating Pressure…1.5MPa
▪️Ambient Temperature…-20~50°C
▪️Fluid Temperature…-10~40℃ (No freezing)
▪️Pressure Resistance…3MPa (Water pressure)
▪️Heat Resistance Class…Class 130 (B)
▪️Valve Structure…Direct-acting poppet structure
▪️Connection Size…Rc1/4
▪️Orifice Diameter (Φmm)…2.0
▪️Weight (g)…230
▪️Switching Direction…2-way
▪️Material…Body: Aluminum Seal: Nitrile Rubber
▪️AB21 Series
Brand Name: Esco
Material: Rubber
Rated Voltage…AC100V
Operating Fluid…Air, Water, Kerosene, Oil (up to 60℃)
Maximum Operating Pressure…1.5MPa
Ambient Temperature…-20 to 50℃
Fluid Temperature…-10 to 40℃ (No freezing)
4550061487334
ESCO AC100V･Rc1/4 2.00mm 2-Way Solenoid Valve EA153HA-33
