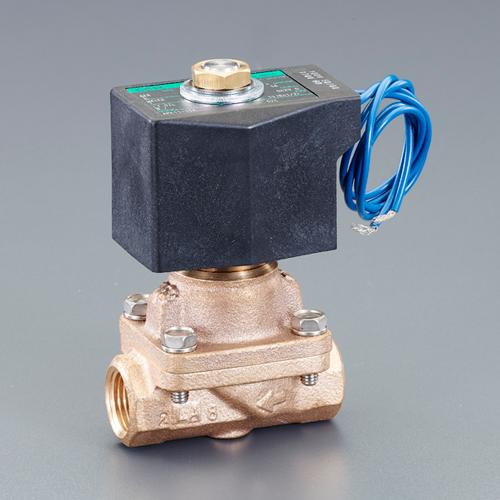

ESCO AC100V・Rc1/4 2-Way Solenoid Valve Pilot Kick Type EA153HC-1

4550061510667

B092QSV59H

EA153HC-1

▪️Rated voltage…AC100V\
▪️Operating fluid…Air, water, low vacuum, kerosene, oil (up to 60°C)\
▪️Maximum operating pressure…2MPa\
▪️Ambient temperature…-10 to 60°C\

▪️Fluid Temperature…-10 to 60°C (no freezing)\
▪️Pressure Resistance…4 MPa (water pressure)\
▪️Heat Resistance Class…Class 130 (B)\
▪️Valve Structure…Pilot-operated poppet structure, piston driven\
▪️Materials…Body: Bronze, Seal: Nitrile rubber\
▪️Connection Size…Rc1/4\
▪️Orifice Diameter (Φmm)…12\
▪️Weight (g)…700\
▪️Switching Direction…2-way\
▪️APK11 Series
Brand Name: Esco
Material: Rubber
Rated Voltage…AC100V
Operating Fluid…Air, Water, Low Vacuum, Kerosene, Oil (up to 60°C)
Maximum Operating Pressure…2MPa
Ambient Temperature…-10 to 60°C
Fluid Temperature…-10 to 60°C (no freezing)
4550061510667\ nB092QSV59H
ESCO AC100V･Rc1/4 2-Way Solenoid Valve Pilot Kick Type EA153HC-1
