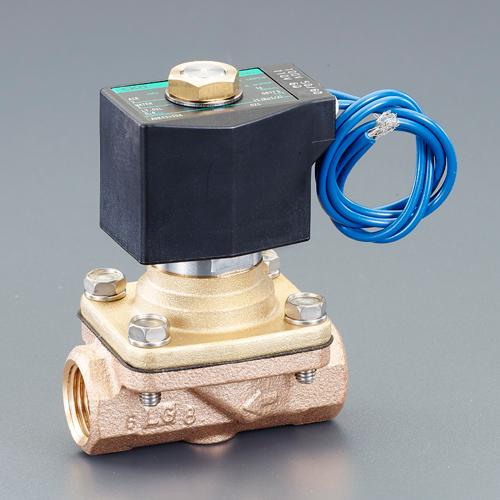

ESCO AC100V・Rc1/4" 2-Way Solenoid Valve Pilot Kick Type EA153HC-21
JAN
4550061515082
ASIN
B092QX7LGL
Maker
Model No.
EA153HC-21
Color
Size
Description
▪️Rated voltage…AC100V
▪️Operating fluids…Air, water, low vacuum, kerosene, oil (up to 60°C)
▪️Maximum operating pressure…2 MPa
▪️Ambient temperature…-10 to 60°C
▪️Fluid Temperature…-10 to 60°C (no freezing)
▪️Pressure Resistance…4 MPa (water pressure)
▪️Heat Resistance Class…Class 130 (B)
▪️Valve Structure…Pilot-operated poppet structure, diaphragm driven
▪️Materials…Body: Bronze, Seal: Nitrile rubber
▪️Connection Size…Rc1/4
▪️Orifice Diameter (Φmm)…12
▪️Weight (g)…650
▪️Switching Direction…2-way
▪️ADK11・12 Series
Brand Name: Esco
Rated Voltage…AC100V
Operating Fluids…Air・Water・Low Vacuum・Kerosene・Oil (up to 60℃)
Maximum Operating Pressure…2MPa
Ambient Temperature…-10 to 60℃
Fluid Temperature…-10 to 60℃ (no freezing)
4550061515082
ESCO AC100V・Rc1/4" 2-Way Solenoid Valve Pilot Kick Type EA153HC-21
(text created at , 2025-08-12)
▪️Operating fluids…Air, water, low vacuum, kerosene, oil (up to 60°C)
▪️Maximum operating pressure…2 MPa
▪️Ambient temperature…-10 to 60°C
▪️Fluid Temperature…-10 to 60°C (no freezing)
▪️Pressure Resistance…4 MPa (water pressure)
▪️Heat Resistance Class…Class 130 (B)
▪️Valve Structure…Pilot-operated poppet structure, diaphragm driven
▪️Materials…Body: Bronze, Seal: Nitrile rubber
▪️Connection Size…Rc1/4
▪️Orifice Diameter (Φmm)…12
▪️Weight (g)…650
▪️Switching Direction…2-way
▪️ADK11・12 Series
Brand Name: Esco
Rated Voltage…AC100V
Operating Fluids…Air・Water・Low Vacuum・Kerosene・Oil (up to 60℃)
Maximum Operating Pressure…2MPa
Ambient Temperature…-10 to 60℃
Fluid Temperature…-10 to 60℃ (no freezing)
4550061515082
ESCO AC100V・Rc1/4" 2-Way Solenoid Valve Pilot Kick Type EA153HC-21
(text created at , 2025-08-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
11,562 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
