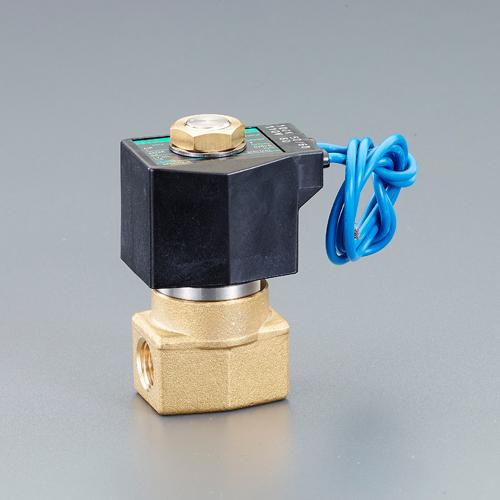

ESCO AC100V・Rc1/8" 1.50mm 2-Way Solenoid Valve EA153HA-1
JAN
4550061517673
ASIN
B092QTH66C
Maker
Model No.
EA153HA-1
Color
Size
Description
▪️Rated Voltage…AC100V
▪️Fluid…Air, Water, Low Vacuum, Kerosene, Oil (up to 60°C)
▪️Maximum Working Pressure…5MPa
▪️Ambient Temperature…-20 to 60°C
▪️Fluid Temperature…-10 to 60°C (no freezing)
▪️Pressure Resistance…25MPa (water pressure)
▪️Heat resistance class…Class 130 (B)
▪️Valve structure…Direct-acting poppet structure
▪️Material…Body: Bronze Seal: Nitrile rubber
▪️Connection size…Rc1/8
▪️Orifice diameter (Φmm)…1.5
▪️Weight (g)…350
▪️Switching direction…2-way
▪️AB31・41 Series
Brand Name: Esco
Material: Rubber
Rated Voltage…AC100V
Operating Fluid…Air・Water・Low Vacuum・Kerosene・Oil (up to 60℃)
Maximum Operating Pressure…5MPa
Ambient Temperature…-20～60℃
Fluid Temperature…-10～60℃ (No freezing)
4550061517673
ESCO AC100V・Rc1/8" 1.50mm 2-Way Solenoid Valve EA153HA-1
(text created at , 2025-05-11)
▪️Fluid…Air, Water, Low Vacuum, Kerosene, Oil (up to 60°C)
▪️Maximum Working Pressure…5MPa
▪️Ambient Temperature…-20 to 60°C
▪️Fluid Temperature…-10 to 60°C (no freezing)
▪️Pressure Resistance…25MPa (water pressure)
▪️Heat resistance class…Class 130 (B)
▪️Valve structure…Direct-acting poppet structure
▪️Material…Body: Bronze Seal: Nitrile rubber
▪️Connection size…Rc1/8
▪️Orifice diameter (Φmm)…1.5
▪️Weight (g)…350
▪️Switching direction…2-way
▪️AB31・41 Series
Brand Name: Esco
Material: Rubber
Rated Voltage…AC100V
Operating Fluid…Air・Water・Low Vacuum・Kerosene・Oil (up to 60℃)
Maximum Operating Pressure…5MPa
Ambient Temperature…-20～60℃
Fluid Temperature…-10～60℃ (No freezing)
4550061517673
ESCO AC100V・Rc1/8" 1.50mm 2-Way Solenoid Valve EA153HA-1
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
4,756 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
