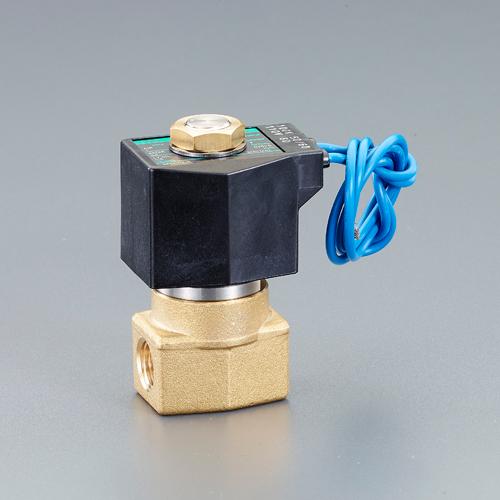

ESCO A100V・Rc1/4" 4.00mm 2-Way Solenoid Valve EA153HA-15
JAN
4550061519646
ASIN
B092QXJDKJ
Maker
Model No.
EA153HA-15
Color
Size
Description
▪️Rated Voltage…AC100V
▪️Fluids…Air, Water, Low Vacuum, Kerosene, Oil (up to 60°C)
▪️Maximum Working Pressure…5MPa
▪️Ambient Temperature…-20 to 60°C
▪️Fluid Temperature…-10 to 60°C (no freezing)
▪️Pressure Resistance…25MPa (water pressure)
▪️Heat Resistance Class…Class 130 (B)
▪️Valve Structure…Direct-acting poppet structure
▪️Material…Body: Bronze Seal: Nitrile rubber
▪️Connection Size…Rc1/4
▪️Orifice Diameter (Φmm)…4.0
▪️Weight (g)…430
▪️Switching Direction…2-way
▪️AB31・41 Series
Brand Name: Esco
Rated Voltage…AC100V
Operating Fluid…Air・Water・Low Vacuum・Kerosene・Oil (up to 60℃)
Maximum Operating Pressure…5Mpa
Ambient Temperature…-20～60℃
Fluid Temperature…-10～60℃ (No freezing)
4550061519646
ESCO A100V・Rc1/4” 4.00mm 2-Way Solenoid Valve EA153HA-15
(text created at , 2025-05-10)
▪️Fluids…Air, Water, Low Vacuum, Kerosene, Oil (up to 60°C)
▪️Maximum Working Pressure…5MPa
▪️Ambient Temperature…-20 to 60°C
▪️Fluid Temperature…-10 to 60°C (no freezing)
▪️Pressure Resistance…25MPa (water pressure)
▪️Heat Resistance Class…Class 130 (B)
▪️Valve Structure…Direct-acting poppet structure
▪️Material…Body: Bronze Seal: Nitrile rubber
▪️Connection Size…Rc1/4
▪️Orifice Diameter (Φmm)…4.0
▪️Weight (g)…430
▪️Switching Direction…2-way
▪️AB31・41 Series
Brand Name: Esco
Rated Voltage…AC100V
Operating Fluid…Air・Water・Low Vacuum・Kerosene・Oil (up to 60℃)
Maximum Operating Pressure…5Mpa
Ambient Temperature…-20～60℃
Fluid Temperature…-10～60℃ (No freezing)
4550061519646
ESCO A100V・Rc1/4” 4.00mm 2-Way Solenoid Valve EA153HA-15
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
7,244 JPY (Including Tax)
Stock :
3
Scheduled Shipping:
2026-07-13
