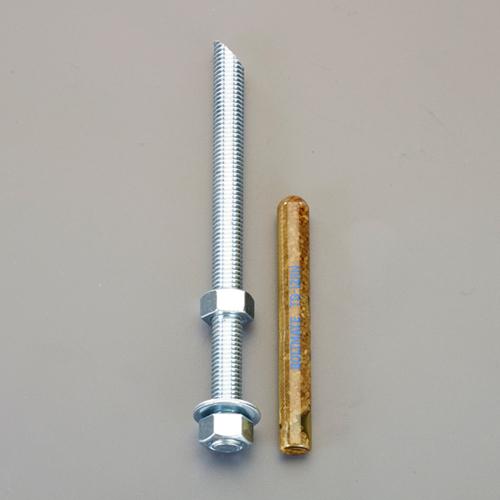

M20x300mm / Chemical Anchor with Unique-Cut Bolt and Nut

4550061527375

B092TYMJXH

EA947AL-232

φ21.5 × 175 mm

▪️Set Contents…Adhesive Capsule ×1, Angle-Cut Bolt (45° Cut) ×1, Hex Nut ×2, Washer ×1
▪️Material…Anchor: Iron (Unichrome Plated), Adhesive: Epoxy Acrylate Resin
▪️Suitable Screw Diameter…M20
▪️Overall Length (mm)…300
▪️Pilot Hole Diameter (mm)…24
▪️Size (mm)…φ21.5 x 175
▪️Capacity (ml)…51
▪️Maximum plate thickness…Up to 55mm
▪️Maximum tensile load (kN)…231
▪️This is a double-sealed type chemical capsule adhesive post-installed anchor, containing epoxy acrylate resin and aggregate in one glass tube and the hardener in a separate glass tube.
▪️Using styrene-free resin minimizes unpleasant odors during installation, making it an environmentally and human-friendly product.
▪️ Suitable for horizontal and upward installations
▪️ Utilizes high-performance epoxy acrylate resin for strong bonding strength and excellent alkali resistance. Brand Name: Esco Set Contents: Adhesive Capsule ×1, Cut Bolt (45° Cut) ×1, Hex Nut ×2, Washer ×1 Material: Anchor: Iron (Unichrome plating) Adhesive: Epoxy acrylate resin
Suitable screw diameter…M20
Overall length (mm)…300
Pilot hole diameter (mm)…24
4550061527375\ nB092TYMJXH
M20x300mm／Unique Cut Bolt & Nut Chemical Anchor
