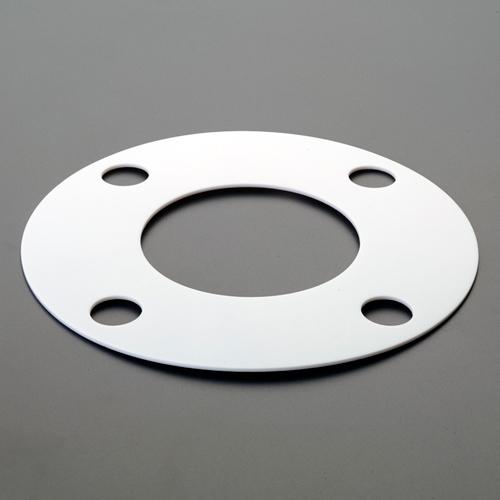

ESCO 25A/3.0mm Full Flange Gasket, Chemical Resistant/10K EA351HF-25
JAN
4550061544143
ASIN
B092QTZR19
Maker
Model No.
EA351HF-25
Color
Size
Description
Description
▪️Nominal Diameter…25A
▪️Thickness…3.0mm
▪️Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
▪️Maximum Pressure…1.0MPa
▪️Material…PTFE
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oils, aromatic hydrocarbons, organic solvents, weak acids, weak alkalis, salt solutions, strong acids, strong alkalis, air, exhaust gases, combustible gases, toxic gases, hydrogen gas, ammonia, oxygen, cryogenic fluids like liquefied gases, etc.
▪️Solid-sheet packing
▪️JIS 10K
▪️Made from pure PTFE sheet, offering chemical resistance to nearly all chemicals and suitable for fluids requiring contamination-free handling
Brand Name: Esco
Nominal Diameter…25A
Thickness…3.0mm
Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
Maximum Pressure…1.0MPa
Material…PTFE
4550061544143
ESCO 25A/3.0mm Full Face Flange Gasket Chemical Resistant/10K EA351HF-25
(text created at , 2025-05-12)
▪️Nominal Diameter…25A
▪️Thickness…3.0mm
▪️Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
▪️Maximum Pressure…1.0MPa
▪️Material…PTFE
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oils, aromatic hydrocarbons, organic solvents, weak acids, weak alkalis, salt solutions, strong acids, strong alkalis, air, exhaust gases, combustible gases, toxic gases, hydrogen gas, ammonia, oxygen, cryogenic fluids like liquefied gases, etc.
▪️Solid-sheet packing
▪️JIS 10K
▪️Made from pure PTFE sheet, offering chemical resistance to nearly all chemicals and suitable for fluids requiring contamination-free handling
Brand Name: Esco
Nominal Diameter…25A
Thickness…3.0mm
Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
Maximum Pressure…1.0MPa
Material…PTFE
4550061544143
ESCO 25A/3.0mm Full Face Flange Gasket Chemical Resistant/10K EA351HF-25
(text created at , 2025-05-12)
