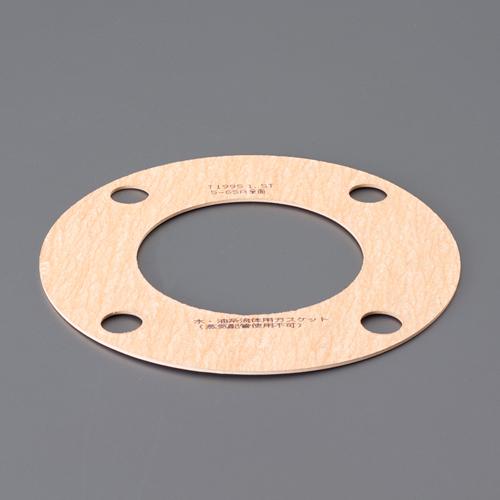

ESCO 10A/2.0mm Full-Face Flange Gasket 5K EA351GB-10
JAN
4550061549995
ASIN
B092QVHN2R
Maker
Model No.
EA351GB-10
Color
Size
Description
▪️Nominal Diameter…10A
▪️Thickness…2.0mm
▪️Operating Temperature Range…Water-based fluids: -100 to 183°C Oil-based fluids: -100 to 180°C Gas-based fluids: -100 to 180°C
▪️Material…NBR, aramid fiber, inorganic filler
▪️Applicable fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
▪️Maximum pressure…Water/oil-based fluids: 3.0MPa Gas-based fluids: 1.0MPa
▪️Solid-face packing
▪️JIS5K
▪️Used in relatively low-temperature equipment
Brand Name: Esco
Nominal Diameter…10A
Thickness…2.0mm
Operating Temperature Range…Water-based fluids: -100 to 183°C Oil-based fluids: -100 to 180°C Gas-based fluids: -100 to 180°C
Material…NBR, aramid fiber, inorganic filler
Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gases, etc.
4550061549995
ESCO 10A/2.0mm Full Face Flange Packing 5K EA351GB-10
(text created at , 2025-05-10)
▪️Thickness…2.0mm
▪️Operating Temperature Range…Water-based fluids: -100 to 183°C Oil-based fluids: -100 to 180°C Gas-based fluids: -100 to 180°C
▪️Material…NBR, aramid fiber, inorganic filler
▪️Applicable fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
▪️Maximum pressure…Water/oil-based fluids: 3.0MPa Gas-based fluids: 1.0MPa
▪️Solid-face packing
▪️JIS5K
▪️Used in relatively low-temperature equipment
Brand Name: Esco
Nominal Diameter…10A
Thickness…2.0mm
Operating Temperature Range…Water-based fluids: -100 to 183°C Oil-based fluids: -100 to 180°C Gas-based fluids: -100 to 180°C
Material…NBR, aramid fiber, inorganic filler
Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gases, etc.
4550061549995
ESCO 10A/2.0mm Full Face Flange Packing 5K EA351GB-10
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
333 JPY (Including Tax)
Stock :
5
Scheduled Shipping:
2026-07-14
