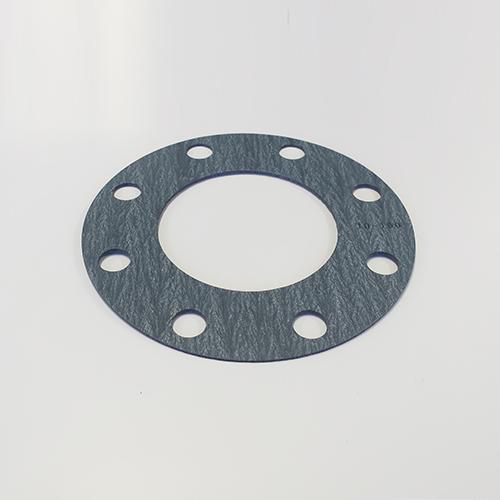

ESCO 80A/3.0mm Full-Face Flange Gasket, Heat/Steam Resistant/10K EA351GM-80
JAN
4550061550908
ASIN
B092QVHTM8
Maker
Model No.
EA351GM-80
Color
Size
Description
ESCO-3-0mm Full-Face Flange Gasket - Heat/Steam Resistant - EA351GM-80
▪️ Nominal Diameter…80A
▪️ Thickness…3.0mm
▪️ Operating Temperature Range…Water-based Fluids: -100~215℃ Oil-based fluids: -100~150℃ Gas-based fluids: -100~200℃
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
▪️Maximum Pressure…Water-based/Oil-based Fluids: 3.0MPa Gas-based Fluids: 1.0MPa
▪️Material…Special Blend Rubber, Aramid Fiber, Inorganic Filler
▪️Full-Face Packing
▪️JIS10K
▪️Excellent heat resistance and steam resistance, suitable for steam lines
Brand Name: Esco
Nominal Diameter…80A
Thickness…3.0mm
Operating Temperature Range…Water-based fluids: -100 to 215°C Oil-based fluids: -100 to 150°C Gas-based fluids: -100 to 200°C
Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oils, weak acids, weak alkalis, salt solutions, air, exhaust gases, etc.
Maximum Pressure…Water/Oil-based Fluids: 3.0MPa Gas-based Fluids: 1.0MPa
4550061550908
ESCO 80A/3.0mm Full-Face Flange Gasket Heat/Steam Resistant/10K EA351GM-80
(text created at , 2025-05-10)
▪️ Nominal Diameter…80A
▪️ Thickness…3.0mm
▪️ Operating Temperature Range…Water-based Fluids: -100~215℃ Oil-based fluids: -100~150℃ Gas-based fluids: -100~200℃
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, weak acids, weak alkalis, salt solutions, air, exhaust gas, etc.
▪️Maximum Pressure…Water-based/Oil-based Fluids: 3.0MPa Gas-based Fluids: 1.0MPa
▪️Material…Special Blend Rubber, Aramid Fiber, Inorganic Filler
▪️Full-Face Packing
▪️JIS10K
▪️Excellent heat resistance and steam resistance, suitable for steam lines
Brand Name: Esco
Nominal Diameter…80A
Thickness…3.0mm
Operating Temperature Range…Water-based fluids: -100 to 215°C Oil-based fluids: -100 to 150°C Gas-based fluids: -100 to 200°C
Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oils, weak acids, weak alkalis, salt solutions, air, exhaust gases, etc.
Maximum Pressure…Water/Oil-based Fluids: 3.0MPa Gas-based Fluids: 1.0MPa
4550061550908
ESCO 80A/3.0mm Full-Face Flange Gasket Heat/Steam Resistant/10K EA351GM-80
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
3,637 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
