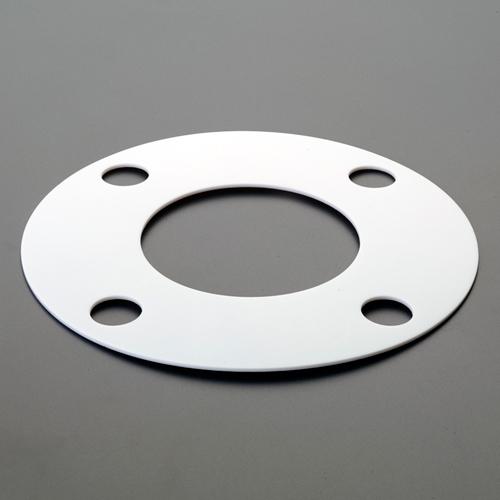

ESCO 50A/1.5mm Full Flange Gasket, Chemical Resistant/10K EA351HD-50
JAN
4550061553305
ASIN
B092QVBTCG
Maker
Model No.
EA351HD-50
Color
Size
Description
▪️Nominal Diameter…50A
▪️Thickness…1.5mm
▪️Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
▪️Maximum Pressure…1.0MPa
▪️Material…PTFE
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, aromatic hydrocarbons, organic solvents, weak acids, weak alkalis, salt solutions, strong acids, strong alkalis, air, exhaust gases, combustible gases, toxic gases, hydrogen gas, ammonia, oxygen, cryogenic fluids such as liquefied gases, etc.
▪️Solid-face packing
▪️JIS 10K
▪️Made from pure PTFE sheet, offering chemical resistance to nearly all chemicals and suitable for fluids requiring contamination-free handling
Brand Name: Esco
Nominal Diameter…50A
Thickness…1.5mm
Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
Maximum Pressure…1.0MPa
Material…PTFE
4550061553305
ESCO 50A/1.5mm Full Face Flange Gasket Chemical Resistant/10K EA351HD-50
(text created at , 2025-05-10)
▪️Thickness…1.5mm
▪️Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
▪️Maximum Pressure…1.0MPa
▪️Material…PTFE
▪️Applicable Fluids…Water, steam, hot water, brine, seawater, petroleum hydrocarbons, alcohol, vegetable/animal oils, heat transfer oil, aromatic hydrocarbons, organic solvents, weak acids, weak alkalis, salt solutions, strong acids, strong alkalis, air, exhaust gases, combustible gases, toxic gases, hydrogen gas, ammonia, oxygen, cryogenic fluids such as liquefied gases, etc.
▪️Solid-face packing
▪️JIS 10K
▪️Made from pure PTFE sheet, offering chemical resistance to nearly all chemicals and suitable for fluids requiring contamination-free handling
Brand Name: Esco
Nominal Diameter…50A
Thickness…1.5mm
Operating Temperature Range…Water-based, oil-based, corrosive fluids: -100 to 100°C
Maximum Pressure…1.0MPa
Material…PTFE
4550061553305
ESCO 50A/1.5mm Full Face Flange Gasket Chemical Resistant/10K EA351HD-50
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
1,909 JPY (Including Tax)
