ESCO 80A/1.5mm Internal Flange Gasket, Heat/Steam Resistant/5K EA351FD-80
JAN
4550061555323
ASIN
B092QVSTL9
Maker
Model No.
EA351FD-80
Color
Size
Description

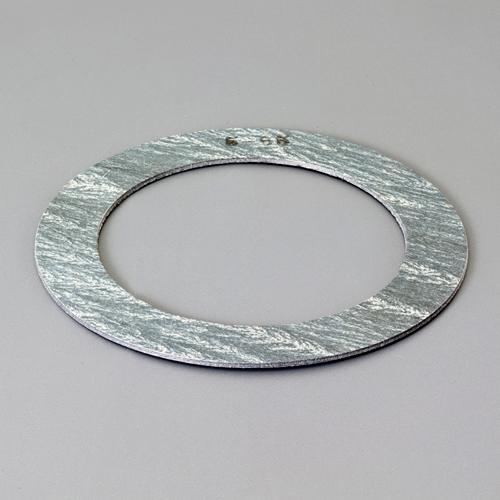

ESCO-Internal Flange Gasket-Heat/Steam Resistant-EA351FD-80
▪️Internal Flange Gasket
▪️For JIS Pipe Flanges
▪️JIS 5K
▪️Operating Temperature Range…Water-based Fluids: -100~215℃ Oil-based Fluids: -100~150℃ Gas-based Fluids: -100~200℃
▪️This flange gasket is machined from a deep green NA (non-asbestos) joint sheet. It contains no asbestos whatsoever and incorporates carbon fiber—known for its superior heat resistance—alongside inorganic fibers and aramid fibers. A special rubber with excellent heat and steam resistance is used as the inorganic filler and binder.
▪️Low soluble halogen content makes it suitable for stainless steel flanges.
▪️Nominal Diameter…80A
▪️Thickness…1.5mm
Brand Name: Esco
Material: Rubber
Inner Flange Gasket
For JIS Pipe Flanges
JIS5K
Operating Temperature Range... Water-based Fluids: -100 to 215°C Oil-based Fluids: -100 to 150°C Gas-based Fluids: -100 to 200°C
This flange gasket is machined from a deep green NA (non-asbestos) joint sheet. It contains no asbestos whatsoever and incorporates carbon fiber for superior heat resistance, in addition to inorganic fibers and aramid fibers. It is formulated with a special rubber that excels in heat resistance and steam resistance as the inorganic filler and binder.
4550061555323
ESCO 80A/1.5mm Inner Flange Gasket Heat/Steam Resistant/5K EA351FD-80
(text created at , 2025-05-09)
▪️Internal Flange Gasket
▪️For JIS Pipe Flanges
▪️JIS 5K
▪️Operating Temperature Range…Water-based Fluids: -100~215℃ Oil-based Fluids: -100~150℃ Gas-based Fluids: -100~200℃
▪️This flange gasket is machined from a deep green NA (non-asbestos) joint sheet. It contains no asbestos whatsoever and incorporates carbon fiber—known for its superior heat resistance—alongside inorganic fibers and aramid fibers. A special rubber with excellent heat and steam resistance is used as the inorganic filler and binder.
▪️Low soluble halogen content makes it suitable for stainless steel flanges.
▪️Nominal Diameter…80A
▪️Thickness…1.5mm
Brand Name: Esco
Material: Rubber
Inner Flange Gasket
For JIS Pipe Flanges
JIS5K
Operating Temperature Range... Water-based Fluids: -100 to 215°C Oil-based Fluids: -100 to 150°C Gas-based Fluids: -100 to 200°C
This flange gasket is machined from a deep green NA (non-asbestos) joint sheet. It contains no asbestos whatsoever and incorporates carbon fiber for superior heat resistance, in addition to inorganic fibers and aramid fibers. It is formulated with a special rubber that excels in heat resistance and steam resistance as the inorganic filler and binder.
4550061555323
ESCO 80A/1.5mm Inner Flange Gasket Heat/Steam Resistant/5K EA351FD-80
(text created at , 2025-05-09)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
767 JPY (Including Tax)
Stock :
6
Scheduled Shipping:
2026-07-13
Quantity :
Reference Price from Other Stores
