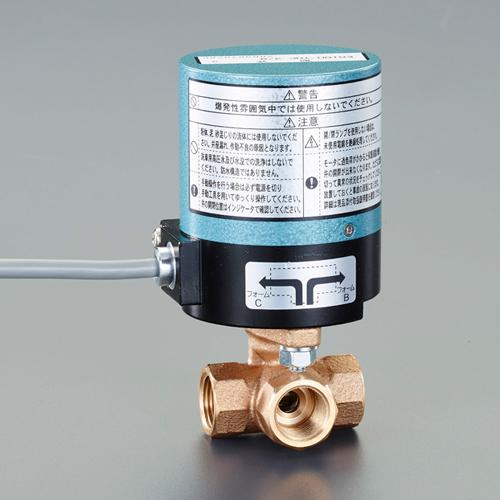

ESCO Rc 1/4 Electric Three-Way Ball Valve AC100V/Bronze EA470BG-102
JAN
4550061559161
ASIN
B092QTMNFF
Maker
Model No.
EA470BG-102
Color
Size
d:4.5mm d1:Rc1/4 H:101.5mm H1:25.5mm L:46mm L1:23mm L2:23mm S1:21mm H2:70mm H3:5mm D:60mm
Description
ESCO-ESCO-Electric Three-Way Ball Valve-AC100V-EA470BG-102
▪️Material…Valve Body: (CAC406)\
▪️Power Supply…AC100V (50/60Hz)\
▪️Thread Size (Rc)…1/4”\
▪️ Opening/Closing Time…50Hz: Approx. 6 sec 60Hz: Approx. 5 sec\
▪️ Fluid…Water・Oil・Air\
▪️ Maximum Working Pressure…Water・Oil・Air (80℃ or below): 1.0MPa, Water・Oil・Air (100℃ or below): 0.5MPa\
▪️Rated current…90mA\
▪️Maximum power consumption…9W\
▪️Maximum output torque…1.9N·m\
▪️Function…90° forward/reverse rotation\
▪️Protection rating…IP56 equivalent\
▪️Nominal Diameter (A designation)…8\
▪️Dimensions…d:4.5mm d1:Rc1/4 H:101.5mm H1:25.5mm L:46mm L1:23mm L2:23mm S1:21mm H2:70mm H3:5mm D:60mm\
▪️Reduced bore type\
▪️Three-way double-seated\
▪️Ball valve
Brand name: Esco
Material…Valve body: (CAC406)
Power supply…AC100V (50/60Hz)
Thread size (Rc)…1/4”
Opening/closing time…50Hz: Approx. 6 sec. 60Hz: Approx. 5 sec.
Fluid… Water/Oil/Air
4550061559161
B092QTMNFF
ESCO Rc 1/4 Electric Three-Way Ball Valve AC100V/Bronze EA470BG-102
(text created at , 2025-11-12)
▪️Material…Valve Body: (CAC406)\
▪️Power Supply…AC100V (50/60Hz)\
▪️Thread Size (Rc)…1/4”\
▪️ Opening/Closing Time…50Hz: Approx. 6 sec 60Hz: Approx. 5 sec\
▪️ Fluid…Water・Oil・Air\
▪️ Maximum Working Pressure…Water・Oil・Air (80℃ or below): 1.0MPa, Water・Oil・Air (100℃ or below): 0.5MPa\
▪️Rated current…90mA\
▪️Maximum power consumption…9W\
▪️Maximum output torque…1.9N·m\
▪️Function…90° forward/reverse rotation\
▪️Protection rating…IP56 equivalent\
▪️Nominal Diameter (A designation)…8\
▪️Dimensions…d:4.5mm d1:Rc1/4 H:101.5mm H1:25.5mm L:46mm L1:23mm L2:23mm S1:21mm H2:70mm H3:5mm D:60mm\
▪️Reduced bore type\
▪️Three-way double-seated\
▪️Ball valve
Brand name: Esco
Material…Valve body: (CAC406)
Power supply…AC100V (50/60Hz)
Thread size (Rc)…1/4”
Opening/closing time…50Hz: Approx. 6 sec. 60Hz: Approx. 5 sec.
Fluid… Water/Oil/Air
4550061559161
B092QTMNFF
ESCO Rc 1/4 Electric Three-Way Ball Valve AC100V/Bronze EA470BG-102
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
27,742 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
