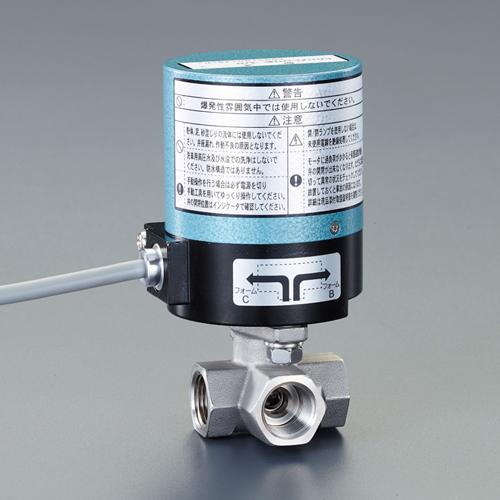

Rc 3/4 Electric Three-Way Ball Valve (AC100V/Stainless Steel)
JAN
4550061560259
ASIN
B08TB6VG8F
Maker
Model No.
EA470BH-106
Color
Size
d:11.5mm d1:Rc3/4 H:110.5mm H1:34.5mm L:61.5mm L1:31.5mm L2:33mm S1:32mm H2:70mm H3:5mm D:60mm
Description
Material: Body: SCS14A, Ball Seat: Carbon Fiber Reinforced PTFE, Stem: SUS316 + Chrome Plating, O-Ring: FKM, Ball: SUS316 Power Supply: AC100V (50/60Hz) Rated Current: 90mA
Maximum Power Consumption: 9W Screw Size (Rc): 3/4" Opening/Closing Time: 50Hz: Approx. 6 seconds 60Hz: Approx. 5 seconds
Fluid: Water, Oil, Air Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 1.9N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 20
Size: d: 11.5mm d1: Rc3/4 H: 110.5mm H1: 34.5mm L: 61.5mm L1: 31.5mm L2: 33mm S1: 32mm H2: 70mm H3: 5mm D: 60mm RoHS Directive (6 Substance Restriction) Compliant Reduced Bore Type
Brand Name: Esco
Material: Body: SCS14A
Materials: Body: SCS14A, Ball Seat: Carbon Fiber Reinforced PTFE, Stem: SUS316 + Cr Plating, O-Ring: FKM, Ball: SUS316 Power Supply: AC100V (50/60Hz) Rated Current: 90mA
Maximum Power Consumption: 9W Thread Size (Rc): 3/4" Opening/Closing Time: 50Hz: Approx. 6 sec 60Hz: Approx. 5 sec
Fluid: Water/Oil/Air Maximum Working Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 1.9N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 20
Size: d: 11.5mm d1: Rc3/4 H: 110.5mm H1: 34.5mm L: 61.5mm L1:31.5mm L2:33mm S1:32mm H2:70mm H3:5mm D:60mm RoHS Directive (6 Substance Restriction) Compliant Reduced Bore Type
4550061560259\ nB08TB6VG8F
Rc 3/4 Electric Three-Way Ball Valve (AC100V/Stainless Steel)
(text created at , 2025-11-12)
Maximum Power Consumption: 9W Screw Size (Rc): 3/4" Opening/Closing Time: 50Hz: Approx. 6 seconds 60Hz: Approx. 5 seconds
Fluid: Water, Oil, Air Maximum Operating Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 1.9N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 20
Size: d: 11.5mm d1: Rc3/4 H: 110.5mm H1: 34.5mm L: 61.5mm L1: 31.5mm L2: 33mm S1: 32mm H2: 70mm H3: 5mm D: 60mm RoHS Directive (6 Substance Restriction) Compliant Reduced Bore Type
Brand Name: Esco
Material: Body: SCS14A
Materials: Body: SCS14A, Ball Seat: Carbon Fiber Reinforced PTFE, Stem: SUS316 + Cr Plating, O-Ring: FKM, Ball: SUS316 Power Supply: AC100V (50/60Hz) Rated Current: 90mA
Maximum Power Consumption: 9W Thread Size (Rc): 3/4" Opening/Closing Time: 50Hz: Approx. 6 sec 60Hz: Approx. 5 sec
Fluid: Water/Oil/Air Maximum Working Pressure: Water/Oil/Air (80°C or below): 1.0MPa, Water/Oil/Air (100°C or below): 0.5MPa Maximum Output Torque: 1.9N·m
Function: 90° Forward/Reverse Rotation Protection Rating: IP56 equivalent Nominal Diameter (A designation): 20
Size: d: 11.5mm d1: Rc3/4 H: 110.5mm H1: 34.5mm L: 61.5mm L1:31.5mm L2:33mm S1:32mm H2:70mm H3:5mm D:60mm RoHS Directive (6 Substance Restriction) Compliant Reduced Bore Type
4550061560259\ nB08TB6VG8F
Rc 3/4 Electric Three-Way Ball Valve (AC100V/Stainless Steel)
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
174x116x236 mm
Package
Weight (Approx.):
Weight (Approx.):
1026 g
