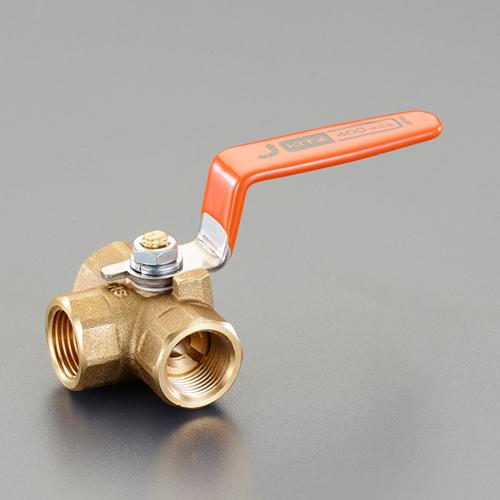

ESCO Rc1·1/2 Three-Way Ball Valve, Brass, EA470BA-114
JAN
4550061560310
ASIN
B092QVFX57
Maker
Model No.
EA470BA-114
Color
Size
Rc1・1/2"
Description
ESCO Ball Valve - Brass Construction
▪️Materials…Valve body: C3771BE (FS-CD75 (4)) Cover: C3771BE (FS-CD75 (4)) Valve stem: C3531 (13) (KZ-CD75 (5)) Ball: C3771BE (2) (FS-CD75 (4))\
▪️Maximum Pressure (Water/Oil/Gas(※))…Ambient: 2.0MPa (28kgf/cm²) 150℃ or below: 0.62MPa (7kgf/cm²)\
▪️※Caution…Not for use with flammable or toxic gases\
▪️Thread Size…Rc1·1/2”\
▪️RoHS Directive Compliant
Brand Name: Esco
Material: Brass
Material…Valve Body: C3771BE (FS-CD75 (4)) Cover: C3771BE (FS-CD75 (4)) Valve Stem: C3531 (13)(KZ-CD75 (5)) Ball: C3771BE (2)(FS-CD75 (4))
Maximum Pressure (Water/Oil/Gas(※))…Ambient: 2.0MPa(28kgf/cm²) 150℃ or below: 0.62MPa(7kgf/cm²)
※Caution…Not for use with flammable or toxic gases
Thread Size…Rc1·1/2”\ RoHS Directive Compliant
4550061560310
B092QVFX57
ESCO Rc1·1/2 Three-Way Ball Valve Brass EA470BA-114
(text created at , 2025-11-12)
▪️Materials…Valve body: C3771BE (FS-CD75 (4)) Cover: C3771BE (FS-CD75 (4)) Valve stem: C3531 (13) (KZ-CD75 (5)) Ball: C3771BE (2) (FS-CD75 (4))\
▪️Maximum Pressure (Water/Oil/Gas(※))…Ambient: 2.0MPa (28kgf/cm²) 150℃ or below: 0.62MPa (7kgf/cm²)\
▪️※Caution…Not for use with flammable or toxic gases\
▪️Thread Size…Rc1·1/2”\
▪️RoHS Directive Compliant
Brand Name: Esco
Material: Brass
Material…Valve Body: C3771BE (FS-CD75 (4)) Cover: C3771BE (FS-CD75 (4)) Valve Stem: C3531 (13)(KZ-CD75 (5)) Ball: C3771BE (2)(FS-CD75 (4))
Maximum Pressure (Water/Oil/Gas(※))…Ambient: 2.0MPa(28kgf/cm²) 150℃ or below: 0.62MPa(7kgf/cm²)
※Caution…Not for use with flammable or toxic gases
Thread Size…Rc1·1/2”\ RoHS Directive Compliant
4550061560310
B092QVFX57
ESCO Rc1·1/2 Three-Way Ball Valve Brass EA470BA-114
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
20,771 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-13
