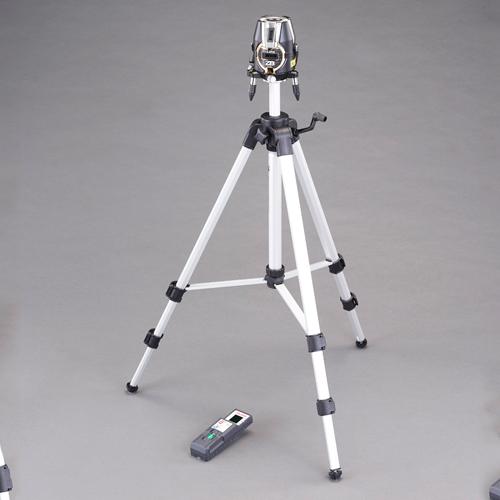

ESCO Laser Leveling Tool with Tripod and Receiver Set EA780TA-3S

4550061565339

B092QSXJ8J

EA780TA-3S

φ112 × 174 (H) mm

▪️Lines: Horizontal, vertical (front vertical, both vertical), right angle, plumb, and level\
▪️Operating distance: 1 to 20 m (receiver)\
▪️Line accuracy: Within ±0.81 mm at 10 m\
▪️Point accuracy: Within ±1 mm at 7.5 m\
▪️Side-to-side accuracy: Within ±2 mm at 15 m\

▪️Right angle accuracy...90°±(2mm/7.5m)\
▪️Plumb point accuracy...±1mm at 3m\
▪️Blue-green laser...Reduces glare, easy to see indoors, and easy on the eyes during long periods of work.\
▪️Line width...Approx. 3.0mm (7.5m)\
▪️Auto correction range: ±2°\
▪️Wavelength: Line: 505nm Point: 650nm\
▪️Laser output: 4.5mW or less\
▪️Laser safety standard: Class 2M\
▪️Continuous operating time (when using 3 vertical lines): Just mode: Approx. 3 hours Save mode: Approx. 6 hours\
▪️Power source...4 AA batteries (included)\
▪️Size...112 x 174 (H) mm\
▪️Weight...1030 g\
▪️Accessories...4 AA alkaline batteries, dedicated carrying case, shoulder strap, tripod, green laser receiver, laser receiver case, 4 AAA alkaline batteries\
▪️ Only front vertical and horizontal lines can be projected simultaneously\
▪️ Brightness: Just Mode: 300, Save Mode: 150, non-glare blue-green laser\
▪️ Equipped with 360° rotation fine adjustment function for precise plumb alignment\
▪️Gimbal-mounted laser\
▪️Laser light flashes for 30 seconds, then turns off; only line LEDs flash\
▪️Includes sturdy stainless steel carrying case\
▪️Dustproof and waterproof design
Brand Name: Esco
Material: Stainless Steel
Lines: Horizontal, Vertical (Front Vertical, Both Verticals), Right Angle・Plumb・Leveling Mark
Operating Distance…1 to 20m (Receiver)
Projected Line Accuracy…Within ±0.81mm at 10m
Point Accuracy…Within ±1mm at 7.5m
Horizontal Accuracy…Within ±2mm at 15m
4550061565339\ nB092QSXJ8J
ESCO Laser Leveling Tool with Tripod and Receiver Set EA780TA-3S
