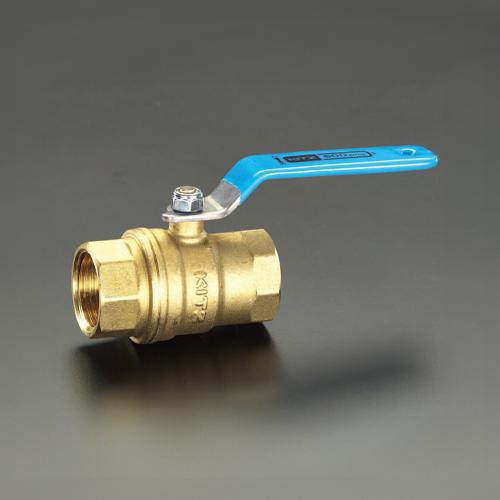

Rc3/4 Ball Valve (Full Bore / Brass)
JAN
4550061571170
ASIN
B08TB8VNFC
Maker
Model No.
EA470AA-106
Color
Size
L: 80mm H: 44mm D: 80mm
Description

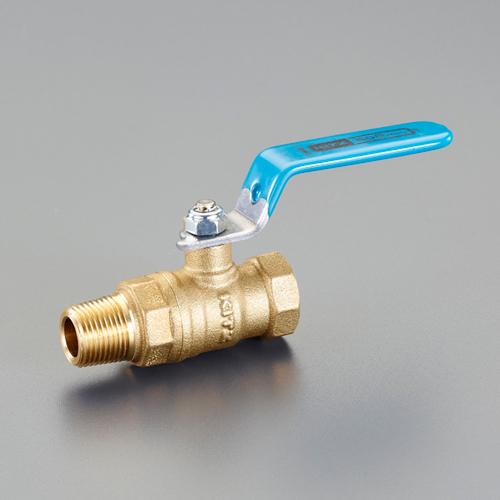

ESCO Ball Valve - Full Bore - EA470AA-106
Thread Size (Rc): 3/4"
Fluid: Water, Gas, Oil
Maximum Working Pressure:
Ambient Temperature: 4.12MPa
Below 150°C: 0.98MPa
Material:
Body: C3771
Body Cap: C3771
Stem: C3604 + Ni Plating
Ball: C3771 + Ni-Cr Plating
Ball Seat: PTFE Stem: C3604 + Ni Plating, Ball: C3771 + Ni-Cr Plating, Ball Seat: PTFE, O-Ring: FKM, Handle: SUS430
Nominal Diameter (A Designation): 20 Size: L: 80mm H: 44mm D: 80mm
Full Bore Type Leak Performance Standard Equivalent (Manufacturer Confirmed)
Not for use with flammable gases or toxic gases
Brand Name: Esco
Material: Body: C3771
Thread Size (Rc): 3/4" Fluid: Water/Gas/Oil
Maximum Working Pressure: Ambient: 4.12MPa, 150°C or below: 0.98MPa Material: Body: C3771, Body Cap: C3771, Stem: C3604 + Ni plating, Ball: C3771 + Ni-Cr plating, Ball Seat: PTFE, O-ring: FKM, Handle: SUS430
Nominal Diameter (A designation): 20 Size: L: 80mm H: 44mm D: 80mm
Full bore type Leak performance standard compliant (manufacturer confirmed)
Not for use with combustible gases or toxic gases
4550061571170
“Rc3/4” “Ball Valve (Full Bore / Brass)”
(text created at , 2025-05-10)
Thread Size (Rc): 3/4"
Fluid: Water, Gas, Oil
Maximum Working Pressure:
Ambient Temperature: 4.12MPa
Below 150°C: 0.98MPa
Material:
Body: C3771
Body Cap: C3771
Stem: C3604 + Ni Plating
Ball: C3771 + Ni-Cr Plating
Ball Seat: PTFE Stem: C3604 + Ni Plating, Ball: C3771 + Ni-Cr Plating, Ball Seat: PTFE, O-Ring: FKM, Handle: SUS430
Nominal Diameter (A Designation): 20 Size: L: 80mm H: 44mm D: 80mm
Full Bore Type Leak Performance Standard Equivalent (Manufacturer Confirmed)
Not for use with flammable gases or toxic gases
Brand Name: Esco
Material: Body: C3771
Thread Size (Rc): 3/4" Fluid: Water/Gas/Oil
Maximum Working Pressure: Ambient: 4.12MPa, 150°C or below: 0.98MPa Material: Body: C3771, Body Cap: C3771, Stem: C3604 + Ni plating, Ball: C3771 + Ni-Cr plating, Ball Seat: PTFE, O-ring: FKM, Handle: SUS430
Nominal Diameter (A designation): 20 Size: L: 80mm H: 44mm D: 80mm
Full bore type Leak performance standard compliant (manufacturer confirmed)
Not for use with combustible gases or toxic gases
4550061571170
“Rc3/4” “Ball Valve (Full Bore / Brass)”
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
85x80x135 mm
Package
Weight (Approx.):
Weight (Approx.):
346 g
7,809 JPY (Including Tax)
