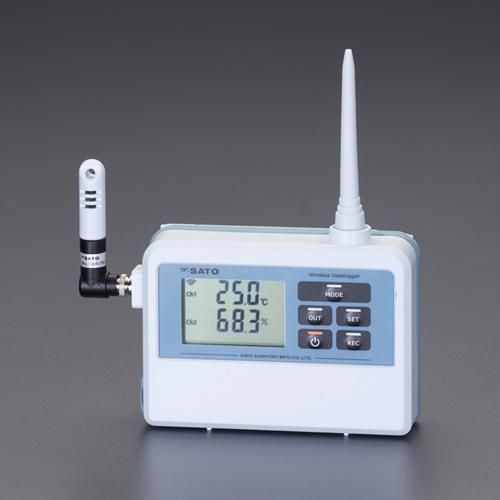

Sato Measuring Instruments Manufacturing Co., Ltd. Temperature and Humidity Data Logger EA742GC-21

4550061577127

B08XYSHCMC

EA742GC-21

114 (W) × 35 (D) × 80 (H) mm (excluding antenna and protrusions) Sensor section: φ11 × L60 mm Connec

ESCO-Temperature/Humidity Data Logger-EA742GC-21
Features\
・Supports network communication for up to 60 units.\
・Requires a PC with analysis software installed and a parent unit (EA742GD-10) to control repeaters and child units. The minimum network consists of a PC, one parent unit, and one child unit. Repeaters can also function as parent units, but if using a repeater, it must be installed separately from the parent unit. ※ Connections using repeaters are possible up to a maximum of three levels.\
・This is a temperature and humidity logger that stores measurement data.\
・Using wireless technology, it enables setting up, data collection, and real-time monitoring of measurement values for devices installed in remote locations without wiring. *Requires a separate base unit for operation.\
・Stored measurement data remains in internal memory even if the battery dies.\
・Measurement data can also be copied to a microSD memory card. (microSD memory card sold separately)\
\
Specifications\
・Manufacturer: Sato Keiryoki Seisakusho Co., Ltd.\
・Model Number: SK-L700R-TH+SK-L700R-TH-1\
・Measurement Range: Temperature: -10.0 to 60.0°C, Humidity: 5.0 to 95.0%rh\
・Resolution: Temperature/0.1°C, Humidity/0.1%rh\
・Power Supply: 2 AA batteries (included), or dedicated AC adapter (sold separately)\
・Set Contents: Main Unit + Sensor (Integrated)\
・Dimensions: 114(W)×35(D)×80(H)mm (excluding antenna and protrusions) Sensor section/φ11×L60mm Connector section/φ9×L30mm\
・Wireless standard: Compliant with ARIB STD-T108 920MHz band/14 communication channels/Output approx. 20mW\
・Measurement accuracy: Temperature/±0.5℃ Humidity/See sub-image\
・Display accuracy: Temperature/±(0.1+1 digit)°C (at 0~40°C), ±(0.2+1 digit)°C (outside this range) Humidity/±(0.1+1 digit)%rh (at 0~40°C), ±(0.2+1 digit)%rh (outside this range)\
・Number of channels: 1 channel each for temperature and humidity\
・Memory capacity: 16,000 data points per channel\
・Recording Interval: 1 sec, 2 sec, 5 sec, 10 sec, 15 sec, 30 sec, 1 min, 2 min, 5 min, 10 min, 15 min, 30 min, 60 min (13 options)\
・Weight: 240g (including battery)\
・Compatible OS: Windows 10, 8.1, 8, 7 (all 64-bit/32-bit Japanese versions) ※Latest service pack must be installed\
・Sampling: 1 second\
・Display Functions: Temperature/Humidity Alarm (ALM), Memory Mode (→/∞), Recording Indicator (REC), Memory Level (Bar), Signal Strength (Antenna Icon), microSD Memory (SD), Low Battery Indicator, Error Messages, Setting Value Display during Configuration\
・External Memory: microSD/SDHC (up to 32GB)\
・Communication Range: Outdoor line-of-sight/approx. 400m/Indoor line-of-sight/approx. 100m *Communication distance varies depending on the usage environment\
・Usage Environment:-10.0~60.0℃ (No condensation)\
・Battery Life:Approx. 10 months *With LCD OFF setting, 10-minute recording interval, and good wireless communication environment\
・Accessories: Instruction Manual
Brand Name: Esco
Instruction Manual
Quantity: 1 set
Model Number: EA742GC-21
Size: 114(W)×35(D)×80(H)mm (excluding antenna and protrusions) Sensor section/φ11×L60mm Connector section/φ9×L30mm
4550061577127
B08XYSHCMC
Sato Keiryoki Seisakusho Co., Ltd. Temperature/Humidity Data Logger EA742G

152x65x176 mm

400 g
