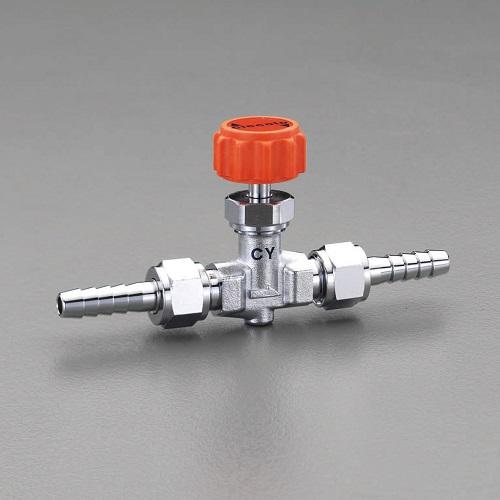

Asso φ10.5mm x φ10.5mm Needle Valve Stem Type/ROHS EA426CY-310A
JAN
4550061623633
ASIN
B0DCHVDT2V
Maker
Model No.
EA426CY-310A
Color
Size
Description
ASOH-φ10-5mmxφ10-5mm-Needle Valve-Stem Type-EA426CY-310A
Features
※Hose inner diameter compatibility may vary slightly depending on hose material.
Straight Type
Both primary and secondary sides feature union-type connections for hose attachment.
RoHS Compliant (as of June 2024)
Specifications
Manufacturer: ASOH
Model Number: CY-2310R
Suitable Hose Inner Diameter*: 9×9mm
Material: Brass (Chrome Plated)\ Pressure: 0.98MPa (10kgf/cm²) or less
Fluid: Air, Water, Oil
Temperature: -10~80℃ (excluding freezing points)
Valve housing pressure test: 1.5MPa
Valve seat leakage test: 0.6MPa
Bamboo-style fitting diameter: 10.5×10.5mm
Weight (g): 156
Brand Name: Asso
Material: Brass
*Hose inner diameter compatibility may vary slightly depending on hose material.
1 piece
Compatible Hose Inner Diameter*: 9×9mm
Material: Brass (Chrome Plated)
4550061623633
ASSO φ10.5mm x φ10.5mm Needle Valve Stem Type/ROHS EA426CY-310A
(text created at , 2025-05-10)
Features
※Hose inner diameter compatibility may vary slightly depending on hose material.
Straight Type
Both primary and secondary sides feature union-type connections for hose attachment.
RoHS Compliant (as of June 2024)
Specifications
Manufacturer: ASOH
Model Number: CY-2310R
Suitable Hose Inner Diameter*: 9×9mm
Material: Brass (Chrome Plated)\ Pressure: 0.98MPa (10kgf/cm²) or less
Fluid: Air, Water, Oil
Temperature: -10~80℃ (excluding freezing points)
Valve housing pressure test: 1.5MPa
Valve seat leakage test: 0.6MPa
Bamboo-style fitting diameter: 10.5×10.5mm
Weight (g): 156
Brand Name: Asso
Material: Brass
*Hose inner diameter compatibility may vary slightly depending on hose material.
1 piece
Compatible Hose Inner Diameter*: 9×9mm
Material: Brass (Chrome Plated)
4550061623633
ASSO φ10.5mm x φ10.5mm Needle Valve Stem Type/ROHS EA426CY-310A
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
3,843 JPY (Including Tax)
Stock :
1
Scheduled Shipping:
2026-07-13
