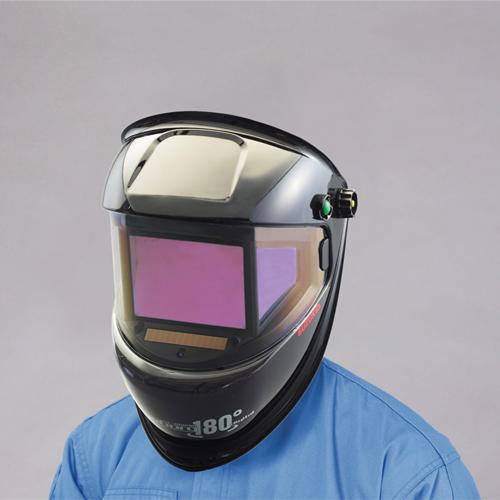

Esco #4-#14 Arc Welding Helmet (Digital/Wide) EA800PV-16
JAN
4550061628645
ASIN
B09S5YPBWG
Maker
Model No.
EA800PV-16
Color
Black
Size
195 (W) × 110 (L) × 150 (H) mm
Description
▪️Shade Response Speed…1/25,000 sec\
▪️Lens Size…Center: 115×85mm\
Sides: 68×35~80mm\
▪️Shade Level…(Before Shading) #3\
(During Shading) Center: Welding (WELD) Mode: #8~#14\
Cutting (CUT) Mode: #4~#8\
Sides: #10\
▪️Weight…Approx. 590g\
▪️Sensitivity Adjustment…8-step adjustment\
▪️Power source…Solar cell + Lithium battery (CR2032) ×2 (included)\
▪️Accessories…Outer cover plate ×2 (1 pre-installed on unit)\
Inner cover plate ×1 set (1 set pre-installed on unit)\
Lithium battery ×2\
▪️Return Speed Adjustment…10-step adjustment (0~9 / 0.06~1.00 seconds range)\
▪️Digital operation and control for fine adjustment\
Set work mode (Grind/Weld/Cut), shade level, sensitivity, and return speed digitally via the setting panel\
▪️Auto Mode included (Shade Level, Sensitivity, Return Speed)\
Auto Mode automatically sets Shade Level, Sensitivity, and Return Speed based on the work environment\
▪️The “Blue Filter” reduces glare and maintains a clear field of view, making the weld bead and molten pool edges easier to see, and performs well even during high-power welding.\
▪️Equipped with a grind mode button for one-touch switching (welding/cutting ⇔ grind mode) while worn, plus a new easy-to-operate one-touch headgear\
▪️Japan's first 3-sided auto-shading type\
\
▪️New sensation 180° panoramic wide view
Brand Name: Esco
Shading Response Speed…1/25,000 sec
Lens Size…Center: 115×85mm Both Sides: 68×35–80mm
Shading Level…(Before Shading) # 3 (After Shading) Center: Welding (WELD) Mode: #8–#14 Cutting (CUT) Mode: #4–#8 Sides: #10
Weight…Approx. 590g
Sensitivity Adjustment…8-step adjustment
4550061628645
B09S5YPBWG
Esco (Esco) #4-#14 Arc Welding Helmet (Digital/Wide) EA800PV-16
(text created at , 2025-11-12)
▪️Lens Size…Center: 115×85mm\
Sides: 68×35~80mm\
▪️Shade Level…(Before Shading) #3\
(During Shading) Center: Welding (WELD) Mode: #8~#14\
Cutting (CUT) Mode: #4~#8\
Sides: #10\
▪️Weight…Approx. 590g\
▪️Sensitivity Adjustment…8-step adjustment\
▪️Power source…Solar cell + Lithium battery (CR2032) ×2 (included)\
▪️Accessories…Outer cover plate ×2 (1 pre-installed on unit)\
Inner cover plate ×1 set (1 set pre-installed on unit)\
Lithium battery ×2\
▪️Return Speed Adjustment…10-step adjustment (0~9 / 0.06~1.00 seconds range)\
▪️Digital operation and control for fine adjustment\
Set work mode (Grind/Weld/Cut), shade level, sensitivity, and return speed digitally via the setting panel\
▪️Auto Mode included (Shade Level, Sensitivity, Return Speed)\
Auto Mode automatically sets Shade Level, Sensitivity, and Return Speed based on the work environment\
▪️The “Blue Filter” reduces glare and maintains a clear field of view, making the weld bead and molten pool edges easier to see, and performs well even during high-power welding.\
▪️Equipped with a grind mode button for one-touch switching (welding/cutting ⇔ grind mode) while worn, plus a new easy-to-operate one-touch headgear\
▪️Japan's first 3-sided auto-shading type\
\
▪️New sensation 180° panoramic wide view
Brand Name: Esco
Shading Response Speed…1/25,000 sec
Lens Size…Center: 115×85mm Both Sides: 68×35–80mm
Shading Level…(Before Shading) # 3 (After Shading) Center: Welding (WELD) Mode: #8–#14 Cutting (CUT) Mode: #4–#8 Sides: #10
Weight…Approx. 590g
Sensitivity Adjustment…8-step adjustment
4550061628645
B09S5YPBWG
Esco (Esco) #4-#14 Arc Welding Helmet (Digital/Wide) EA800PV-16
(text created at , 2025-11-12)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
65,110 JPY (Including Tax)
Stock :
2
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
