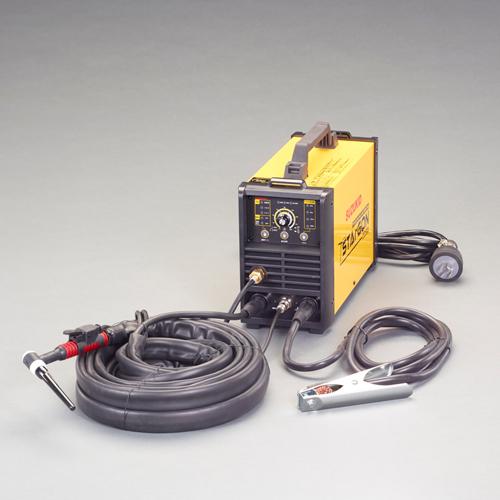

Esco Single-Phase 100/200V Inverter Pulse TIG Welder EA315SK-1

4550061628652

B09SHRH8DB

EA315SK-1

150 (W) × 390 (D) × 282 (H) mm

Esco Single-Phase 100/200V Inverter Pulse TIG Welder EA315SK-1
▪️ Input Voltage: Single-phase 100/200V
▪️ Duty Cycle: 25%
▪️ Output Current: TIG Welding: 110A (100V), 200A (200V) Stick Welding: 70A (100V), 170A (200V)
▪️Output Current…TIG Welding: 110A (100V), 200A (200V)\
Stick Welding: 70A (100V), 170A (200V)\

▪️ Frequency…50/60Hz\
▪️ Input…TIG Welding: 2.93kVA (100V), 6.36kVA (200V)\
Stick Welding: 3.0kVA (100V), 7.64kVA (200V)\
▪️ No-Load Voltage…TIG Welding: 20V\
Stick Welding: 89V\
▪️ Unit Dimensions…150(W)×390(D)×282(H)mm\
▪️ Weight…7.5kg\
▪️Accessories…TIG torch 150A approx. 8m\
Manual welding holder cable approx. 2m\
Ground clip cable approx. 3m\
Argon flow meter\
Gas hose 3m\
Hose clamps ×2\\ Torch Consumable Set (1 each): Torch Cap (Long/Short), Nozzle #5/#6, Collet 1.6/2.4, Collet Body 1.6/2.4, Cerium-coated Tungsten Electrode φ1.6/φ2.4\
▪️\
▪️ Simple operation, compact and lightweight\
▪️ TIG welding pulse function (4-step switch: 2Hz・5Hz・10Hz・20Hz)\
▪️Memory function (retains last setting except dial position when power is turned on)
Brand Name: Esco
Input Voltage…Single-phase 100/200V
Unit Size…150(W)×390(D)×282(H)mm
Duty Cycle…25%
Output Current…TIG Welding: 110A(100V), 200A (200V)
Stick Welding: 70A (100V), 170A (200V)
Frequency…50/60Hz
Input…TIG Welding: 2.93kVA (100V), 6.36kVA (200V)
Stick Welding: 3.0kVA (100V), 7.64kVA(200V)
No-load voltage…TIG welding: 20V
Stick welding: 89V
4550061628652
B09SHRH8DB
Esco (Esco) Single-Phase 100/200V Inverter Pulse TIG Welder EA315SK-1
