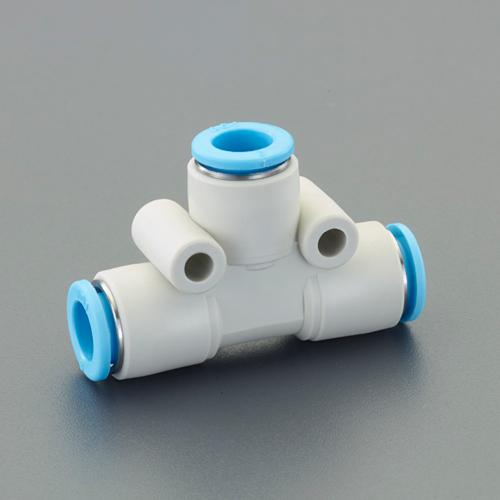

ESCO T-Type Union 12mm EA140HS-12
JAN
4550061635148
ASIN
B098SVRLXZ
Maker
Model No.
EA140HS-12
Color
Size
Description
▪️Tube Outer Diameter…φ12mm
▪️Material…Metal Parts: SUS304, Plastic Parts: PBT (V-0)
▪️Operating Pressure…0~1MPa
▪️Operating Fluid…Air/Water
▪️Operating Temperature…-15~60℃ (No freezing)▪️Minimum hole diameter…φ10mm▪️Weight (g)…31▪️Applicable Tubes…Nylon Tubes, Urethane Tubes, Ecoflex Tubes, Fluorine Tubes▪️Simply insert the tube lightly to complete installation▪️Easy removal by pulling the tube out with one hand while pressing the push ring.
▪️No tooling space required for tube attachment/detachment▪️The rotatable threaded body allows free adjustment of piping direction, facilitating installation in confined spaces.
▪️Resin parts use flame-retardant material (UL94 V-0 equivalent)▪️Threaded section coated with Teflon resin▪️No seal tape or sealant required, significantly reducing work time and labor. Eliminates leakage concerns due to work variation (uneven winding).▪️Excellent water and oil resistance.
Brand Name: Esco
4550061635148
ESCO T-Type Union 12mm EA140HS-12
(text created at , 2025-05-10)
▪️Material…Metal Parts: SUS304, Plastic Parts: PBT (V-0)
▪️Operating Pressure…0~1MPa
▪️Operating Fluid…Air/Water
▪️Operating Temperature…-15~60℃ (No freezing)▪️Minimum hole diameter…φ10mm▪️Weight (g)…31▪️Applicable Tubes…Nylon Tubes, Urethane Tubes, Ecoflex Tubes, Fluorine Tubes▪️Simply insert the tube lightly to complete installation▪️Easy removal by pulling the tube out with one hand while pressing the push ring.
▪️No tooling space required for tube attachment/detachment▪️The rotatable threaded body allows free adjustment of piping direction, facilitating installation in confined spaces.
▪️Resin parts use flame-retardant material (UL94 V-0 equivalent)▪️Threaded section coated with Teflon resin▪️No seal tape or sealant required, significantly reducing work time and labor. Eliminates leakage concerns due to work variation (uneven winding).▪️Excellent water and oil resistance.
Brand Name: Esco
4550061635148
ESCO T-Type Union 12mm EA140HS-12
(text created at , 2025-05-10)
