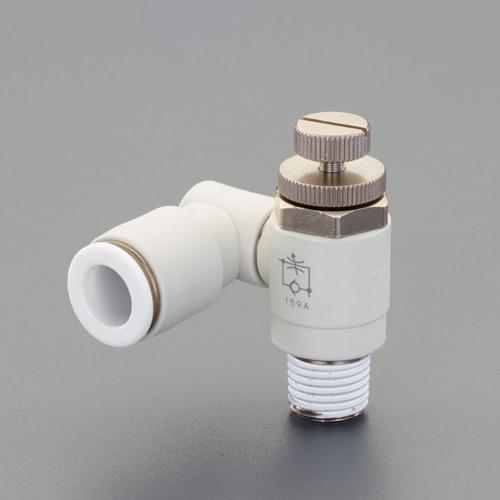

4mm x R1/8" Speed Controller (Universal)

4550061635155

B098SH5KB8

EA140HT-41

R(PT) 1/8"

ESCO-4mmxR Speed Controller - Universal - EA140HT-41

▪️Tube OD…4mm
▪️Thread Size…R(PT) 1/8”
▪️Operating Pressure…1MPa
▪️Operating Fluid…Air
▪️Operating Temperature…-15~60℃ (No freezing)
▪️Material…Metal parts: C304BD, Plastic parts: PBT (V-0)
▪️Weight (g)…23.9
▪️Applicable Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
▪️Caution…Avoid using the universal type in locations where the fitting piping section rotates constantly.
▪️Universal Type
▪️Meter-Out: Allows 360-degree free installation of piping direction.
▪️RoHS-compliant brass parts use cadmium-regulated material (content ≤75ppm)
▪️Excellent flow characteristics
▪️Tool-free one-touch fitting
▪️Teflon resin coating on threaded section
▪️White flame-retardant resin adopted
Brand Name: Esco
Tube OD: 4mm
Thread Size: R(PT) 1/8"
Working Pressure: 1MPa
Working Fluid: Air
Working Temperature: -15 to 60°C (No freezing)
4550061635155
“4mm x R1/8” “Speed Controller (Universal)”
