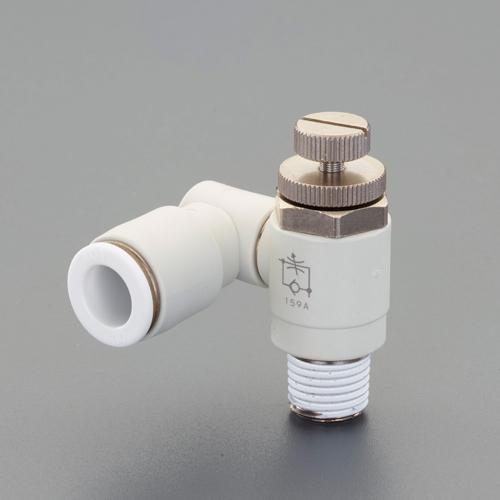

ESCO 8mm x R 1/4" Speed Controller (Universal) EA140HT-82

4550061635186

B098SLB636

EA140HT-82

R(PT) 1/4"

ESCO-8mmxR-Speed Controller-Universal-EA140HT-82

▪️Tube Outer Diameter…8mm
▪️Thread Size…R(PT)1/4”
▪️Operating Pressure…1MPa
▪️Operating Fluid…Air
▪️Operating Temperature…-15~60℃ (No freezing)
▪️Material…Metal parts: C304BD, Plastic parts: PBT (V-0)
▪️Weight (g)…53.2
▪️Applicable Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
▪️Caution…Avoid using the universal type in locations where the fitting piping section rotates constantly.
▪️Universal Type
▪️Meter-Out: Allows 360-degree free installation of piping direction.
▪️RoHS-compliant brass parts use cadmium-regulated material (content ≤75ppm)
▪️Excellent flow characteristics
▪️Tool-free one-touch fitting
▪️Teflon resin coating on threaded section
▪️White flame-retardant resin adopted
Brand Name: Esco
Tube OD: 8mm
Thread Size: R(PT) 1/4"
Working Pressure: 1MPa
Working Fluid: Air
Working Temperature: -15 to 60°C (No freezing)
4550061635186
Esco 8mm x R 1/4" Speed Controller (Universal) EA140HT-82
