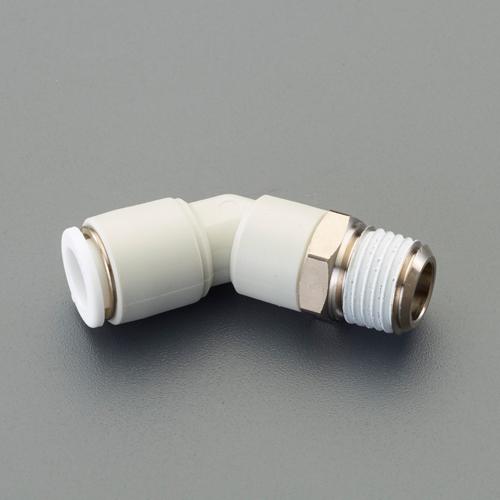

Esco 6mm x R 1/4" Elbow 45° EA140HV-62
JAN
4550061635261
ASIN
B09SHQYZWG
Maker
Model No.
EA140HV-62
Color
Size
Description
▪️Tube Outer Diameter…6mm
▪️Material…Metal Parts: C3604BD, Plastic Parts: PBT (V-0)
▪️Operating Pressure…1MPa
▪️Operating Fluid…Air/Water
▪️Operating Temperature…Air: -15~60℃ (No freezing)
Water: 5~40℃
▪️Minimum hole diameter…φ4mm
▪️Weight (g)…17
▪️Applicable Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
▪️Installation is complete simply by lightly inserting the tube
▪️Removal is easy: just press the push ring and pull the tube out with one hand.
▪️ No tooling space required for tube attachment/detachment
▪️ The rotatable threaded body allows free adjustment of pipe direction, facilitating piping work in confined spaces.
▪️ Resin parts use flame-retardant material (UL94 V-0 equivalent)
▪️ RoHS compliant
Brass parts use cadmium-regulated material (content ≤75ppm)
▪️Brass parts feature electroless nickel plating for enhanced aesthetics and corrosion resistance.
▪️No seal tape or sealant required, significantly reducing work time and labor while eliminating leakage concerns due to installation inconsistencies (uneven wrapping).
▪️Excellent water and oil resistance.
▪️Connection thread…R(PT)1/4"
Brand Name: Esco
Material: Nickel
Tube OD: 6mm
Installation complete with a simple push-fit
Material: Metal parts: C3604BD, Plastic parts: PBT (V-0)
Working Pressure: 1MPa
Working Fluid: Air/Water
Working Temperature: Air: -15 to 60°C (no freezing)
Water: 5 to 40°C
Minimum Hole Diameter: φ4mm
Weight (g)…17
Applicable Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
4550061635261
Esco 6mm x R 1/4" Elbow 45° EA140HV-62
(text created at , 2025-05-10)
▪️Material…Metal Parts: C3604BD, Plastic Parts: PBT (V-0)
▪️Operating Pressure…1MPa
▪️Operating Fluid…Air/Water
▪️Operating Temperature…Air: -15~60℃ (No freezing)
Water: 5~40℃
▪️Minimum hole diameter…φ4mm
▪️Weight (g)…17
▪️Applicable Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
▪️Installation is complete simply by lightly inserting the tube
▪️Removal is easy: just press the push ring and pull the tube out with one hand.
▪️ No tooling space required for tube attachment/detachment
▪️ The rotatable threaded body allows free adjustment of pipe direction, facilitating piping work in confined spaces.
▪️ Resin parts use flame-retardant material (UL94 V-0 equivalent)
▪️ RoHS compliant
Brass parts use cadmium-regulated material (content ≤75ppm)
▪️Brass parts feature electroless nickel plating for enhanced aesthetics and corrosion resistance.
▪️No seal tape or sealant required, significantly reducing work time and labor while eliminating leakage concerns due to installation inconsistencies (uneven wrapping).
▪️Excellent water and oil resistance.
▪️Connection thread…R(PT)1/4"
Brand Name: Esco
Material: Nickel
Tube OD: 6mm
Installation complete with a simple push-fit
Material: Metal parts: C3604BD, Plastic parts: PBT (V-0)
Working Pressure: 1MPa
Working Fluid: Air/Water
Working Temperature: Air: -15 to 60°C (no freezing)
Water: 5 to 40°C
Minimum Hole Diameter: φ4mm
Weight (g)…17
Applicable Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
4550061635261
Esco 6mm x R 1/4" Elbow 45° EA140HV-62
(text created at , 2025-05-10)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
329 JPY (Including Tax)
Stock :
10
Scheduled Shipping:
2026-07-14
Quantity :
Reference Price from Other Stores
