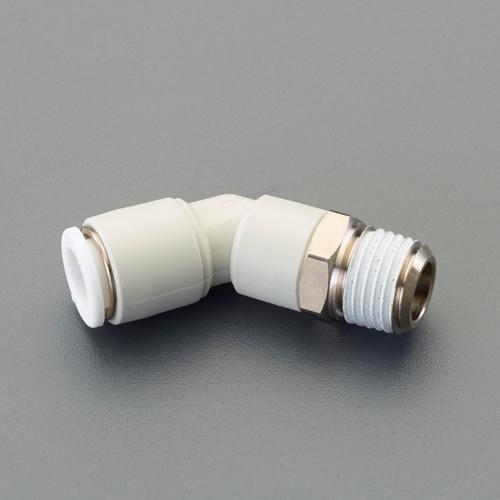

Esco 10mm x R 3/8" Elbow 45° EA140HV-103
JAN
4550061635285
ASIN
B09SHNQNS1
Maker
Model No.
EA140HV-103
Color
Size
Description
Esco-10mmxR-Elbow-EA140HV-103
▪️Tube OD…10mm
▪️Material…Metal parts: C3604BD, Plastic parts: PBT (V-0)
▪️Working pressure…1MPa
▪️Fluid Compatibility…Air・Water
▪️Operating Temperature…Air:-15~60℃(No freezing)
Water:5~40℃
▪️Minimum Hole Diameter…φ8mm
▪️Weight(g)…31
▪️Compatible Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
▪️ Installation complete with a simple push-fit connection
▪️ Easy removal by pulling the tube out with one hand while pressing the push ring.
▪️ No tooling space required for tube attachment/detachment
▪️ The rotatable threaded body allows free adjustment of piping direction, facilitating installation in confined spaces.
▪️ Resin parts use flame-retardant material (UL94 V-0 equivalent)
▪️RoHS compliant
Brass parts use cadmium-regulated material (content ≤75ppm)
▪️Brass sections feature electroless nickel plating for enhanced aesthetics and corrosion resistance.
▪️No seal tape or sealant required, significantly reducing work time and labor while eliminating leakage concerns from application inconsistencies (uneven wrapping).
▪️Excellent water and oil resistance.
▪️Connection thread…R(PT)3/8"
Brand Name: Esco
Material: Brass
Tube Outer Diameter…10mm
Installation complete with a simple push-fit connection
Material…Metal parts: C3604BD, Plastic parts: PBT (V-0)
Working Pressure…1MPa
Fluid Compatibility: Air/Water
Operating Temperature: Air: -15 to 60°C (No freezing)
Water: 5 to 40°C
Minimum Hole Diameter: φ8mm
Weight (g): 31
Compatible Tubing: Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
4550061635285
Esco 10mm x R 3/8" Elbow 45° EA140HV-103
(text created at , 2025-05-11)
▪️Tube OD…10mm
▪️Material…Metal parts: C3604BD, Plastic parts: PBT (V-0)
▪️Working pressure…1MPa
▪️Fluid Compatibility…Air・Water
▪️Operating Temperature…Air:-15~60℃(No freezing)
Water:5~40℃
▪️Minimum Hole Diameter…φ8mm
▪️Weight(g)…31
▪️Compatible Tubes…Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
▪️ Installation complete with a simple push-fit connection
▪️ Easy removal by pulling the tube out with one hand while pressing the push ring.
▪️ No tooling space required for tube attachment/detachment
▪️ The rotatable threaded body allows free adjustment of piping direction, facilitating installation in confined spaces.
▪️ Resin parts use flame-retardant material (UL94 V-0 equivalent)
▪️RoHS compliant
Brass parts use cadmium-regulated material (content ≤75ppm)
▪️Brass sections feature electroless nickel plating for enhanced aesthetics and corrosion resistance.
▪️No seal tape or sealant required, significantly reducing work time and labor while eliminating leakage concerns from application inconsistencies (uneven wrapping).
▪️Excellent water and oil resistance.
▪️Connection thread…R(PT)3/8"
Brand Name: Esco
Material: Brass
Tube Outer Diameter…10mm
Installation complete with a simple push-fit connection
Material…Metal parts: C3604BD, Plastic parts: PBT (V-0)
Working Pressure…1MPa
Fluid Compatibility: Air/Water
Operating Temperature: Air: -15 to 60°C (No freezing)
Water: 5 to 40°C
Minimum Hole Diameter: φ8mm
Weight (g): 31
Compatible Tubing: Nylon Tubing, Urethane Tubing, Ecoflex Tubing, Flame-Retardant Tubing
4550061635285
Esco 10mm x R 3/8" Elbow 45° EA140HV-103
(text created at , 2025-05-11)
Package
Size (Approx.):
Size (Approx.):
- mm
Package
Weight (Approx.):
Weight (Approx.):
- g
483 JPY (Including Tax)
Stock :
10
Scheduled Shipping:
2026-07-13
